FT 3 C - Poulan Pro Front-Tine Tiller BELT GUARD AND PULLEY ASSEMBLY Parts Diagram

Front-Tine Tiller

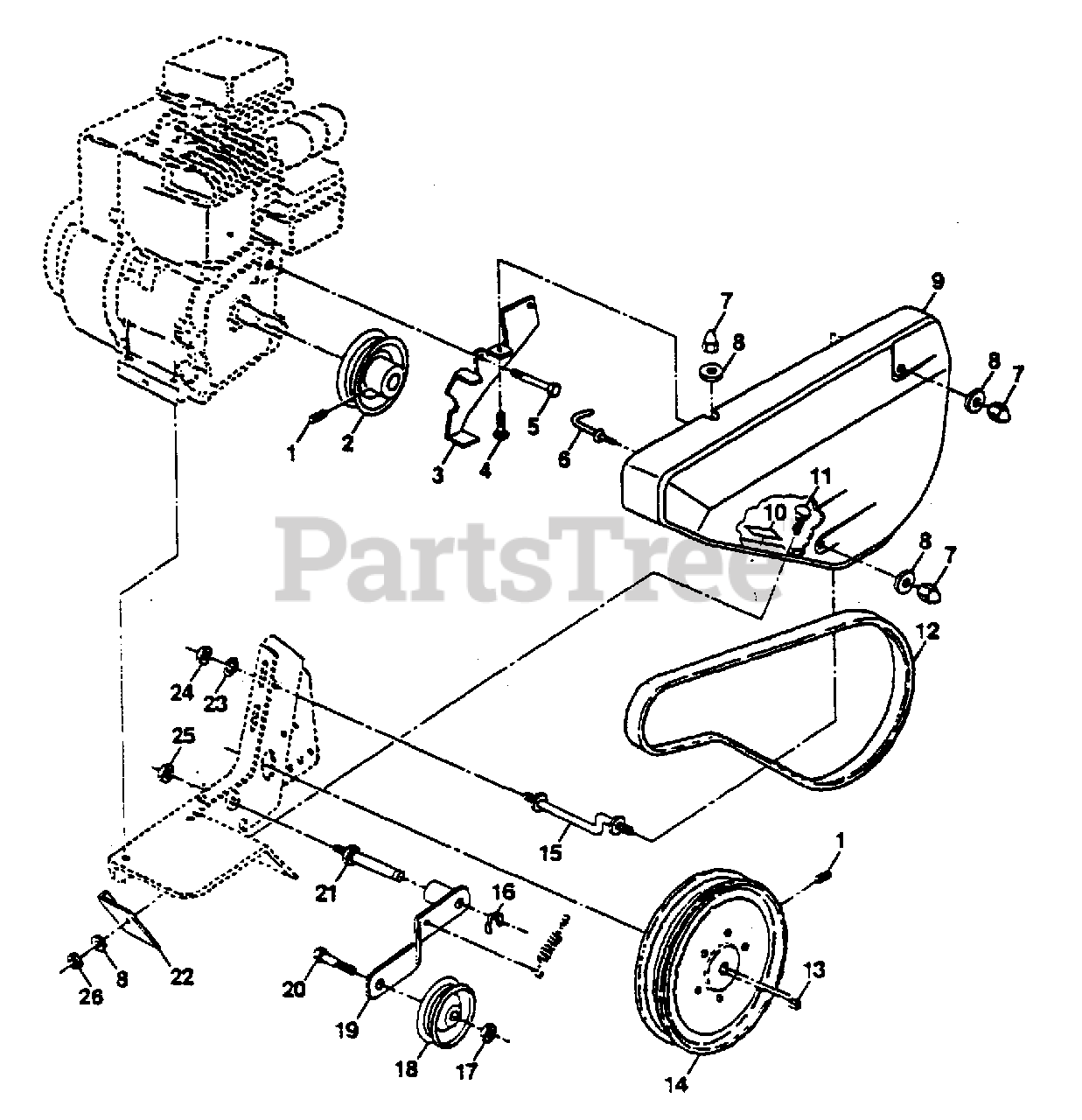

BELT GUARD AND PULLEY ASSEMBLY Parts Diagram

1

Poulan 823230506

Screw, Set, Forged Socket, Headless 5/16-18 x 3/8 (AYP part number)

$4.99

$

In Stock, only 2 left!

0

2

Poulan 532130811

Pulley, Engine

$

$

Not available

3

Poulan 532122955

Bracket Assembly, Guard, Belt (AYP part number)

$

$

Not available

4

Poulan 872140404

Bolt, Carriage 1/4-20 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 874770812

Bolt, Hex 1/2-20 x 3/4 (AYP part number)

$

$

Not available

6

Poulan 532121463

Keeper, Belt, Transmission Pulley (AYP part number)

$

$

Not available

7

Poulan 532104213

Nut, Cap 1/4-20 (AYP part number)
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 819091016

Washer 9/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

9

Poulan 532125342

Guard, Belt (AYP part number)

$

$

Not available

10

Poulan 532109227

Pad, Idler (AYP part number)

$4.99

$

In Stock, Qty 20+

0

11

Poulan 872140406

Bolt, Carriage 1/4-20 x 3/4 (AYP part number)
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 532009179

V-Belt (AYP part number)

$

$

Not available

13

Poulan 532002649

Key, Square (AYP part number)

$6.99

$

In Stock, only 1 left!

0

14

Poulan 532009174

Pulley, Transmission (AYP part number)

$

$

Not available

15

Poulan 532132213

Bolt, Belt Guard

$

$

Not available

16

Poulan 812000036

Ring, Klip (AYP part number)

$6.49

$

In Stock, only 1 left!

0

17

Poulan 873350600

Nut, Hex, Jam 3/8-16 (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Poulan 532009178

Pulley, Idler (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

19

Poulan 532124688

Idler Arm Assembly (AYP part number)

$

$

Not available

20

Poulan 874760620

Bolt, Hex 3/8-16 x 1-1/4 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 532106968

Shaft, Idler Arm (AYP part number)

$15.99

$

Usually ships in 3-10 days

0

22

Poulan 532105358

Shield, Dirt (AYP part number)

$

$

Not available

23

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

24

Poulan 873220400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

25

Poulan 873350500

Nut, Hex, Jam 5/16-18 (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

26

Poulan 873800400

Locknut, w/Insert 1/4-20 (AYP part number)
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0
