FT-24 R (21A-39M8710) - Cub Cadet Front-Tine Tiller (2012) Handle & Tine Shield FT24 Parts Diagram

Front-Tine Tiller

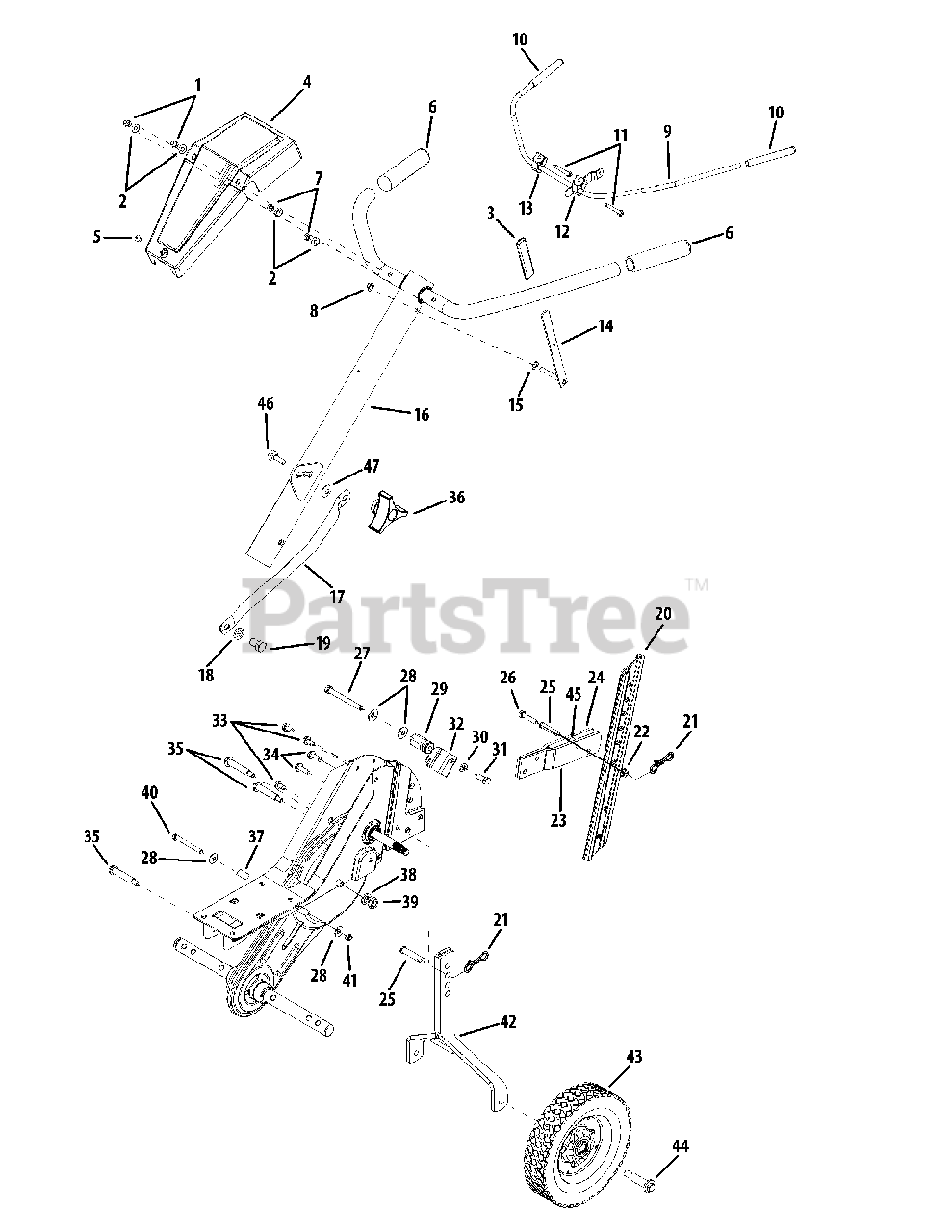

Handle & Tine Shield FT24 Parts Diagram

  • Title
1

Cub Cadet 912-0442

Acorn Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

2

Cub Cadet 936-3020

Flat Washer, .271" x.630"
(Superseded to 736-3020)

$

$

Not available

3

Cub Cadet 720-0270A

Reverse Handle Grip

$8.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-1600

Handle Cover w/o throttle (390)

Note: Model 21A-39M5010

$55.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-06253A

Handle Cover (340)
(Superseded to 731-06253B)

Note: Model 21A-34M5056

$23.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0779A

Truss Machine Screw, #10 x 1/2"

$4.49

$

In Stock, Qty 12

0

6

Cub Cadet 720-0274

Handle Grip

$11.99

$

In Stock, Qty 11

0

7

Cub Cadet 712-3006

Hex Nut, 1/4-20 (390)

Note: Model 21A-39M5010

$4.99

$

In Stock, Qty 19

0

7

Cub Cadet 912-0298

Jam Nut, 1/4-20 (340)

Note: Model 21A-34M5056

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 726-0135

Cap Speed Nut

$6.99

$

In Stock, only 1 left!

0

9

Cub Cadet 686-0083-0637

Clutch Handle Assembly

$50.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 720-0269

Clutch Grip

$4.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-0641

Hex Bolt, 1/4-20 x 2.25"

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 931-1645B

Clutch Handle Holder

$16.99

$

In Stock, only 2 left!

0

13

Cub Cadet 936-0140

Flat Washer, .385" x .62"
(Superseded to 736-0140)

$

$

Not available

14

Cub Cadet 686-0014C-0637

Reverse Handle Assembly

$21.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 936-0264

Flat Washer, .344" x .62"

$6.99

$

In Stock, only 3 left!

0

16

Cub Cadet 649-04040-4021

Handle Assembly Complete

$130.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 749-1401A-4021

Handle Brace
(Superseded to 749-1401A)

$41.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

19

Cub Cadet 710-3194

Hex Bolt, 1/2-20

$6.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

21

Cub Cadet 714-04043

Cotter Pin, Bow Tie

$4.99

$

In Stock, Qty 18

0

22

Cub Cadet 712-04063

Hex Flange L-Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 786-0003-0637

Tail Piece Bracket, Left

$23.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 786-0004-0637

Tail Piece Bracket, Right

$35.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0805

Hex Bolt, 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0189

Hex Bolt, 5/16-18 x 3"

$6.49

$

In Stock, Qty 5

0

28

Cub Cadet 736-0242

Bell Washer, .340" x .872"

$4.49

$

In Stock, Qty 20+

0

29

$17.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 936-0119

L-Washer, 5/16"

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-3008

Hex Bolt, 5/16-18

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 786-0129-0637

Cable Guide Bracket

$27.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0602

Hex Washer TT-Tap Screw

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 738-0934

Shoulder Bolt, 5/16-18
(Superseded to 738-0934A)

$7.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 720-0195

Hand Knob

$15.99

$

Usually ships in 3-6 days

0

37

$6.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

39

Cub Cadet 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0176

Hex Bolt, 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

41

Cub Cadet 912-0429

Nylon Hex Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 686-0081A-0637

Wheel Hanger Bracket Assembly

$88.99

$

In Stock, only 1 left!

0

43

Cub Cadet 734-04623

Wheel, 8 x 1.75

$48.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 738-0929

Shoulder Screw, .496 x 1.445

$7.99

$

In Stock, only 2 left!

0

45

$6.99

$

In Stock, Qty 6

0

46

Cub Cadet 710-1236

Carriage Bolt, 5/16-18 x 1

$6.99

$

In Stock, only 4 left!

0

47

Cub Cadet 736-0242

Bell Washer, .34"

$4.49

$

In Stock, Qty 20+

0
