FT-24 (21B-34M8756) - Cub Cadet Front-Tine Tiller (2015) Handle & Wheels Parts Diagram

Front-Tine Tiller

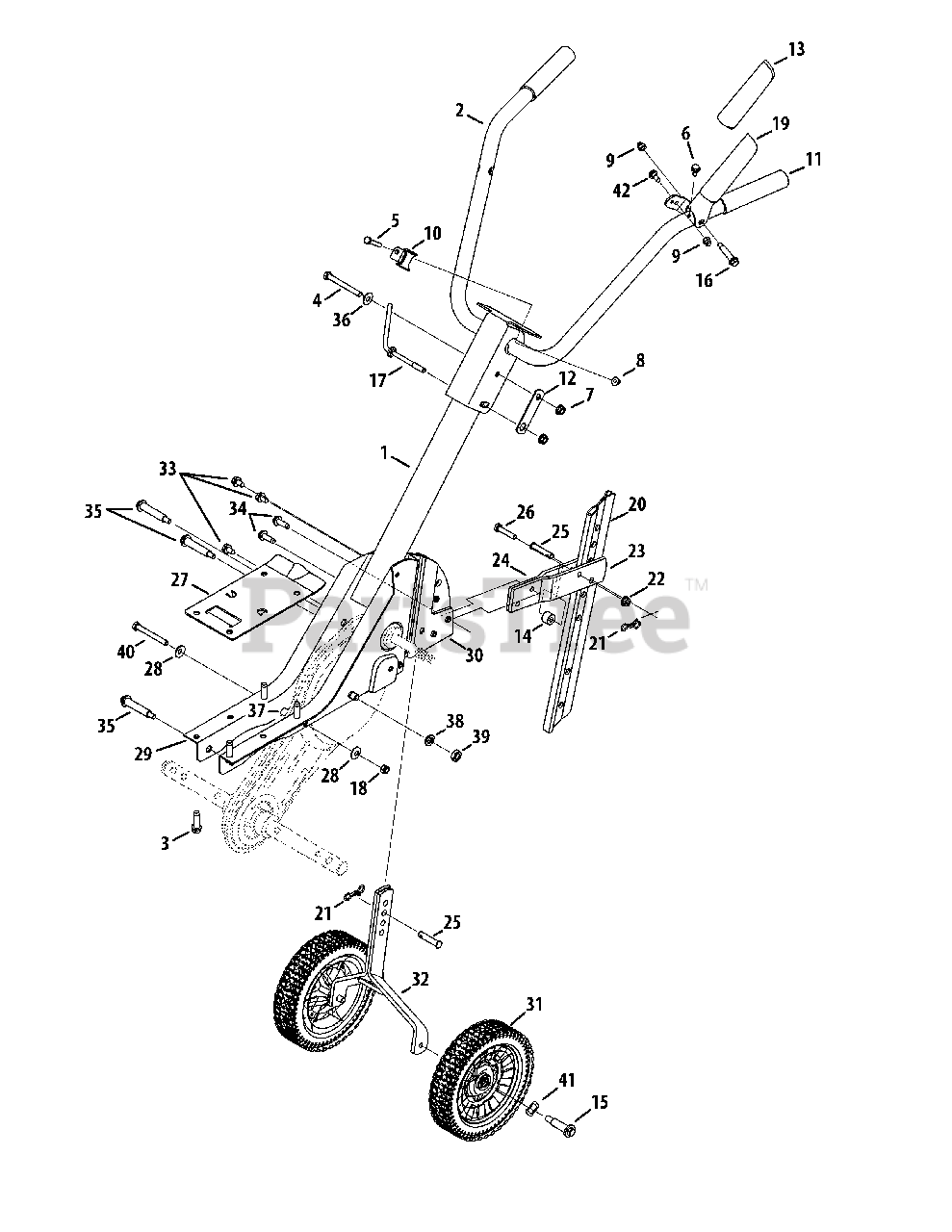

Handle & Wheels Parts Diagram

  • Title

1

Cub Cadet 649-04023-4021

Handle Tube Assembly

$51.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 649-04038A-4021

Handle Handle Assembly

$69.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0189

Hex Cap Screw, 5/16-18 x 3

$6.49

$

In Stock, Qty 5

0

5

Cub Cadet 710-0606

Hex Head Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

6

Cub Cadet 710-1017

Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

7

Cub Cadet 712-04063

Hex Flange L-Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 912-0442

Acorn Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

10

Cub Cadet 719-0279

Rope Guide

$15.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 720-0274

Grip, 1.0 x 5.0

$11.99

$

In Stock, Qty 8

0

12

Cub Cadet 786-0341

Retainer Bracket

$9.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-0473

Grip, Handle

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 750-0890

Spacer

$6.99

$

In Stock, Qty 6

0

15

Cub Cadet 738-0929

Shoulder Screw, .496 x 1.445

$7.99

$

In Stock, only 2 left!

0

16

Cub Cadet 938-1226

Shoulder Screw, .375 x 1.355, 1/4-20

$7.99

$

In Stock, only 1 left!

0

17

Cub Cadet 786-0340B

Handle Adjustment Crank

$19.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 912-0429

Nylon Hex Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 686-0002-0637

Clutch Lever Assembly

$40.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 786-0005-0637

Depth Bar

$39.99

$

In Stock, only 1 left!

0

21

Cub Cadet 714-04043

Cotter Pin, Bow Tie

$4.99

$

In Stock, Qty 12

0

22

Cub Cadet 712-04063

Hex Flange L-Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 786-0003-0637

Tail Piece Bracket, Left

$23.99

$

In Stock, only 1 left!

0

24

Cub Cadet 786-0004-0637

Tail Piece Bracket, Right

$35.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0805A

Hex Bolt, 5/16-18 x 1.5"

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 786-0145A-4021

Engine Plate

$20.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-0242

Bell Washer, .340" x .872"

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 786-0138A-4021

Frame, RH

$95.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 786-0139A-4021

Frame, LH

$94.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 734-04623

Wheel, 8 x 1.75

$48.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 686-0081A-0637

Wheel Hanger Bracket Assembly

$88.99

$

In Stock, only 1 left!

0

33

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0602

Hex Washer TT-Tap Screw

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 738-0934A

Shoulder Bolt, 5/16-18

$7.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0242

Bell Washer, .34"

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 750-0470

Spacer

$6.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

39

Cub Cadet 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0189

Hex Cap Screw, 5/16-18 x 3

$6.49

$

In Stock, Qty 5

0

41

Cub Cadet 936-0232

Wave Washer .531 x .781 x .013
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

42

Cub Cadet 938-1225

Shoulder Screw, .3175 x .188, 1/4-20
(Superseded to 738-1225)

$

$

Not available
