FT-24 (21A-395A756) - Cub Cadet Front-Tine Tiller (2008) FT 24 Tine & Drive Assembly Parts Diagram

Front-Tine Tiller

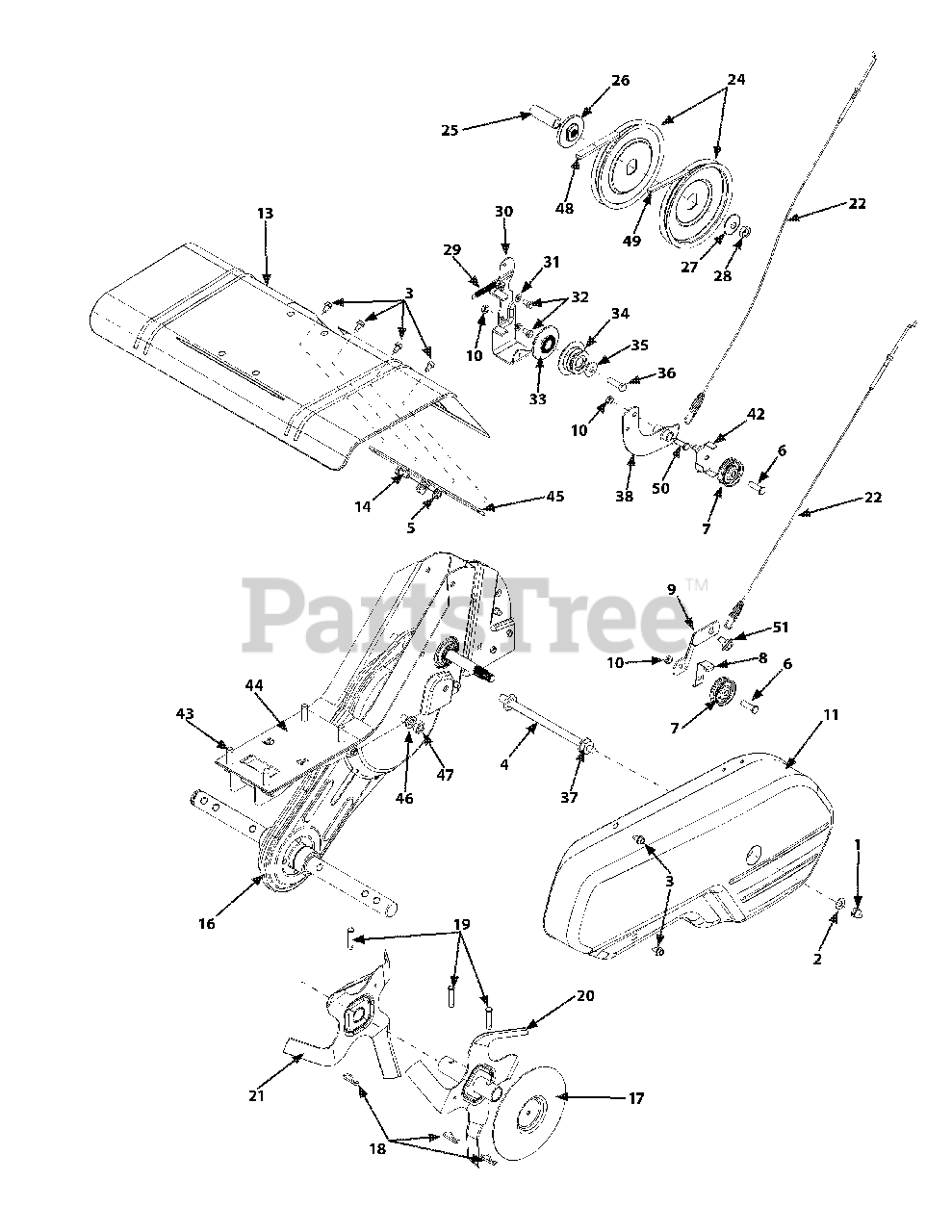

FT 24 Tine & Drive Assembly Parts Diagram

  • Title
1

Cub Cadet 712-0392

Hex L-Stop Nut, 1/4-28

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 936-3020

Flat Washer, .266" I.D. x.625" O.D.
(Superseded to 736-3020)

$

$

Not available

3

Cub Cadet 710-0599

Hex Washer TT-Tap Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0920

Belt Cover Bolt

$30.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-04063

Hex Flange Top L-Nut,5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0723

Hex Head Screw, 3/8-16 x 1.25" Lg.

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet 756-0313

Flat Idler Pulley, 2.12" O.D.

$26.99

$

In Stock, Qty 6

0

8

Cub Cadet 786-0149

Idler Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 786-0144-0637

Idler Bracket

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 912-0266

Hex Cent. Jam Nut, 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

11

$92.99

$

Usually ships in 3-6 days

0

13

$146.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-3008

Hex Head Cap Screw, 5/16-18 x.75 Lg

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 986-0091

Chain Case Assembly Complete
(Superseded to 986-0091C)

$517.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 686-0106-0637

Outer Disc Plate Assembly

$48.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 914-0149B

Internal Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

19

Cub Cadet 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 19

0

20

Cub Cadet 642-0023-0637

Outer Tine Assembly L.H.

$60.99

$

In Stock, only 3 left!

0

20

Cub Cadet 642-0024-0637

Outer Tine Assembly R.H.

$60.99

$

In Stock, only 1 left!

0

21

Cub Cadet 642-0003-0637

Inner Tine Assembly L.H.

$60.99

$

In Stock, Qty 10

0

21

Cub Cadet 642-0002-0637

Inner Tine Assembly R.H.

$60.99

$

In Stock, only 1 left!

0

22

Cub Cadet 946-0918

Forward Clutch Cable

$30.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 746-0953

Reverse Clutch Cable
(Superseded to 946-0953)

$31.99

$

In Stock, only 2 left!

0

24

Cub Cadet 756-0585

Fl-Pulley, 6" Dia.

$41.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 950-0892

Spacer, .64" Dia. x 2.4" Lg.

$11.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 948-0350

Pulley Mounting Adapter

$21.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0112

Bell-Wash, .525" I.D. x 1.5" O.D.

$9.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-3029

Hex Jam Nut,1/2-20 Thd.

$6.99

$

In Stock, Qty 6

0

29

Cub Cadet 732-0697

Return Spring

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 786-0040B-0637

Reverse Bracket

$29.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-0237

Hex Bolt, 5/16-24 x.625"

$4.49

$

In Stock, only 1 left!

0

33

Cub Cadet 756-0971

Engine Inner Half Pulley

$14.99

$

In Stock, only 1 left!

0

34

Cub Cadet 756-0600

Reverse Engine Pulley

$42.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0242

Bell Washer, .396" I.D. x 1/14" O.D.

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 710-0627

Hex Bolt, 5/16-24 x 1.00"

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 712-3004A

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 686-0013

Reverse Arm Assembly

$43.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 786-0041-0637

Reverse Belt Keeper

$8.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-0502A

Hex L-Washer TT-Tap, 3/8 -16 x 1.25"

$6.99

$

In Stock, only 2 left!

0

44

$20.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 786-0053-0637

Tine Shield Bracket

$10.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 936-0171

L-Washer, 7/16" I.D.
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

47

Cub Cadet 912-0240

Hex Nut, 7/16-20 Thd.

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 954-0428

V-Belt (Forward), 1/2 x 41.9"

$34.99

$

In Stock, only 1 left!

0

49

Cub Cadet 954-0429

V-Belt (Reverse), 3/8 x 45.68"

$28.99

$

In Stock, only 3 left!

0

50

Cub Cadet 938-0102

Shld. Screw, .498 x 1.445
(Superseded to 738-0102)

$

$

Not available

51

Cub Cadet 738-0930

Shld. Screw, .560 x.165

$6.99

$

In Stock, only 1 left!

0
