FT-24 (21A-395A756) - Cub Cadet Front-Tine Tiller (2008) FT 24 GC160A Fuel System Parts Diagram

Front-Tine Tiller

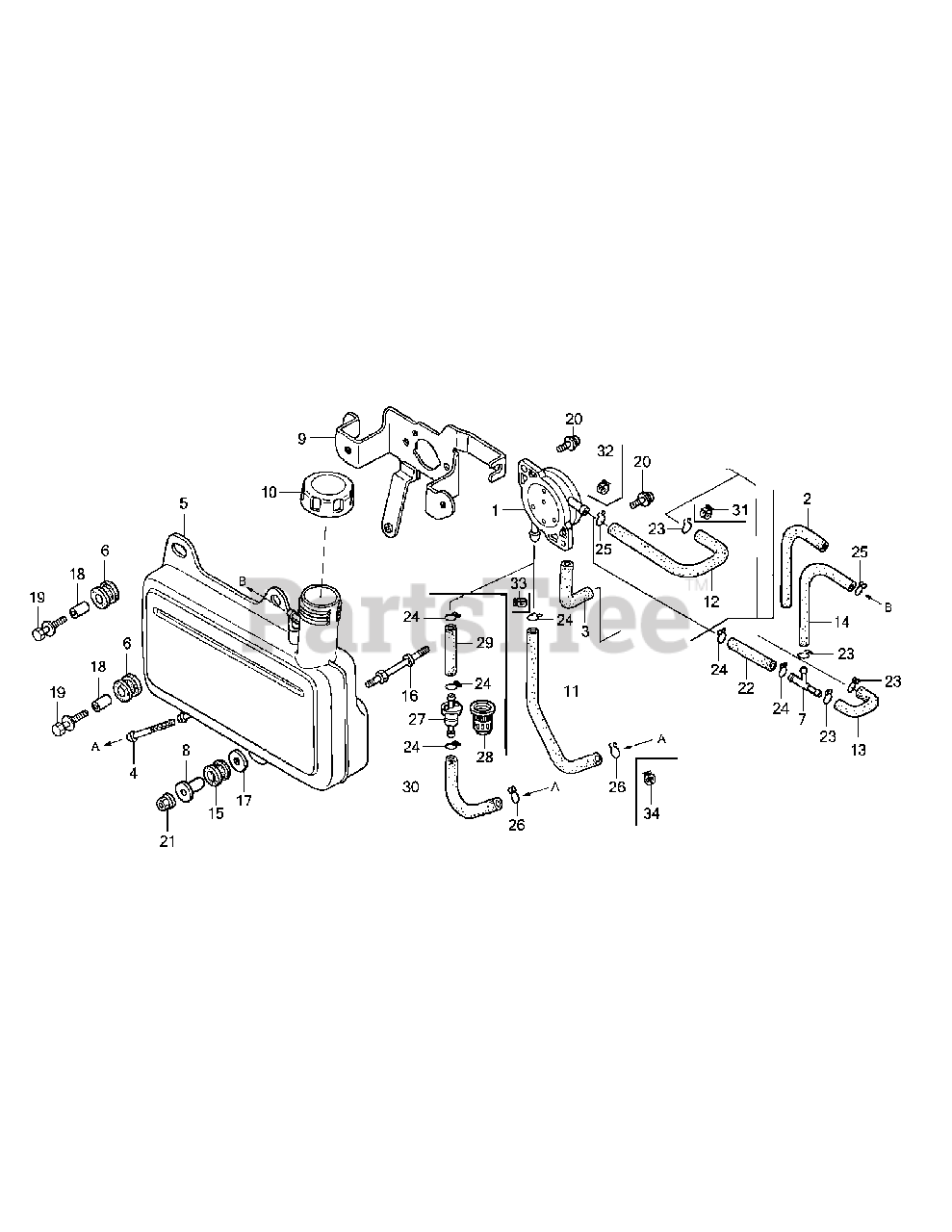

FT 24 GC160A Fuel System Parts Diagram

  • Title
1

Honda 16700-Z0J-003

Fuel Pump Assembly

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16854-ZH8-000

Supporter Rubber, 107mm

$4.99

$

In Stock, only 4 left!

0

3

Honda 16882-ZL8-000

Diaphragm Tube

$2.99

$

In Stock, Qty 20+

0

5

$46.99

$

In Stock, only 1 left!

0

6

Honda 17516-ZV0-000

Tank Mounting Rubber B

$4.49

$

In Stock, only 2 left!

0

7

Honda 17519-ZL8-800

Fuel Tube Joint

$17.99

$

Usually ships in 3-6 days

0

8

Honda 17535-KE7-000

Fuel Tank Setting Collar

$4.99

$

In Stock, only 1 left!

0

9

Honda 17561-ZL8-000

Fuel Tank Stay A

$

$

Not available

10

Honda 17620-ZL8-013

Fuel Tank Cap Assembly
(Superseded to 17620-ZL8-023)

$5.99

$

In Stock, Qty 16

0

13

$8.49

$

In Stock, only 4 left!

0

14

Honda 17703-ZL8-800

Fuel Return Tube

$6.49

$

Usually ships in 3-6 days

0

15

Honda 80103-MG2-000

RR. Fender Rubber

$4.49

$

In Stock, only 2 left!

0

16

Honda 90041-ZL8-000

Stud Bolt, F/Tank

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90473-896-000

Washer, 8MM

$2.49

$

In Stock, only 3 left!

0

18

Honda 90501-KA2-640

Collar, 14 x 6.1

$5.49

$

Usually ships in 3-6 days

0

19

Honda 93404-06025-00

Bolt-Washer, 6 x 25

$1.49

$

In Stock, only 3 left!

0

20

Honda 93894-05014-00

Screw-Washer, 5 x 14

$1.49

$

In Stock, Qty 6

0

21

Honda 94050-06000

Flange Nut, 6mm

$0.99

$

In Stock, Qty 20+

0

22

Honda 95001-55003-60M

Fuel Bulk Hose, 5.5 x 300/5.5 x 33

$70.99

$

In Stock, only 1 left!

0

23

Honda 95002-02080

Tube Clip, B8

$2.49

$

In Stock, only 4 left!

0

24

Honda 95002-02100

Tube Clip, B10

$2.49

$

In Stock, Qty 20+

0

25

Honda 95002-50000

Tube Clip, C9

$1.99

$

In Stock, Qty 20+

0

26

Honda 95002-70000

Tube Clip, C11

$2.49

$

In Stock, Qty 5

0

27

Honda 16910-ZV4-015

Fuel Filter

$18.99

$

In Stock, Qty 5

0

28

Honda 16915-ZV4-000

Strainer Suspension

$8.99

$

Usually ships in 3-6 days

0

29

Honda 17704-ZL8-800

Fuel Pump Tube

$4.49

$

Usually ships in 3-6 days

0

30

Honda 17701-ZL8-800

Fuel Tank Tube

$5.99

$

In Stock, only 1 left!

0
