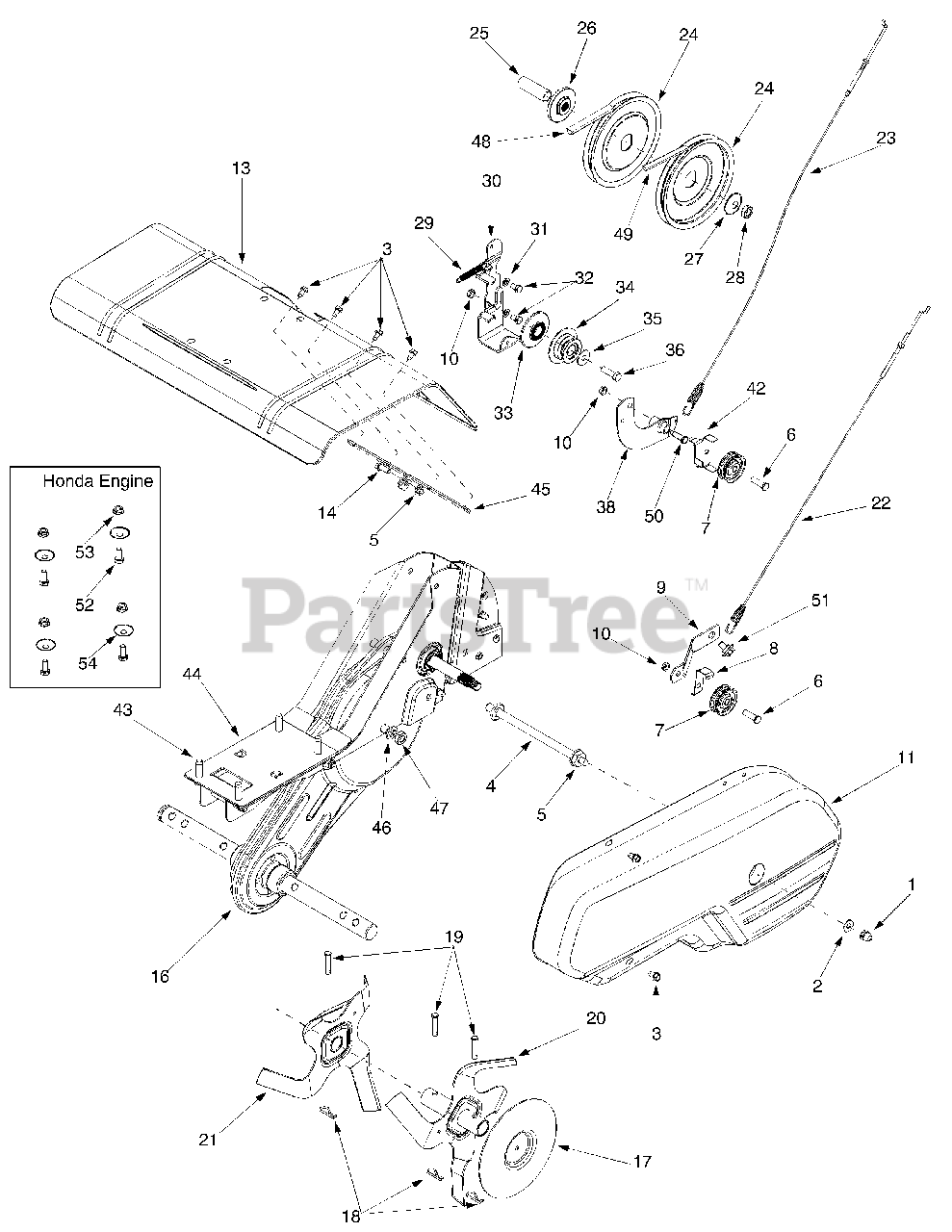

FT-24 (21A-395A756) - Cub Cadet Front-Tine Tiller (2007) Tine & Drive Parts Diagram

Front-Tine Tiller

Tine & Drive Parts Diagram

  • Title

1

Cub Cadet 712-0392

Hex L-Stop nut 1/4-28

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 736-3020

Flat Wash.266" I.D. x.625" O.D.

$6.99

$

In Stock, Qty 9

0

3

Cub Cadet 710-0599

Hex Washer TT-Tap Scr. 1/4-20 x.5"

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0920

Belt Cover Bolt

$30.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-04063

Hex Flange Top L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0723

Hex Hd. Scr. 3/8-16 x 1.25" Lg.

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet 756-0313

Flat Idler Pulley 2.12" O.D.

$26.99

$

In Stock, Qty 5

0

8

Cub Cadet 786-0149

Idler Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 786-0144

Idler Bracket
(Superseded to 786-0144-0637)

Variations

Cub Cadet 786-0144-0637

BRACKET-IDLER - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0266

Hex Cent. Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 786-0057

Belt Cover

Variations

Cub Cadet 786-0057-0483

COVER BELT - CHARCOAL GRAY (0483)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0498

COVER BELT - OLD CUB YELLOW (0498)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0606

COVER-BETL - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$99.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0662

COVER BELT - OYSTER GRAY (0662)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0665

COVER BELT - YARDMAN GREEN (0665)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0691

COVER BELT - BLACK JACK (0691)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0716

COVER BELT - CUB YELLOW-99 (0716)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-4021

COVER BELT - CUB YELLOW 2 (4021)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-4033

COVER-BELT - FLINT MICA (4033)

$92.99

$

Usually ships in 3-6 days

0

$80.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 786-0043A

Tine Shield

Variations

Cub Cadet 786-0043A-0638

SHIELD-TINE EXPORT - MTD/TROY-BILT RED (0638)

$146.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-4021

SHIELD-TINE EXPORT - CUB YELLOW 2 (4021)

$146.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-0606

SHIELD-TINE EXPORT - MAJESTIC ORANGE (0606)

$135.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-0648

SHIELD-TINE EXPORT - TECH GRAY (0648)

$135.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-0650

SHIELD-TINE EXPORT - RED METALLIC (0650)

$146.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-0662

SHIELD-TINE EXPORT - OYSTER GRAY (0662)

$118.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-0665

SHIELD-TINE EXPORT - YARDMAN GREEN (0665)

$118.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-0691

SHIELD-TINE EXPORT - BLACK JACK (0691)

$146.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-0716

SHIELD-TINE EXPORT - CUB YELLOW-99 (0716)

$146.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-0721

USE 786-0043A-4044 SHIELD-TIN - SEARS RED (0721)

$146.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-4033

SHIELD-TINE - FLINT MICA (4033)

$146.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0043A-4044

SHIELD-TINE EXPORT - CRAFTSMAN RED (4044)

$146.99

$

Usually ships in 3-6 days

0

$135.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-3008

Hex Hd. Cap Scr. 5/16-18 x.75" Lg

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 686-0091

Chain Case Assembly Complete
(Superseded to 986-0091C)

$517.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 686-0106

Outer Disc Plate Assembly
(Superseded to 686-0106-0637)

Variations

Cub Cadet 686-0106-0637

Disc Plate, Outer - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

19

Cub Cadet 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 642-0023

Outer Tine Assembly L.H.
(Superseded to 642-0023-0637)

Variations

Cub Cadet 642-0023-0637

Tine Assembly, Outer LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, only 3 left!

0

$60.99

$

In Stock, only 3 left!

0

20

Cub Cadet 642-0024

Outer Tine Assembly R.H.
(Superseded to 642-0024-0637)

Variations

Cub Cadet 642-0024-0637

Tine Assembly, Outer RH - POWDER BLACK (0637)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

21

Cub Cadet 642-0003

Inner Tine Assembly L.H.
(Superseded to 642-0003-0637)

Variations

Cub Cadet 642-0003-0637

Tine Assembly, Inner LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

21

Cub Cadet 642-0002

Inner Tine Assembly R.H.
(Superseded to 642-0002-0637)

Variations

Cub Cadet 642-0002-0637

Tine Assembly, Inner RH - POWDER BLACK (0637)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

22

Cub Cadet 746-0918

Forward Clutch Cable
(Superseded to 946-0918)

$30.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 746-0953

Reverse Clutch Cable
(Superseded to 946-0953)

$31.99

$

In Stock, only 2 left!

0

24

Cub Cadet 756-0585

Fl-Pulley 6" Dia.

$41.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 750-0892

Spacer.64" Dia. x 2.4" Lg.
(Superseded to 950-0892)

$11.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 748-0350

Pulley Mounting Adapter
(Superseded to 948-0350)

$21.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0112

Bell-Wash.525" I.D. x 1.5" O.D.

$9.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-3029

Hex Jam Nut 1/2-20 Thd.

$6.99

$

In Stock, Qty 6

0

29

Cub Cadet 732-0697

Return Spring

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 786-0040B

Reverse Bracket
(Superseded to 786-0040B-0637)

Variations

Cub Cadet 786-0040B-0637

BRACKET-REVERSE MT - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-0237

Hex Bolt 5/16-24 x.625"

$4.49

$

In Stock, only 1 left!

0

33

Cub Cadet 756-0971

Engine Inner Half Pulley

$14.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 756-0600

Reverse Engine Pulley

$42.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0452

Bell Washer.396" I.D. x 1/14" O.D.

$4.99

$

In Stock, Qty 5

0

36

Cub Cadet 710-1093

Hex Bolt 3/8-24 x 1.00"

$

$

Currently unavailable

38

Cub Cadet 686-0013

Reverse Arm Assembly

$43.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 786-0041

Reverse Belt Keeper
(Superseded to 786-0041-0637)

Variations

Cub Cadet 786-0041-0637

PLATE-KEEPER - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-0502A

Hex L-Wash. TT-Tap 3/8-16 x 1.25"

$6.99

$

In Stock, only 2 left!

0

44

Cub Cadet 786-0145A

Engine Plate

Variations

Cub Cadet 786-0145A-4021

PLATE-ENGINE MTG - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-0480

PLATE-ENGINE MOUNT - BRILLIANT GREEN (0480)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-0498

PLATE-ENGINE MOUNT - OLD CUB YELLOW (0498)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-0606

PLATE-ENGINE MOUNT - MAJESTIC ORANGE (0606)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-0637

PLATE-ENGINE MOUNT - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-0638

PLATE-ENGINE MOUNT - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-0662

PLATE-ENGINE MOUNT - OYSTER GRAY (0662)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-0665

PLATE-ENGINE MOUNT - YARDMAN GREEN (0665)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-0691

PLATE-ENGINE MOUNT - BLACK JACK (0691)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-0716

PLATE-ENGINE MOUNT - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-0721

USE 786-0145A-4044 PLATE-ENGI - SEARS RED (0721)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-4033

PLATE-ENGINE MTG - FLINT MICA (4033)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0145A-4044

PLATE-ENGINE MTG - CRAFTSMAN RED (4044)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 786-0053

Tine Shield Bracket
(Superseded to 786-0053-0637)

Variations

Cub Cadet 786-0053-0637

Tine Shield Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

47

Cub Cadet 712-0240

Hex Nut 7/16-20 Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 754-0428

V-Belt (Forward) 1/2 x 41.9"
(Superseded to 954-0428)

$34.99

$

In Stock, only 1 left!

0

49

Cub Cadet 754-0429

V-Belt (Reverse) 3/8 x 45.68"
(Superseded to 954-0429)

$28.99

$

In Stock, only 3 left!

0

50

Cub Cadet 738-0102

Shld. Screw.498 x 1.445

$9.99

$

In Stock, Qty 10

0

51

Cub Cadet 738-0930

Shld. Screw.560 x.165

$6.99

$

In Stock, only 1 left!

0

52

Cub Cadet 710-0805

Screw 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0
