FT-24 (21A-395A710) - Cub Cadet Front-Tine Tiller (2009) FT 24 GC160A Crankcase Cover Parts Diagram

Front-Tine Tiller

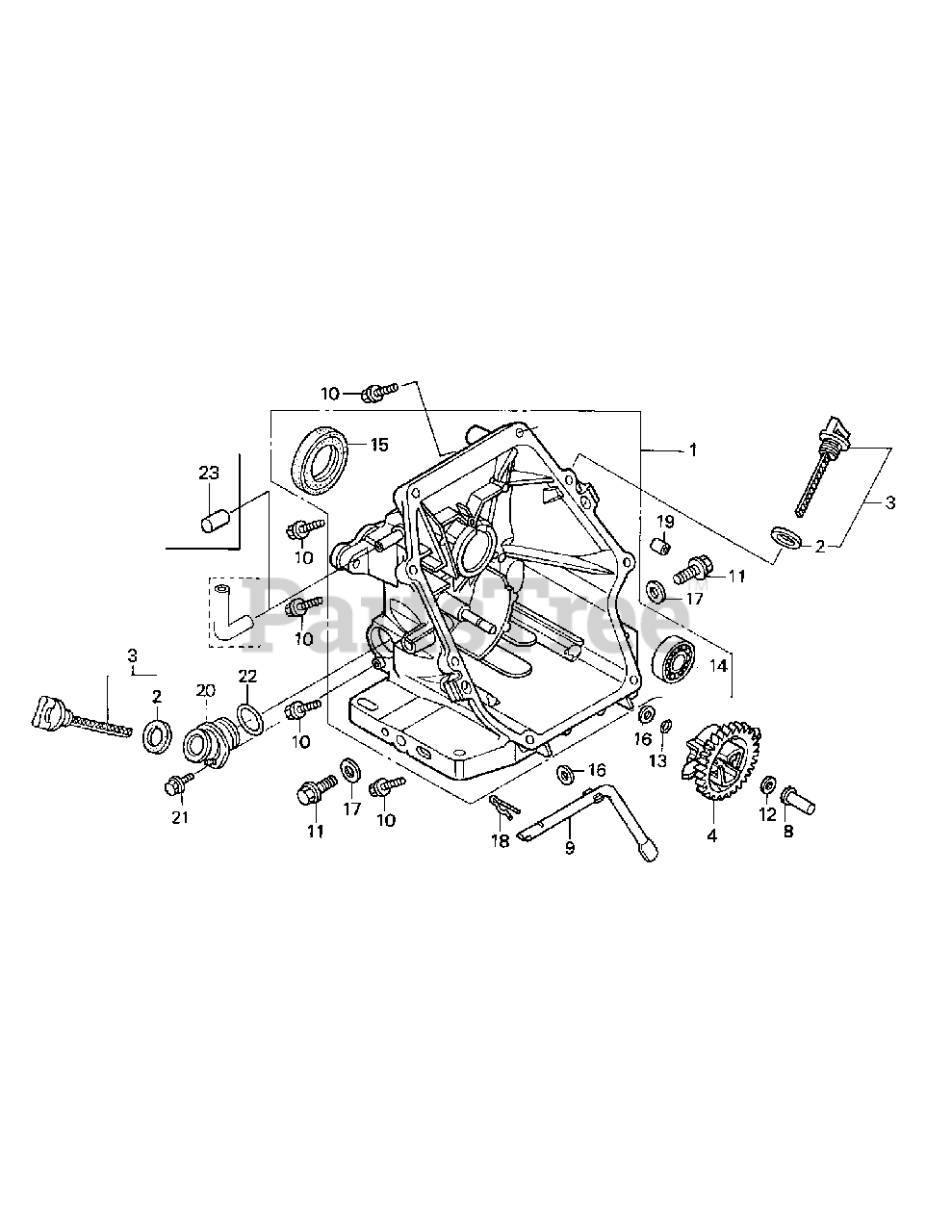

FT 24 GC160A Crankcase Cover Parts Diagram

  • Title

1

Honda 11300-ZL8-601

Crankcase Cover Assembly

$283.99

$

Usually ships in 3-6 days

0

2

Honda 15625-ZE1-003

Oil Filler Gas Cap

$3.49

$

In Stock, only 3 left!

0

3

Honda 15650-ZL8-013

Oil Level Gauge Assembly

$5.49

$

Usually ships in 3-6 days

0

4

Honda 16510-ZL8-000

Governor Assembly

$12.99

$

In Stock, only 1 left!

0

8

Honda 16531-ZE1-000

Governoe Slider

$3.49

$

In Stock, Qty 8

0

9

Honda 16541-ZL8-000

Governor Arm Shaft
(Superseded to 16541-Z8A-000)

$0.99

$

In Stock, Qty 5

0

10

Honda 90121-952-000

Flange Bolt, 6 x 25

$2.99

$

In Stock, Qty 20+

0

11

Honda 90131-896-650

Drain Plug Bolt

$5.49

$

In Stock, Qty 11

0

12

Honda 90451-ZE1-000

Thrust Washer, 6mm

$2.49

$

In Stock, only 2 left!

0

13

Honda 90602-ZE1-000

Governor Holder Clip

$1.99

$

In Stock, only 3 left!

0

15

Honda 91202-ZL8-003

Oil Seal, 28 x 41.25 x 6

$7.49

$

In Stock, Qty 16

0

16

Honda 94101-06800

Plain Washer, 6mm

$0.99

$

In Stock, Qty 20+

0

17

Honda 94109-12000

Drain Plug Washer, 12mm

$1.49

$

In Stock, Qty 20+

0

18

Honda 94251-08000

Lock Pin, 8mm

$1.99

$

In Stock, Qty 9

0

19

Honda 94301-08200

Dowel Pin, 8 x 20

$2.99

$

Usually ships in 3-6 days

0
