FT-24 (21A-395A710) - Cub Cadet Front-Tine Tiller (2009) FT 24 GC160A Carburetor Parts Diagram

Front-Tine Tiller

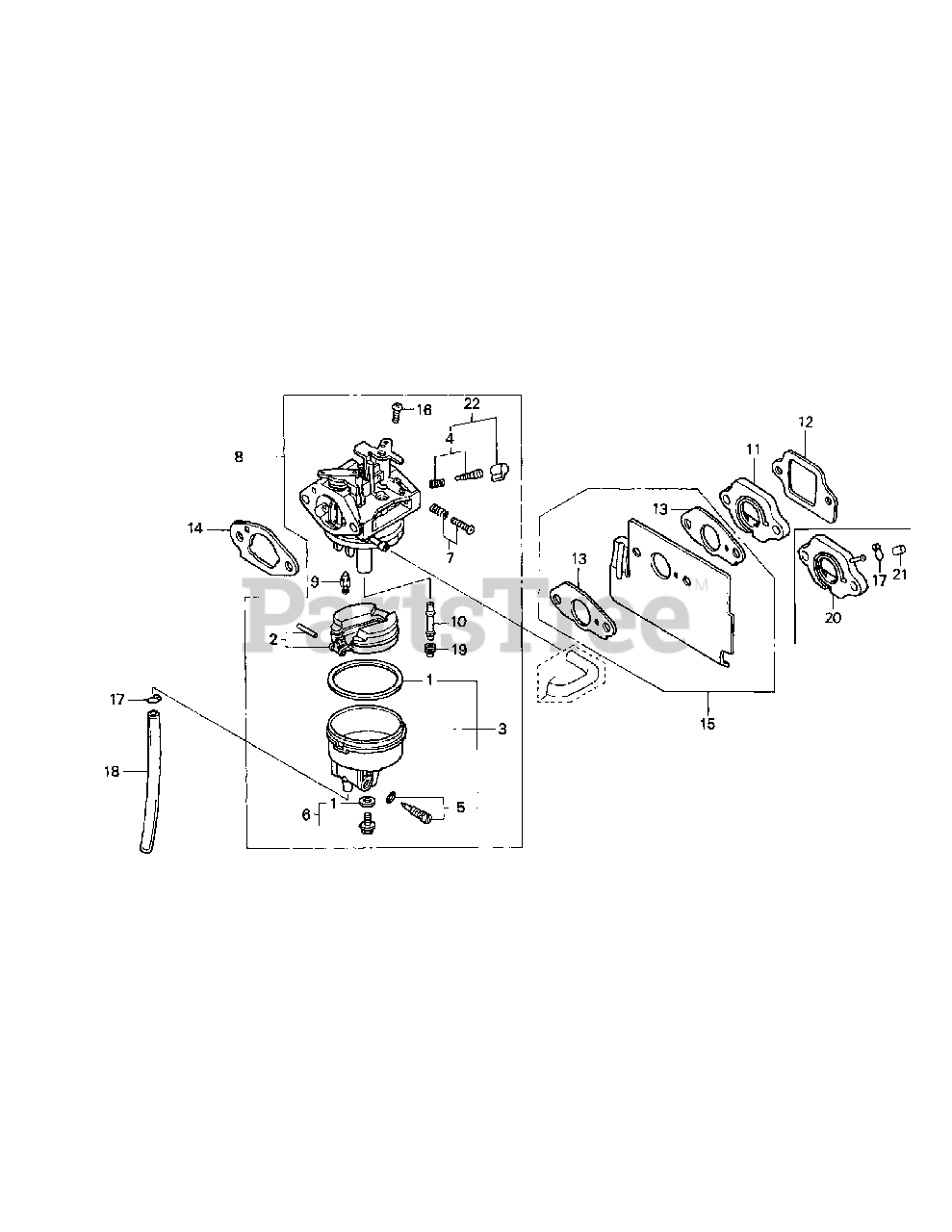

FT 24 GC160A Carburetor Parts Diagram

  • Title

1

Honda 16010-883-015

Gasket Set

$13.99

$

In Stock, Qty 14

0

2

Honda 16013-ZL1-003

Float Set

$33.99

$

In Stock, only 2 left!

0

3

Honda 16015-ZL8-003

Float Chamber Set

$35.99

$

Usually ships in 3-6 days

0

5

Honda 16024-124-760

Drain Screw Set

$15.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZE0-005

Screw Set B
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

Screw Set

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 16100-ZL8-802

Carburetor Assembly, BB61B C
(Superseded to 16100-Z0J-013)

$45.99

$

In Stock, only 3 left!

0

8

Honda 16100-ZL8-803

Carburetor Assembly, BB61B D
(Superseded to 16100-Z0J-013)

$45.99

$

In Stock, only 3 left!

0

9

Honda 16155-ZL8-003

Float Valve, Carb. No. BB61B C

$41.99

$

Usually ships in 3-6 days

0

9

Honda 16155-ZL8-013

Float Valve, Carb. No. BB61B D

$29.99

$

Usually ships in 3-6 days

0

10

Honda 16166-ZL8-003

Main Nozzle

$25.99

$

Usually ships in 3-6 days

0

11

Honda 16211-ZL8-000

Carburetor Insulator

$4.49

$

In Stock, Qty 20+

0

12

Honda 16212-ZL8-000

Insulator Gasket

$7.99

$

In Stock, Qty 20+

0

13

Honda 16221-883-800

Carburetor Gasket

$2.99

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

Carburetor Gasket, Choke Side

$2.49

$

In Stock, Qty 20+

0

15

Honda 19650-ZL8-000

Air Guide

$12.99

$

In Stock, only 4 left!

0

16

Honda 93500-05006-0H

Pan Screw, 5 x 6

$0.99

$

In Stock, only 2 left!

0

17

Honda 95002-02650

Tube Clip, B6.5

$1.99

$

In Stock, only 4 left!

0

18

Honda 95003-07008-60M

Vinyl Bulk Hose

$36.99

$

Usually ships in 3-6 days

0

19

Honda 99101-124-0600

Main Jet, #60

$12.99

$

In Stock, Qty 5

0

19

Honda 99101-124-0620

Main Jet, #62

$11.99

$

In Stock, only 2 left!

0

19

Honda 99101-124-0650

Main Jet, #65

$13.99

$

In Stock, only 2 left!

0

22

Honda 16016-ZG0-W00

Screw Set

$13.99

$

Usually ships in 3-6 days

0
