FT-24 (21A-34M8756) - Cub Cadet Front-Tine Tiller (2013) 170-VU Cylinder Head Parts Diagram

Front-Tine Tiller

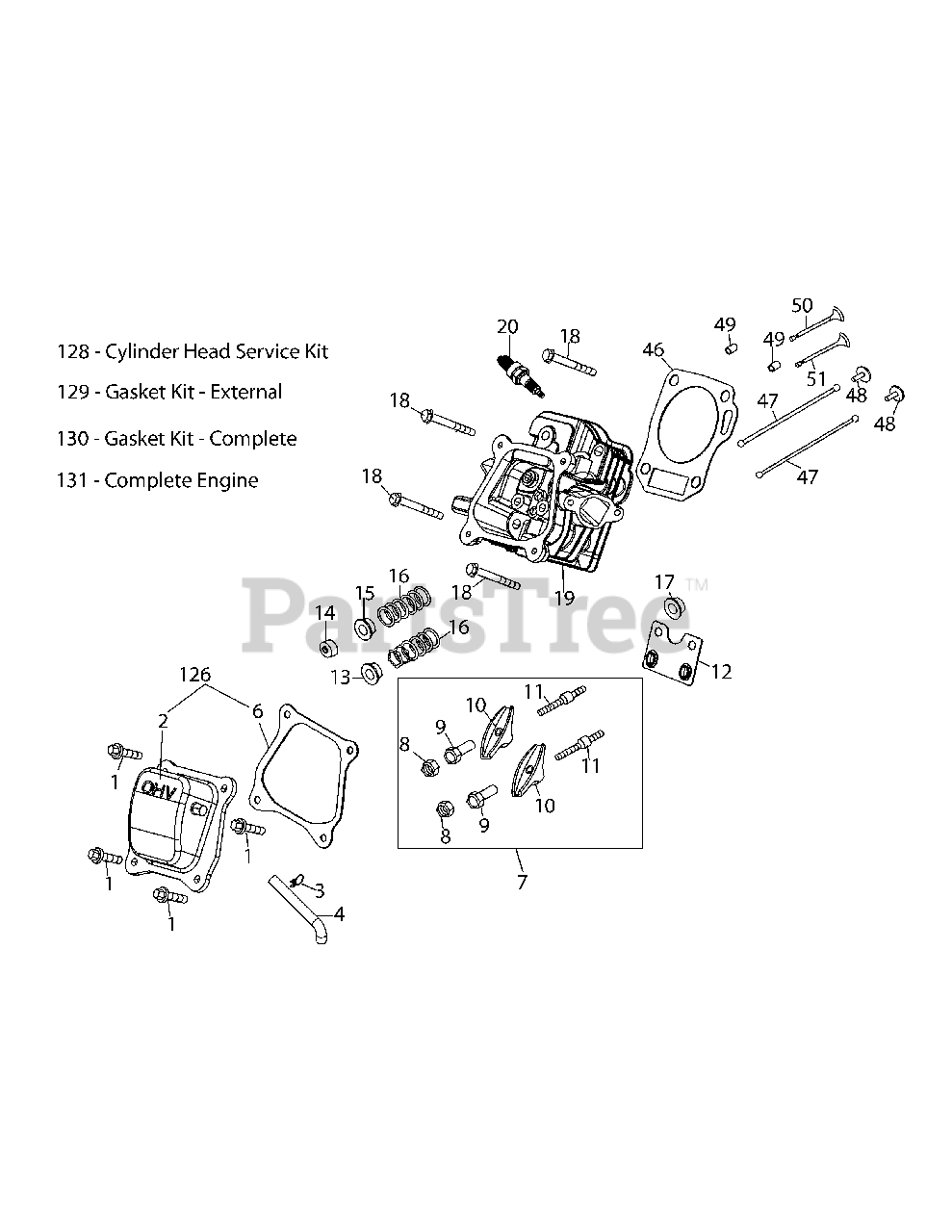

170-VU Cylinder Head Parts Diagram

  • Title
1

Cub Cadet 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

2

Cub Cadet 951-11054

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 726-04101

Breather Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-07059

Exhaust Piping

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 12

0

7

Cub Cadet 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

9

Cub Cadet 751-11123

Adjusting Nut ,Valve

$10.99

$

In Stock, only 4 left!

0

10

Cub Cadet 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04902

Bolt, Pivot

$6.99

$

In Stock, only 4 left!

0

12

Cub Cadet 951-11895

Push Rod Guide

$8.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-12000

Retainer, In.Valve Spring

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 951-12002

Adjuster, Exh Valve
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

15

Cub Cadet 951-12003

Retainer, Ex.Valve Spring

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

17

Cub Cadet 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-04933

Bolt M8×55

$3.99

$

In Stock, Qty 10

0

19

Cub Cadet 951-10722A

Cylinder Head Assembly
(Superseded to 951-10722B)

Note: (Incl 6, 8-17,19,22,29,30,46,50,51)

$170.99

$

In Stock, only 1 left!

0

20

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

46

Cub Cadet 951-11572

Gasket, Cylinder Head

$11.99

$

In Stock, Qty 18

0

47

Cub Cadet 951-10648

Push Rod Kit

$17.99

$

In Stock, only 3 left!

0

$8.49

$

In Stock, only 4 left!

0

49

Cub Cadet 715-04108

Dowel Pin 10×16

$4.49

$

In Stock, only 1 left!

0

50

$64.99

$

Usually ships in 3-6 days

0

51

$64.99

$

Usually ships in 3-6 days

0

126

Cub Cadet 951-11063A

Valve Cover Kit
(Superseded to 951-12626)

$28.99

$

Usually ships in 3-6 days

0

128

Cub Cadet 951-10819

Cylinder Head Service Kit

Note: (Incl.6,17,18,46)

$19.99

$

Usually ships in 3-6 days

0

129

Cub Cadet 951-12573

Gasket Kit - External
(Superseded to 951-12026A)

Note: (Incl.6,22,29-31,33)

$31.99

$

Usually ships in 3-6 days

0

130

Cub Cadet 951-12572

Gasket Kit - Complete

Note: (Incl.6,22,29-31,33,46,60,61,70,74,77)

$66.99

$

Usually ships in 3-6 days

0

131

Cub Cadet 952Z170-VU

Complete Engine
(Superseded to 952Z170-AUC)

$747.99

$

Usually ships in 3-6 days

0
