FT-24 (21A-34M5056) - Cub Cadet Front-Tine Tiller (2011) Chain Case & Tines FT24 Parts Diagram

Front-Tine Tiller

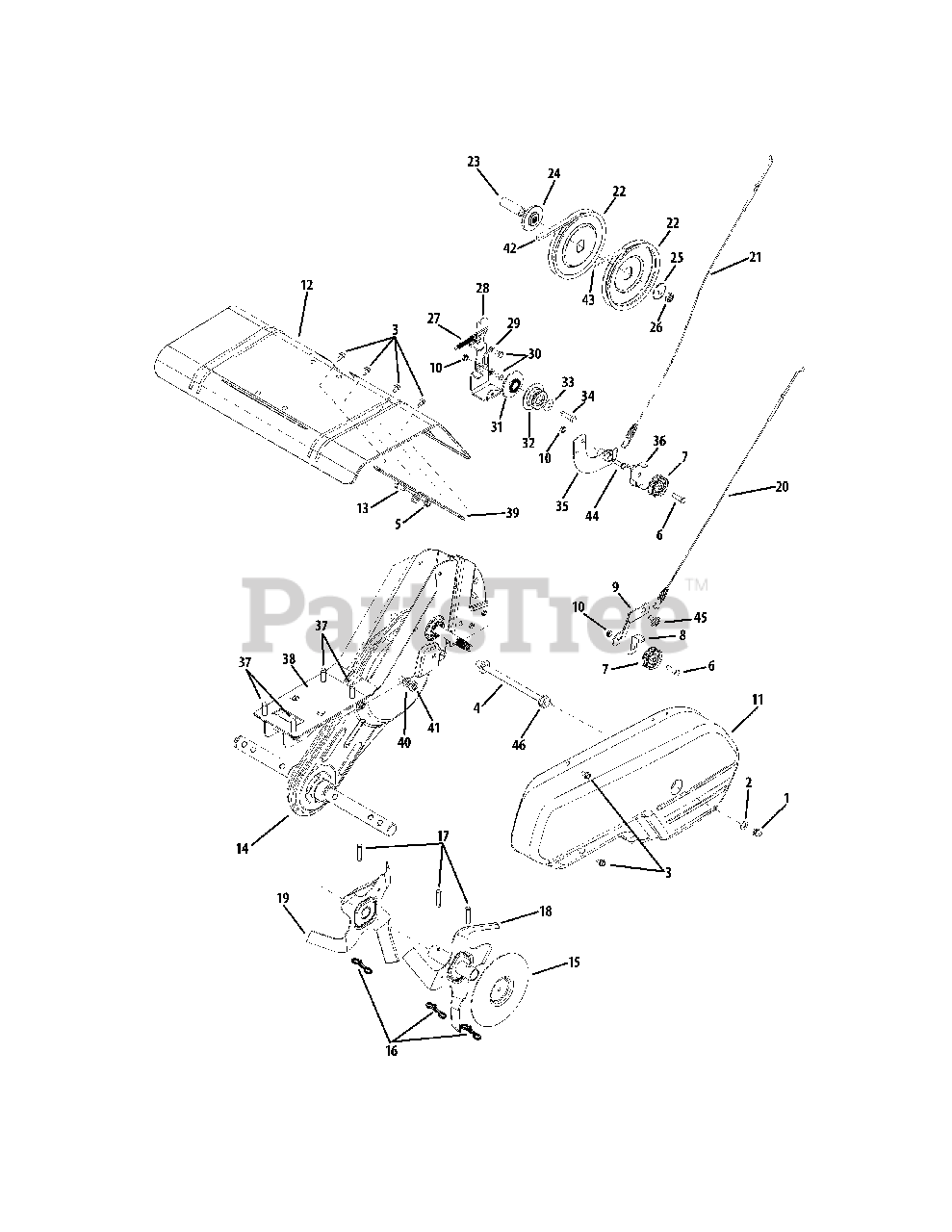

Chain Case & Tines FT24 Parts Diagram

  • Title

1

Cub Cadet 712-0392

Hex L-Stop Nut, 1/4-28

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 936-3020

Flat Washer, 266" x .625"
(Superseded to 736-3020)

$

$

Not available

3

Cub Cadet 710-0599

Hex Washer TT-Tap Screw, 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0920

Belt Cover Bolt

$30.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-04063

Hex Flange Top L-Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3005

Hex Head Screw, 3/8-16 x 1.25"

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 756-0313

Flat Idler Pulley, 2.12"

$26.99

$

In Stock, only 3 left!

0

8

Cub Cadet 786-0149

Idler Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 786-0144-0637

Idler Bracket

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0266A

Hex Center Jam Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 786-0057-4021

Belt Cover

$92.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 786-0043A-4021

Tine Shield

$146.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3008

Hex Head Cap Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 986-0091

Chain Case Assembly Complete
(Superseded to 986-0091C)

$517.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 686-0106-0637

Outer Disc Plate Assembly

$48.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 714-04043

Cotter Pin, Bow Tie

$4.99

$

In Stock, Qty 12

0

17

Cub Cadet 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 642-0023-0637

Outer Tine Assembly, Left

$60.99

$

In Stock, only 3 left!

0

18

Cub Cadet 642-0024-0637

Outer Tine Assembly, Right

$60.99

$

In Stock, only 1 left!

0

19

Cub Cadet 642-0003-0637

Inner Tine Assembly, Left

$60.99

$

In Stock, Qty 12

0

19

Cub Cadet 642-0002-0637

Inner Tine Assembly, Right

$60.99

$

In Stock, only 1 left!

0

20

Cub Cadet 946-0918

Forward Clutch Cable

$30.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 746-0953

Reverse Clutch Cable
(Superseded to 946-0953)

$31.99

$

In Stock, only 2 left!

0

22

Cub Cadet 756-0585

Flat Pulley, 6"

$41.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 950-0892

Spacer, .64" x 2.4"

$11.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 948-0350

Pulley Mounting Adapter

$21.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0112

Bell Washer, 525" x 1.5"

$9.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-3029

Hex Jam Nut, 1/2-20

$6.99

$

In Stock, Qty 6

0

27

Cub Cadet 732-0697

Return Spring

$10.99

$

In Stock, only 1 left!

0

28

Cub Cadet 786-0040B-0637

Reverse Bracket

$29.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0237

Hex Bolt, 5/16-24 x .625"

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 756-0971

Engine Inner Pulley

$14.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-0600

Reverse Engine Pulley

$42.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 936-0452

Bell Washer, .396" x 1/14"
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

34

Cub Cadet 710-1039

Hex Bolt, 3/8-24 x 1.00"

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 686-0013

Reverse Arm Assembly

$43.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 786-0041-0637

Reverse Belt Keeper

$8.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-0502A

Hex L-Washer TT-Tap, 3/8-16 x 1.25"

$6.99

$

In Stock, only 2 left!

0

38

Cub Cadet 786-0145A-4021

Engine Plate

$20.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 786-0053-0637

Tine Shield Bracket

$10.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 936-0171

L-Washer, 7/16"
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

41

Cub Cadet 912-0240

Hex Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 954-0428

Forward Drive Belt, 1/2 x 41.9"

$34.99

$

In Stock, only 1 left!

0

43

Cub Cadet 954-0429

Reverse Drive Belt, 3/8 x 45.68"

$28.99

$

In Stock, only 3 left!

0

44

Cub Cadet 938-0102

Shoulder Screw, .498 x 1.445
(Superseded to 738-0102)

$

$

Not available

45

Cub Cadet 738-0930

Shoulder Screw, .560 x.165

$6.99

$

In Stock, only 1 left!

0

46

Cub Cadet 712-3004A

Flangelock Nut, 5/16 - 18

$3.99

$

In Stock, Qty 20+

0
