FST-16 (13AR616G190) - White Outdoor 42" Lawn Tractor (1997) Electrical System Parts Diagram

42" Lawn Tractor

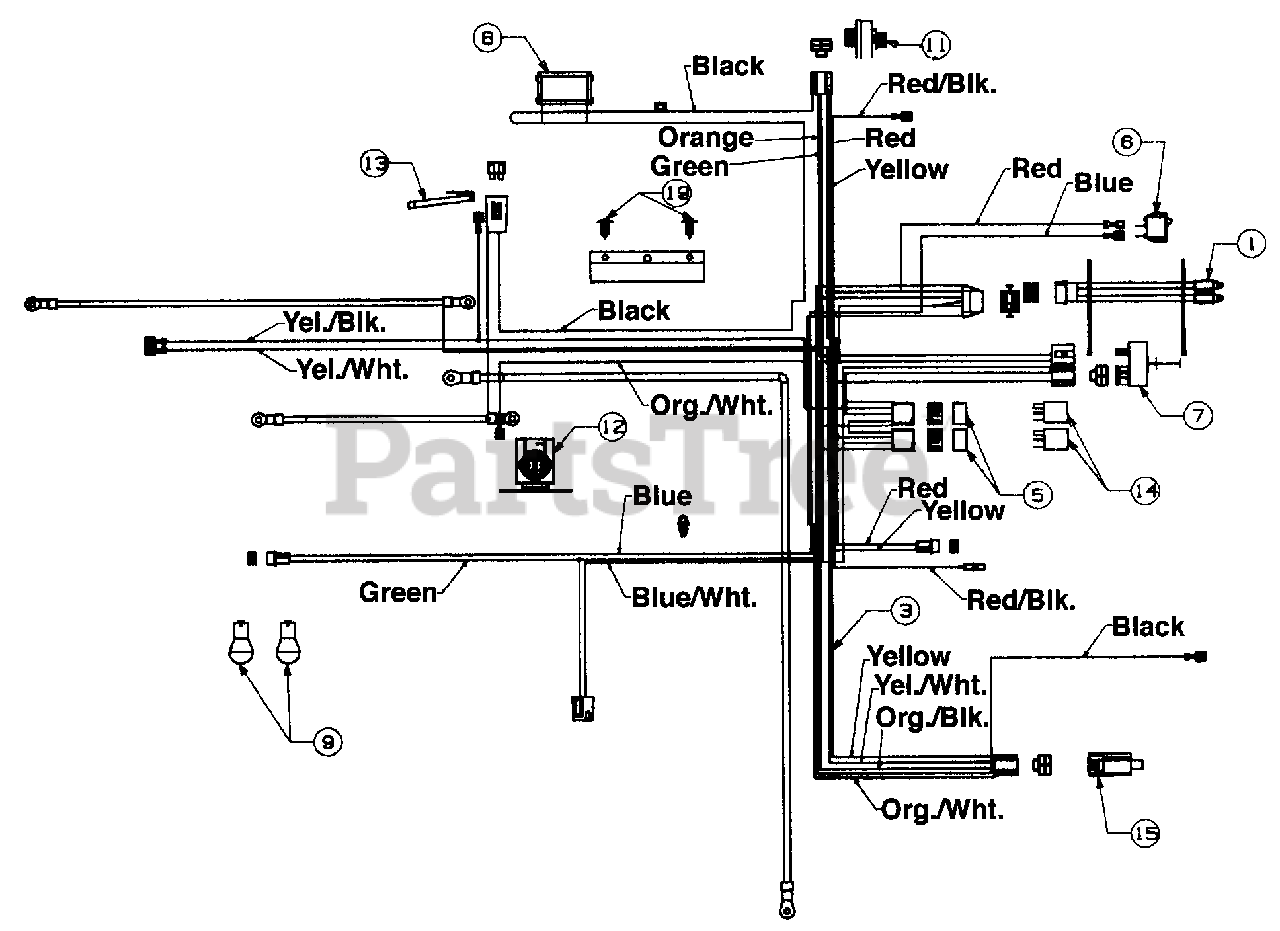

Electrical System Parts Diagram

  • Title

1

White Outdoor 629-0132

Wire Harness (Monitor)

$

$

Not available

3

White Outdoor 629-0307A

Wire Harness
(Superseded to 929-0307B)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

5

White Outdoor 721-0342

Gasket - Relay
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

6

625-0634

Light Switch

$

$

Not available

7

White Outdoor 725-0893

PTO Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

8

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

9

White Outdoor 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

11

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

12

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-1643

Safety Switch (Reverse)

$10.99

$

In Stock, only 1 left!

0

14

White Outdoor 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

15

White Outdoor 725-1657A

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

19

White Outdoor 726-3046

Ratchet

$3.99

$

In Stock, Qty 16

0

White Outdoor 725-1365

Bulb
(Superseded to 925-1365)

Note: (Monitor - Not shown)

$10.99

$

In Stock, only 1 left!

0
