FST-16 (13AR616G190) - White Outdoor 42" Lawn Tractor (1997) Brakes, Clutch, Pulleys Parts Diagram

42" Lawn Tractor

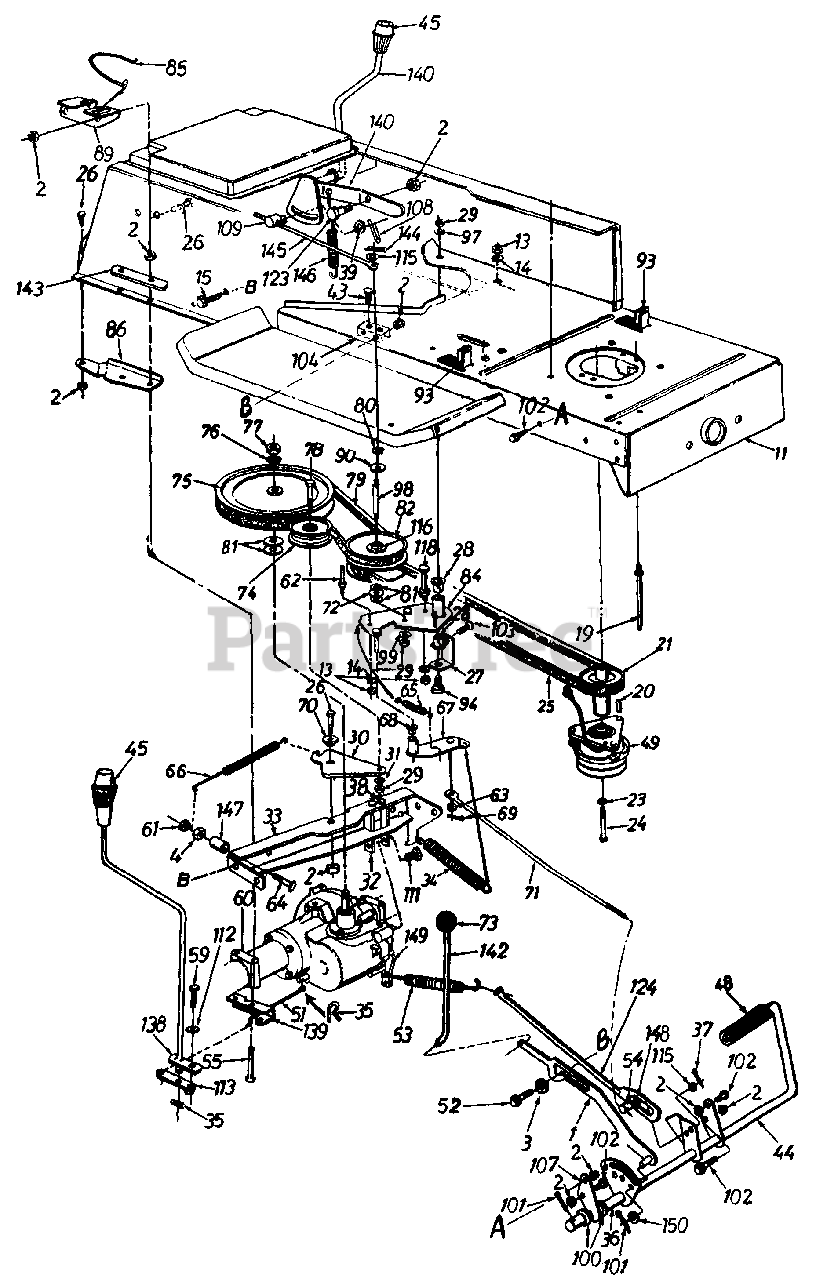

Brakes, Clutch, Pulleys Parts Diagram

  • Title

1

White Outdoor 683-0132

Parking Brake Lockout Brkt. Ass'y.

$

$

Not available

2

White Outdoor 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

3

White Outdoor 736-0406

Fl-Wash. .442" I.D. x 1.38" O.D.
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

4

White Outdoor 712-0298

Hex Nut 5/16-24 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

11

White Outdoor 783-0310B

Lower Frame Ass'y.
(Superseded to 783-0310F)

Variations

White Outdoor 783-0310B-0637

FRAME-LOWER 600 - POWDER BLACK (0637)

$159.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0310B-0665

FRAME-LOWER 600 - YARDMAN GREEN (0665)

$148.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0310B-0638

FRAME-LOWER 600 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0310B-0648

FRAME-LOWER 600 - TECH GRAY (0648)

$

$

Not available

$138.99

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

UNKNOWN

$

$

Not available

19

White Outdoor 711-1044

Belt Guard Pin
(Superseded to 711-1044A)

$8.99

$

In Stock, Qty 10

0

20

White Outdoor 714-0118

Sq. Key 1/4" x 1/4" x 1.5"

$6.99

$

In Stock, only 4 left!

0

21

White Outdoor 756-0639

Engine Pulley
(Superseded to 756-0639A)

$76.99

$

In Stock, only 1 left!

0

23

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

24

White Outdoor 710-0561

Hex Bolt 7/16-20 x 2.5" Lg.

$10.99

$

In Stock, only 1 left!

0

25

White Outdoor 754-0280

Variable Speed Belt
(Superseded to 954-0280A)

$45.99

$

In Stock, only 1 left!

0

26

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 17963

Bearing Shaft Bracket Ass'y.

$

$

Not available

28

White Outdoor 741-0419

Flanged Nyliner Brg. .63" I.D. x .6" Lg.

$

$

Not available

29

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

30

White Outdoor 17834

Idler Bracket

$

$

Not available

31

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 783-0232

U-Bracket

Variations

White Outdoor 783-0232-0637

No Longer Available BRACKET-SUPPORT U - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 783-0233

Transaxle Support Brkt.

Variations

White Outdoor 783-0233-0637

BRACKET-TRANS SUP - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 732-0556

Ext. Spring .94" O.D. x 7.58"
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

35

White Outdoor 714-0149B

Inter. Cotter Pin

$4.49

$

In Stock, Qty 18

0

36

White Outdoor 750-0802

Spacer .63" I.D.

$6.99

$

Usually ships in 3-6 days

0

37

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 710-0603

Self-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

39

White Outdoor 736-0108

FL-Wash. .51" I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

43

White Outdoor 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 683-0123

Clutch/Brake Pedal Ass'y.

Variations

White Outdoor 683-0123-0483

PEDAL-ASSY BRAKE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 683-0123-0637

PEDAL-ASSY BRAKE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0123-0638

PEDAL-ASSY BRAKE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-0123-0650

PEDAL-ASSY BRAKE - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0123-0662

PEDAL-ASSY BRAKE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 683-0123-0665

PEDAL-ASSY BRAKE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0123-0691

PEDAL-ASSY BRAKE - BLACK JACK (0691)

$

$

Not available

$

$

45

White Outdoor 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

?46

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

48

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

49

White Outdoor 717-1459

Electric Clutch
(Superseded to 917-1459)

$547.99

$

Usually ships in 3-6 days

0

51

White Outdoor 747-0774

Shift Lever Rod

$

$

Not available

52

White Outdoor 738-0296

Shld. Bolt .437"

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 732-0656

Ext. Spring 3.6"

$

$

Not available

54

White Outdoor 711-0832

Ferrule
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

55

White Outdoor 710-3056

Hex Bolt 5/16-18 x 3.25"

$10.99

$

In Stock, only 1 left!

0

59

White Outdoor 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

60

White Outdoor 618-0034

Transaxle Complete

$

$

Not available

61

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

62

White Outdoor 711-0768

Belt Guard Pin 1/4-20 Thd.
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

63

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

64

White Outdoor 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75"

$6.99

$

In Stock, Qty 13

0

65

White Outdoor 732-0568

Ext. Spring 2.59" Lg.
(Superseded to 932-0568)

$

$

Not available

66

White Outdoor 732-0428A

Ext. Spring .5" O.D. x 4.35"
(Superseded to 932-0428A)

$

$

Not available

67

White Outdoor 16554A

Variable Speed Torque Brkt. Ass'y.
(Superseded to 16554A-0637)

Variations

White Outdoor 16554A-0637

Torque Bracket Assembly - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

68

White Outdoor 741-0419

Flanged Bearing

$

$

Not available

69

White Outdoor 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, Qty 12

0

70

White Outdoor 748-0234

Shoulder Spacer .27" Lg.

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 747-0530

Speed Control Link
(Superseded to 747-0530A)

$14.99

$

Usually ships in 3-6 days

0

72

White Outdoor 741-0405

Truss Bearing .56 Dia. x 1.25"
(Superseded to 941-0405)

$

$

Not available

73

White Outdoor 720-0166

Ball Knob

$

$

Not available

74

White Outdoor 756-0437

Fl-Idler Pulley 3.25" x .75"
(Superseded to 756-0643A)

$40.99

$

In Stock, Qty 15

0

75

White Outdoor 756-0950

"V"-Pulley

$91.99

$

Usually ships in 3-6 days

0

76

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

77

White Outdoor 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

78

White Outdoor 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 11

0

79

White Outdoor 754-0370

Variable Speed Belt
(Superseded to 954-0370)

$41.99

$

Usually ships in 3-6 days

0

80

White Outdoor 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 2 left!

0

81

White Outdoor 736-0355

Fl-Wash. .56" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 717-0800A

Variable Speed Pulley Ass'y. 5" O.D.
(Superseded to 917-0800A)

Note: Code: N Notates a new part (not previously existing)

$245.99

$

In Stock, only 3 left!

0

84

White Outdoor 16354B

Variable Speed Brkt. Ass'y.

Variations

White Outdoor 16354B-0637

BRACKET ASSY-VAR S - POWDER BLACK (0637)

$

$

Not available

$

$

85

White Outdoor 732-0525

Comp. Spring - Clip

$10.99

$

In Stock, only 1 left!

0

86

White Outdoor 17668

Axle Support Brkt.- R.H.
(Superseded to 17668A-0637)

Variations

White Outdoor 17668-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17669

Axle Support Brkt.- L.H.
(Superseded to 17669A-0637)

Note: (Not shown)

Variations

White Outdoor 17669-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

89

White Outdoor 17839

Speed Cont. Rod Brkt.
(Superseded to 783-1016B)

$

$

Not available

90

White Outdoor 736-0414

Teflon Washer .565" I.D.

$4.49

$

In Stock, Qty 13

0

93

White Outdoor 725-1657A

Safety Switch (Clutch)
(Superseded to 925-1657A)

Note: Code: N Notates a new part (not previously existing)

$24.99

$

In Stock, only 4 left!

0

94

White Outdoor 738-0755

Shld. Bolt 3/8-24 x 3.12" Lg.
(Superseded to 938-0755)

$14.99

$

Usually ships in 3-6 days

0

97

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 738-0837

Shaft

$

$

Not available

99

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 20+

0

100

White Outdoor 736-0256

Fl-Wash. .64" I.D. x .94"
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

101

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

102

White Outdoor 710-0650

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

103

White Outdoor 710-0728

Hex Wash. Hd. AB-Tap Scr. .75" Lg.

$

$

Not available

104

White Outdoor 17755A

Bracket

$

$

Not available

107

White Outdoor 14624D

Pedal Bracket

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 14624D-0637

$

$

Not available

$

$

108

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

109

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

111

White Outdoor 710-0909A

Hex Wash. Tap Scr.

$10.99

$

In Stock, only 2 left!

0

112

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

113

White Outdoor 17832

Shift Lever Link Ass'y.

$

$

Not available

115

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

116

White Outdoor 741-0404

Needle Bearings

$40.99

$

In Stock, only 2 left!

0

118

White Outdoor 710-1223

Hex Bolt 1/4-20 x 3.5" Lg.
(Superseded to 02000730)

$4.99

$

Usually ships in 3-6 days

0

?119

White Outdoor 710-0427

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

123

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

124

White Outdoor 17794

Brake Rod Ass'y.

$

$

Not available

138

White Outdoor 747-0768

Shift Lever Ass'y.

$

$

Not available

139

White Outdoor 17767

Shift Lever Support Brkt.
(Superseded to 17767A)

$

$

Not available

140

White Outdoor 17768

Speed Selector Lever Ass'y.

$

$

Not available

142

White Outdoor 747-0608A

Brake Lockout Rod
(Superseded to 747-0608C)

$

$

Not available

143

White Outdoor 17840

Transaxle Mtg. Brkt.
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

144

White Outdoor 714-0474

Cotter Pin 1/8" x 3/4" Lg.

$4.99

$

In Stock, Qty 13

0

145

White Outdoor 747-0771

Speed Selector Rod

$

$

Not available

146

White Outdoor 732-0429A

Ext. Spring 3.97" Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

147

White Outdoor 750-0470

Spacer .326" I.D. x .47"

$6.99

$

Usually ships in 3-6 days

0

148

White Outdoor 736-0167

Fl-Wash. 5/8" I.D. x 1.25"
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 6

0

149

White Outdoor 717-0772A

Actuating Arm
(Superseded to 717-0772B)

$12.99

$

Usually ships in 3-6 days

0

150

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0
