FST-16 (136R616G190) - White Outdoor 42" Lawn Tractor (1996) Steering And Front Axle Assembly Parts Diagram

42" Lawn Tractor

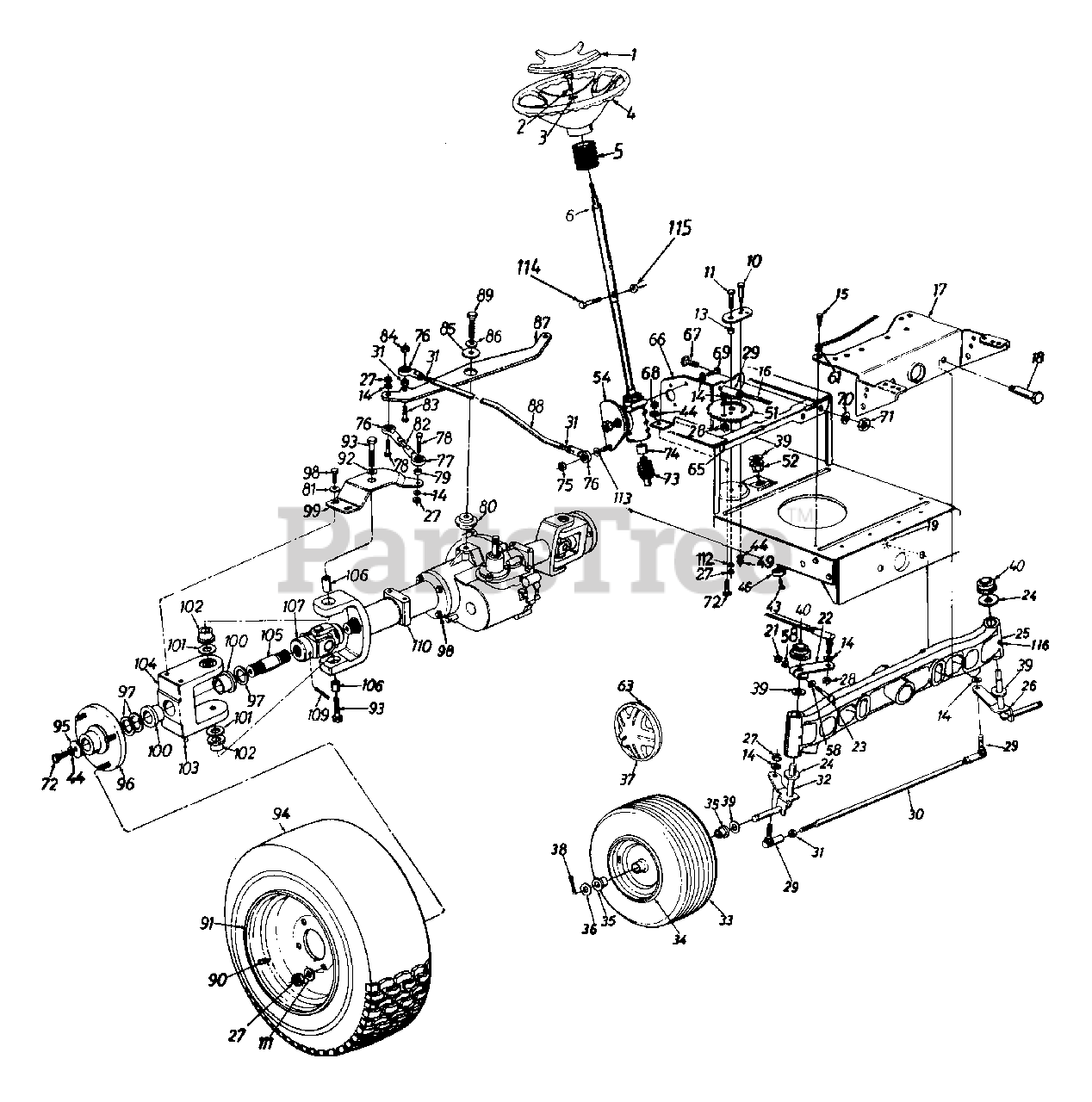

Steering And Front Axle Assembly Parts Diagram

  • Title

1

White Outdoor 731-1509

Steering Wheel Cap
(Superseded to 731-1509A)

$

$

Not available

2

White Outdoor 710-0643

Hex Patch Bolt 5/16-18 x 1" Lg.

$6.99

$

In Stock, Qty 5

0

3

White Outdoor 736-0242

Belleville Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-1686

Steering Wheel
(Superseded to 931-1686)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

5

White Outdoor 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

6

White Outdoor 738-0943

Upper Steering Shaft

Note: Code: N notates a new part (not previously existing).

$

$

Not available

?9

White Outdoor 17198A

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

10

White Outdoor 738-0141

Shoulder Bolt .437" Dia. x .35" Lg. 5/16-18 Thd.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

11

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg. (Grade 5)
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 750-0535

Spacer .380" I.D. x .625" O.D. x .227"
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 711-1068

Steering Drag Link
(Superseded to 753-0654)

Note: Code: N notates a new part (not previously existing).

$85.99

$

In Stock, only 2 left!

0

17

White Outdoor 783-0041A

Pivot Bar Brkt.
(Superseded to 783-0041C)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0041A-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0041A-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0041A-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0041A-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0041A-0648

BRACKET-PIVOT BAR - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0041A-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

18

White Outdoor 738-0527

Shoulder Bolt .498" Dia. x 2.04" Lg. 3/8-16 Thd.

$8.49

$

In Stock, Qty 6

0

19

White Outdoor 712-0431

Flanged L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0411

Hex Cent. L-Nut 5/16-24 Thd.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 683-0055

Steering Arm Front Axle
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

23

White Outdoor 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5)

$4.49

$

Usually ships in 3-6 days

0

24

UNKNOWN

$

$

Not available

25

White Outdoor 719-0342

Pivot Bar Ass'y.
(Superseded to 919-0342B)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

26

White Outdoor 683-0127

Front Axle Ass'y. - L.H.
(Superseded to 983-0127)

Note: Code: N notates a new part (not previously existing).

$101.99

$

In Stock, only 1 left!

0

27

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

28

White Outdoor 712-0446

Hex Jam Nut 3/8-24 Thd.
(Superseded to 912-0446)

$6.99

$

In Stock, only 1 left!

0

29

White Outdoor 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

30

White Outdoor 747-0753

Tie Rod

$34.99

$

In Stock, only 1 left!

0

31

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 683-0126

Front Axle Ass'y. - R.H.
(Superseded to 983-0126)

Note: Code: N notates a new part (not previously existing).

$101.99

$

In Stock, only 1 left!

0

33

White Outdoor 634-0059

Wheel Ass'y. Comp.

Variations

White Outdoor 634-0059-0911

No Longer Available WHEEL ASSY W/TIRE - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0059-0912

No Longer Available - Dico Gray (0912)

$

$

Not available

White Outdoor 634-0059-0916

No Longer Available - Kenda Gray (0916)

$

$

Not available

White Outdoor 634-0059-0931

No Longer Available WHEEL ASSY W/TIRE - Carlisle Beige (0931)

$

$

Not available

White Outdoor 634-0059-0941

No Longer Available WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 634-0059-0942

No Longer Available WHEELASM W/TIRE - Dico Yellow (0942)

$

$

Not available

$

$

White Outdoor 734-0864

Tire Only

Variations

White Outdoor 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0904

TIRE - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0905

TIRE 15 X 6 - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

34

White Outdoor 634-0051

Front Wheel Rim Only

Variations

White Outdoor 634-0051-0629

WHEEL RIM 6 X 4.5 - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 634-0051-0662

WHEEL RIM 6 X 4.5 - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 634-0051-0499

WHEEL RIM 6 X 4.5 - CUB BEIGE (0499)

$

$

Not available

White Outdoor 634-0051-0674

WHEEL RIM 6 X 4.5 - YARDMAN YELLOW (0674)

$

$

Not available

$

$

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

White Outdoor 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

35

White Outdoor 741-0569

Ball Bearing
(Superseded to 941-0569)

$34.99

$

In Stock, only 1 left!

0

36

White Outdoor 736-0285

Fl-Wash. .635" I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 734-1783

Front Hub Cap
(Superseded to 734-1783A)

$

$

Not available

White Outdoor 734-1784

Rear Hub Cap

$

$

Not available

38

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 736-0187

Fl-Wash. .640" I.D. x .24" O.D.

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

43

White Outdoor 710-1309

Pan Hd. Bolt 5/16-18 x .63" Lg.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?45

White Outdoor 736-0343

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

46

White Outdoor 748-0389

Cap
(Superseded to 948-0389)

Note: Code: N notates a new part (not previously existing).

$5.49

$

In Stock, Qty 20+

0

49

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

51

White Outdoor 717-1701

Steering Gear Segment

$

$

Not available

52

White Outdoor 741-0656

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0656A)

Note: Code: N notates a new part (not previously existing).

$5.49

$

In Stock, Qty 20+

0

54

White Outdoor 618-0114

Steering Box Ass'y. Comp.

$

$

Not available

58

White Outdoor 736-0271

Wave Wash. .32" I.D. x .62"
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

?61

White Outdoor 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

65

White Outdoor 17778A

Horizontal Cross Bracket

$

$

Not available

66

White Outdoor 783-0369

Vertical Mounting Bracket

Note: Code: N notates a new part (not previously existing).

$

$

Not available

67

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

68

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

69

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1.0" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

71

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

72

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

73

White Outdoor 717-1466

Pinion Shaft

Note: Code: N notates a new part (not previously existing).

$

$

Not available

74

White Outdoor 717-1461

Steering Shaft Splined Coupler
(Superseded to 917-1461)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

75

White Outdoor 712-0262

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

76

White Outdoor 723-0420

Rod End 3/8-24 Thd. - R.H.
(Superseded to 923-0420)

$

$

Not available

77

White Outdoor 723-0421

Rod End 3/8-24 Thd. - L.H.
(Superseded to 923-0421)

$

$

Not available

78

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

79

White Outdoor 750-0535

Spacer .38" I.D. x .625"
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

?80

White Outdoor 750-0809

Shld. Spacer .51" I.D.

$

$

Not available

81

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 747-0761

Tie Rod

$

$

Not available

83

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

84

White Outdoor 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

85

White Outdoor 736-3027

Fl-Wash. .531" I.D. x 1.75"

$

$

Not available

86

White Outdoor 736-0253

Bell-Wash. .505" I.D. x 1.0"

$3.99

$

In Stock, Qty 20+

0

87

White Outdoor 17764

Steering Boom
(Superseded to 17764-0637)

Variations

White Outdoor 17764-0637

BOOM-STEERING - POWDER BLACK (0637)

$

$

Not available

$

$

88

White Outdoor 738-0838

Steering Link

$

$

Not available

89

White Outdoor 710-3181

Hex Bolt 1/2-13 x 1.5" Lg. (Gr. 5)

$6.99

$

In Stock, only 1 left!

0

90

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

91

White Outdoor 734-1607

Rim Only

Variations

White Outdoor 734-1607-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

White Outdoor 734-1607-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 734-1607-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 734-1607-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

92

UNKNOWN

$

$

Not available

93

White Outdoor 710-1142

Hex Bolt 1/2-20 x 1.75" Lg. (Gr. 5)

$

$

Not available

94

White Outdoor 734-1668

Rear Wheel Ass'y. Comp.

Variations

White Outdoor 734-1668-0911

No Longer Available WHL ASSY - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-1668-0912

No Longer Available - Dico Gray (0912)

$

$

Not available

White Outdoor 734-1668-0941

No Longer Available WHL ASSY - Carlisle Yellow (0941)

$

$

Not available

$

$

White Outdoor 734-1596

Tire Only

Variations

White Outdoor 734-1596-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1596-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1596-0906

TIRE 20X8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1596-0901

TIRE 20 X 8 - Carlisle (0901)

$

$

Not available

White Outdoor 734-1596-0904

TIRE 20 X 8 CHENG - Cheng (0904)

$

$

Not available

$200.99

$

Usually ships in 3-6 days

0

95

White Outdoor 736-0343

Fl-Wash. .33" I.D. x 1.25"

$4.49

$

In Stock, Qty 7

0

96

White Outdoor 717-1298

Wheel Flange Ass'y.

$

$

Not available

97

White Outdoor 736-0420

Fl-Wash. 1.0" x 1.56"
(Superseded to 936-0420)

$

$

Not available

98

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

99

White Outdoor 17646

Steering Brkt. - R.H.

Variations

White Outdoor 17646-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17647

Steering Brkt. - L.H.

Note: (Not shown)

Variations

White Outdoor 17647-0637

BRACKET-STEERING-L - POWDER BLACK (0637)

$

$

Not available

$

$

100

White Outdoor 741-0558

Flange Brg. 1.0" I.D.
(Superseded to 741-04488)

$9.49

$

In Stock, Qty 20+

0

101

White Outdoor 736-0445

Fl-Wash. .76" I.D. x 1.5"

$4.49

$

In Stock, Qty 11

0

102

White Outdoor 741-0547

Flange Brg. 3/4" I.D.

$15.99

$

Usually ships in 3-6 days

0

103

White Outdoor 737-3001

Grease Fitting

$12.99

$

Usually ships in 3-6 days

0

104

White Outdoor 717-1291

Wheel Brg. Housing

$

$

Not available

105

UNKNOWN

$

$

Not available

106

White Outdoor 717-1271

Pivot Sleeve

$

$

Not available

107

White Outdoor 717-1270

U-Joint

$263.99

$

Usually ships in 3-6 days

0

109

White Outdoor 715-0208

Grooved Roll Pin 1.0" Lg.

$

$

Not available

110

White Outdoor 717-1285

Axle Horn Ass'y.

$

$

Not available

111

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

112

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

113

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

114

White Outdoor 710-0958

Hex Bolt 1/4-20 x 1.31" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

115

White Outdoor 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

116

White Outdoor 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0
