FST-16 (136R616G190) - White Outdoor 42" Lawn Tractor (1996) Muffler And Exhaust Pipe Parts Diagram

42" Lawn Tractor

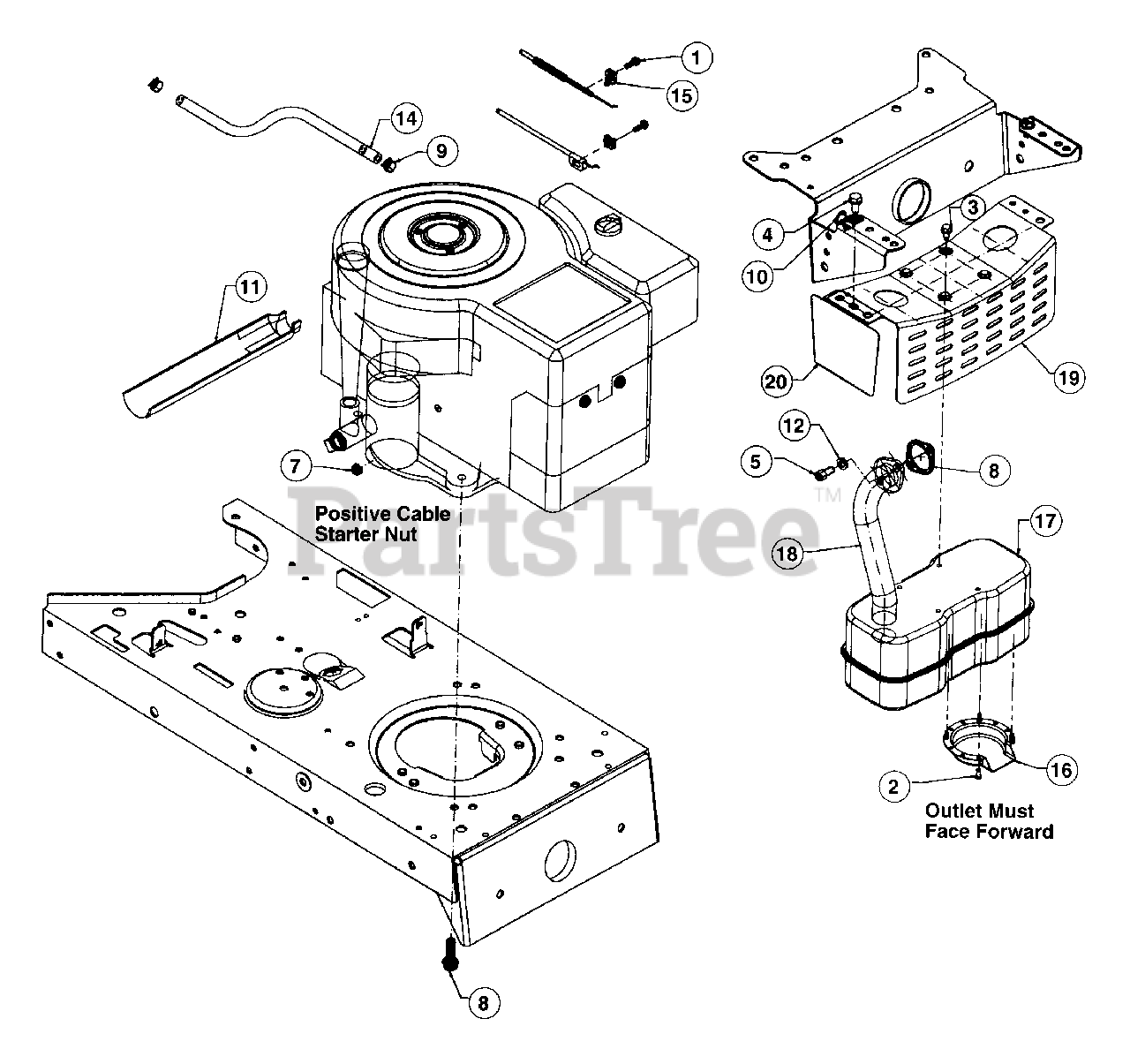

Muffler And Exhaust Pipe Parts Diagram

  • Title

1

White Outdoor 710-1237

Hex Wash. Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0148

Hex Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

3

White Outdoor 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-1314

Socket Head Scr. 5/16-18 x .62" Lg.
(Superseded to 710-1314A)

Note: Code: N notates a new part (not previously existing).

$4.49

$

In Stock, Qty 20+

0

?6

White Outdoor 710-1315

Hex Wash. TT-Tap Scr. 3/8-16 x 1.25" Lg.

Note: Code: N notates a new part (not previously existing).

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0271

Hex Sems Scr. 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 721-0208

Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

11

White Outdoor 731-1682

Oil Drain Sleeve
(Superseded to 731-1682A)

Note: Code: N notates a new part (not previously existing).

$7.99

$

In Stock, Qty 6

0

12

White Outdoor 736-0119

Lock Washer 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 751-0535-12

Fuel Line 12" Lg.
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

15

White Outdoor 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

16

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

17

White Outdoor 751-0617

Muffler
(Superseded to 951-0617C)

Note: Code: N notates a new part (not previously existing).

$149.99

$

In Stock, Qty 5

0

18

White Outdoor 751-0619

Exhaust Pipe
(Superseded to 751-0619B)

Note: Code: N notates a new part (not previously existing).

$76.99

$

In Stock, only 2 left!

0

19

White Outdoor 783-0320

Muffler Brkt.
(Superseded to 783-0615E-0637)

$64.99

$

In Stock, only 1 left!

0

20

White Outdoor 783-0385

Shield Brkt.

Note: Code: N notates a new part (not previously existing).

$

$

Not available
