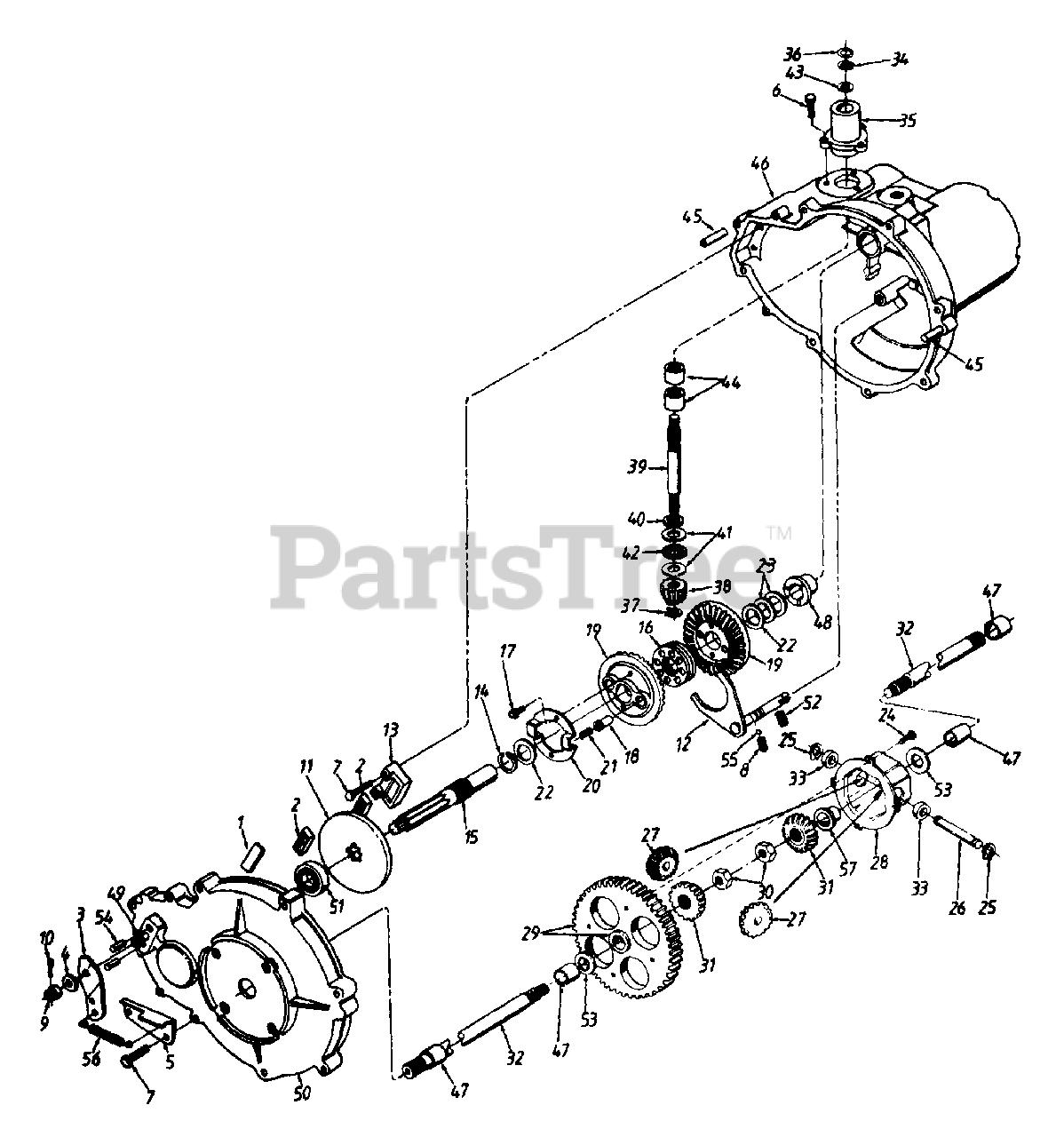

FST-15 (135R616G190) - White Outdoor 42" Lawn Tractor (1995) Transaxle Parts Diagram

42" Lawn Tractor

Transaxle Parts Diagram

  • Title

White Outdoor 618-0034

Transaxle Complete

$

$

Not available

1

White Outdoor 717-0682

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

2

White Outdoor 761-0200

Brake Puck
(Superseded to 961-0200)

$

$

Not available

3

White Outdoor 717-0772A

Actuating Arm
(Superseded to 717-0772B)

$12.99

$

Usually ships in 3-6 days

0

4

White Outdoor 736-0371

Fl-Wash. 11/32" I.D. x 7/8" O.D.

$4.49

$

In Stock, only 3 left!

0

5

White Outdoor 17841

Brake Stop Brkt.

$

$

Not available

6

White Outdoor 710-0433

Hex Bolt 1/4-20 x .62" Lg. (Special)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0809

Hex Tap Scr. 1/4-20 x 1.25" Lg.

$6.99

$

In Stock, Qty 17

0

8

White Outdoor 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

In Stock, only 1 left!

0

9

White Outdoor 712-0335

Castle Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

10

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

11

White Outdoor 718-0184

Brake Disc

$

$

Not available

12

White Outdoor 717-1102

Shifter Ass'y.

$

$

Not available

13

White Outdoor 717-1217

Brake Puck Holder

$

$

Not available

14

White Outdoor 716-0175

Retaining Ring

$

$

Not available

15

White Outdoor 717-1093

Shaft Drive

$

$

Not available

16

White Outdoor 717-1268

Shift Collar

$

$

Not available

17

White Outdoor 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 7

0

18

White Outdoor 717-1184

Drive Pin
(Superseded to 917-1184)

$18.99

$

In Stock, only 3 left!

0

19

White Outdoor 717-1275

Bevel Gear Ass'y.

Note: Incl. Ref. Nos. 17, 18, 20 and 21

$

$

Not available

20

White Outdoor 717-1269

Spring Retaining Plate

$75.99

$

Usually ships in 3-6 days

0

21

White Outdoor 732-0590

Drive Spring
(Superseded to 732-0590A)

$3.99

$

Usually ships in 3-6 days

0

22

White Outdoor 736-0444

Fl-Wash. .915" I.D. x 1.5" O.D.

$

$

Not available

23

White Outdoor 736-0454

Fl-Wash. .915" I.D. x 1.37" O.D.
(Superseded to 936-0454)

$

$

Not available

24

White Outdoor 710-0862A

Pan Hd. Scr. 1/4-20 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

25

White Outdoor 716-0184

Snap Ring
(Superseded to 916-0184)

$4.99

$

Usually ships in 3-6 days

0

26

White Outdoor 711-0918

Cross Shaft

$15.99

$

Usually ships in 3-6 days

0

27

White Outdoor 717-1020

Miter Gear 15T

$

$

Not available

28

White Outdoor 717-1252

Differential Can Assembly
(Superseded to 918-04089)

$

$

Not available

29

White Outdoor 717-1254

Differential Gear Ass'y. w/Bearing
(Superseded to 917-1254)

$

$

Not available

30

White Outdoor 712-0200A

Hex Ins. L-Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

31

White Outdoor 717-1019

Miter Gear
(Superseded to 917-1019)

$29.99

$

Usually ships in 3-6 days

0

32

White Outdoor 717-1197

Axle
(Superseded to 917-1197)

$

$

Not available

33

White Outdoor 750-0787

Differential Thrust Spacer
(Superseded to 753-0527)

$

$

Not available

34

White Outdoor 716-0171

Retainer Ring
(Superseded to 916-0171)

$5.99

$

Usually ships in 3-6 days

0

35

White Outdoor 717-1228

Input Bearing Housing

$

$

Not available

36

White Outdoor 732-0614

Wire Ring

$6.49

$

In Stock, only 1 left!

0

37

White Outdoor 716-0108

Retaining Ring

$5.49

$

Usually ships in 3-6 days

0

38

White Outdoor 717-0633

Pinion Input 14T
(Superseded to 917-0633)

$22.99

$

In Stock, only 1 left!

0

39

White Outdoor 711-0861

Input Shaft

$

$

Not available

40

White Outdoor 721-0178

Seal 5/8" I.D.
(Superseded to 921-0178)

$

$

Not available

41

White Outdoor 736-0419

Thrust Wash. .621" I.D. x 1.12"
(Superseded to 936-0419)

$5.99

$

Usually ships in 3-6 days

0

42

White Outdoor 741-0469

Thrust Bearing

$12.99

$

Usually ships in 3-6 days

0

43

White Outdoor 736-0349

Fl-Wash. 5/8" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 741-0335

Needle Brg. 5/8" x 1/2" Lg.
(Superseded to 941-0335)

$18.99

$

In Stock, only 2 left!

0

45

White Outdoor 715-0209

Dowel Pin

$

$

Not available

46

White Outdoor 717-1235

R.H. Housing

$

$

Not available

47

White Outdoor 741-0340

Sleeve Bearing 3/4" I.D.
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 8

0

48

White Outdoor 741-0548

Flange Bearing .906" I.D.

$

$

Not available

49

White Outdoor 717-0796

Sq. Head Bolt 5/16-24 Thd.

$

$

Not available

50

White Outdoor 717-1234

L.H. Housing

$

$

Not available

51

White Outdoor 741-0124

Ball Bearing .669" I.D.
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

52

White Outdoor 710-3006

Set Screw 5/16-18 x 3/8" Lg.

$4.49

$

In Stock, only 1 left!

0

53

White Outdoor 736-0445

Fl-Wash. .76" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 11

0

54

White Outdoor 741-0343

Brake Actuating Pin

$10.99

$

In Stock, Qty 7

0

55

White Outdoor 741-0862

Ball Detent

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 732-0545

Ext. Spring 1.14" Lg.
(Superseded to 932-0545)

$

$

Not available

57

White Outdoor 741-0552

Differential Flange Brg.

$

$

Not available
