FST-15 (134R616G190) - White Outdoor 42" Lawn Tractor (1994) Upper Frame & Drive Assembly Parts Diagram

42" Lawn Tractor

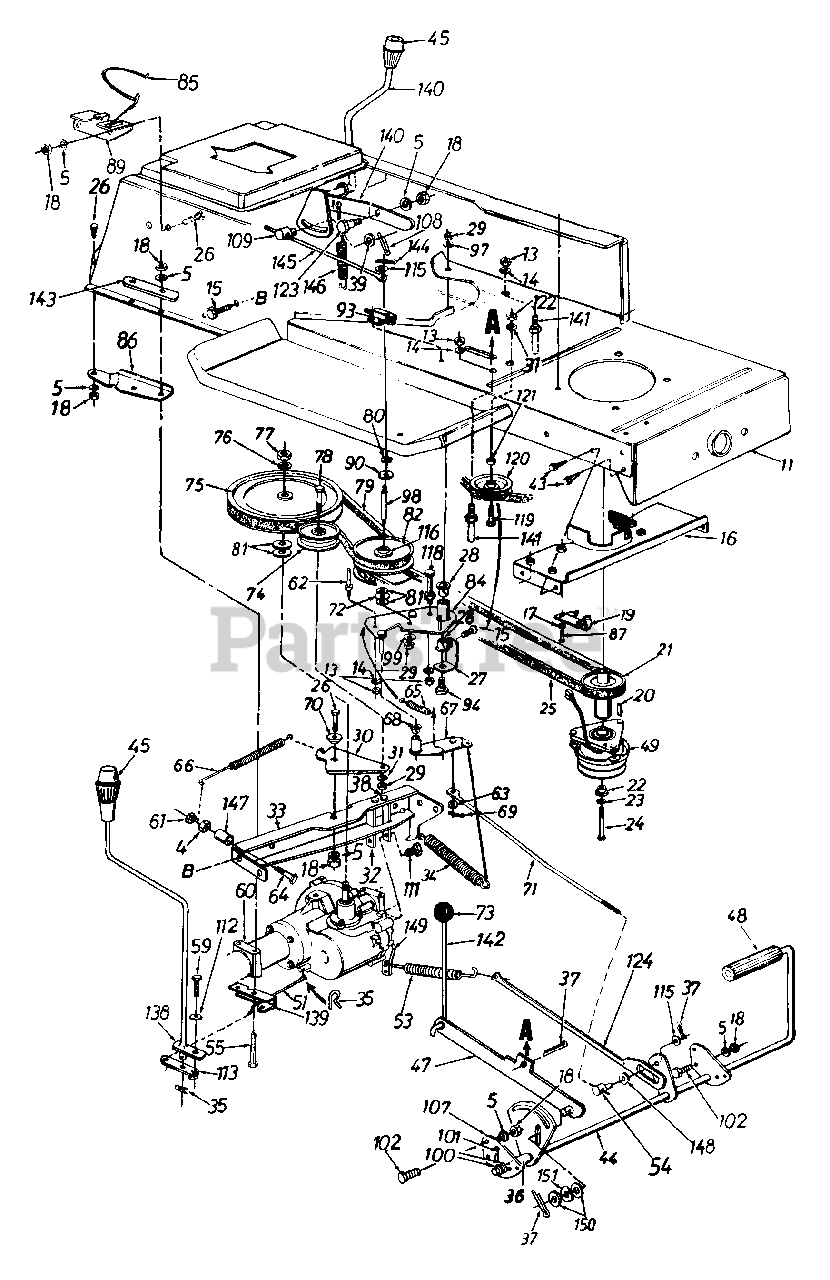

Upper Frame & Drive Assembly Parts Diagram

  • Title

4

White Outdoor 712-0298

Hex Nut 5/16-24 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 683-0065

Lower Frame Ass'y.
(Superseded to 683-0065-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 683-0065-0637

FRAME-LOWER ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 17358D

Belt Guard Brkt. Ass'y.
(Superseded to 17358D-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 17358D-0637

Belt Guard Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

19

White Outdoor 17418

Torque Bracket

Variations

White Outdoor 17418-0637

BRACKET-TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 714-0118

Sq. Key 1/4" x 1/4" x 1.5"

$6.99

$

In Stock, only 4 left!

0

21

White Outdoor 756-0641

Engine Pulley

Note: Code: N notates a new part (not previously existing).

$

$

Not available

22

White Outdoor 738-0785

Shld. Spacer .445" I.D.
(Superseded to 938-0785)

$25.99

$

In Stock, only 1 left!

0

23

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

24

White Outdoor 710-3157

Hex Bolt 7/16-20 x 3.25" Lg.
(Superseded to 710-3157A)

$10.99

$

In Stock, only 1 left!

0

25

White Outdoor 754-0280

Variable-Speed Belt
(Superseded to 954-0280A)

$45.99

$

In Stock, only 2 left!

0

26

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 17963

Bearing Shaft Bracket Ass'y.

$

$

Not available

28

White Outdoor 741-0591

Flanged Nyliner Brg. .63" I.D. x .6" Lg.

$4.49

$

In Stock, Qty 9

0

29

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

30

White Outdoor 17834

Idler Bracket

$

$

Not available

31

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 783-0232

U-Bracket

Variations

White Outdoor 783-0232-0637

No Longer Available BRACKET-SUPPORT U - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 783-0233

Transaxle Support Brkt.

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0233-0637

BRACKET-TRANS SUP - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 732-0556

Ext. Spring .94" O.D. x 7.58"
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

35

White Outdoor 714-0149B

Inter. Cotter Pin

$4.49

$

In Stock, Qty 18

0

36

White Outdoor 750-0802

Spacer .63" I.D.

$6.99

$

Usually ships in 3-6 days

0

37

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 710-0603

Self-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

39

White Outdoor 736-0108

FL-Wash. .51" I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

43

White Outdoor 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 17837

Clutch/Brake Pedal Ass'y.

$

$

Not available

45

White Outdoor 720-0218

Shift Knob

$19.99

$

In Stock, only 1 left!

0

?46

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

47

17827A

Parking Brake Lockout Brkt. Ass'y.

Note: Code: N notates a new part (not previously existing).

$

$

Not available

48

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

49

White Outdoor 717-0983

Electric Clutch
(Superseded to 917-0983)

$

$

Not available

51

White Outdoor 747-0774

Shift Lever Rod

$

$

Not available

53

White Outdoor 732-0656

Ext. Spring 3.6"

$

$

Not available

54

White Outdoor 711-0832

Ferrule
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

55

White Outdoor 710-3056

Hex Bolt 5/16-18 x 3.25"

$10.99

$

In Stock, only 1 left!

0

59

White Outdoor 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

60

White Outdoor 618-0034

Transaxle Complete

$

$

Not available

61

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

62

White Outdoor 711-0768

Belt Guard Pin 1/4-20 Thd.
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

63

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

64

White Outdoor 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75"

$6.99

$

In Stock, Qty 13

0

65

White Outdoor 732-0568

Ext. Spring 2.59" Lg.
(Superseded to 932-0568)

$

$

Not available

66

White Outdoor 732-0428A

Ext. Spring .5" O.D. x 4.35"
(Superseded to 932-0428A)

$

$

Not available

67

White Outdoor 16554A

Variable Speed Torque Brkt. Ass'y.
(Superseded to 16554A-0637)

Variations

White Outdoor 16554A-0637

Torque Bracket Assembly - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

68

White Outdoor 741-0419

Flanged Bearing

$

$

Not available

69

White Outdoor 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 2 left!

0

70

White Outdoor 748-0234

Shoulder Spacer .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

71

White Outdoor 747-0530

Speed Control Link
(Superseded to 747-0530A)

$14.99

$

Usually ships in 3-6 days

0

72

White Outdoor 741-0405

Truss Bearing .56 Dia. x 1.25"
(Superseded to 941-0405)

$

$

Not available

73

White Outdoor 720-0166

Ball Knob

$

$

Not available

74

White Outdoor 756-0437

Fl-Idler Pulley 3.25" x .75"
(Superseded to 756-0643A)

$40.99

$

In Stock, Qty 15

0

75

White Outdoor 756-0950

"V"-Pulley

$91.99

$

Usually ships in 3-6 days

0

76

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

77

White Outdoor 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

78

White Outdoor 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 11

0

79

White Outdoor 754-0370

Variable Speed Belt
(Superseded to 954-0370)

$41.99

$

Usually ships in 3-6 days

0

80

White Outdoor 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 3 left!

0

81

White Outdoor 736-0355

Fl-Wash. .56" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 12

0

82

White Outdoor 717-0800

Variable Speed Pulley Ass'y. 5" O.D.
(Superseded to 917-0800A)

$245.99

$

In Stock, only 3 left!

0

84

White Outdoor 16354B

Variable Speed Brkt. Ass'y.

Variations

White Outdoor 16354B-0637

BRACKET ASSY-VAR S - POWDER BLACK (0637)

$

$

Not available

$

$

85

White Outdoor 732-0525

Comp. Spring - Clip

$10.99

$

In Stock, only 1 left!

0

86

White Outdoor 17668

Axle Support Brkt. - R.H.
(Superseded to 17668A-0637)

Variations

White Outdoor 17668-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17669

Axle Support Brkt. - L.H.
(Superseded to 17669A-0637)

Note: Not shown

Variations

White Outdoor 17669-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

87

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

89

White Outdoor 17839

Speed Cont. Rod Brkt.
(Superseded to 783-1016B)

$

$

Not available

90

White Outdoor 736-0414

Teflon Washer .565" I.D.

$4.49

$

In Stock, only 4 left!

0

93

White Outdoor 725-1657

Safety Switch (Clutch)
(Superseded to 925-1657A)

Note: Code: N notates a new part (not previously existing).

$24.99

$

In Stock, Qty 5

0

94

White Outdoor 738-0755

Shld. Bolt 3/8-24 x 3.12" Lg.
(Superseded to 938-0755)

$14.99

$

Usually ships in 3-6 days

0

97

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 738-0837

Shaft

$

$

Not available

99

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 16

0

100

White Outdoor 736-0256

Fl-Wash. .64" I.D. x .94"
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

101

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

102

White Outdoor 710-0650

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

107

White Outdoor 17860

Pedal Bracket
(Superseded to 17860-0637)

Variations

White Outdoor 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

108

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

109

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

111

White Outdoor 710-0909A

Hex Wash. Tap Scr.

$10.99

$

In Stock, only 2 left!

0

112

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

113

White Outdoor 17832

Shift Lever Link Ass'y.

$

$

Not available

115

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

116

White Outdoor 741-0404

Needle Brgs.

$40.99

$

In Stock, only 2 left!

0

118

White Outdoor 710-1223

Hex Bolt 1/4-20 x 3.5" Lg.
(Superseded to 02000730)

$4.99

$

Usually ships in 3-6 days

0

119

White Outdoor 710-0427

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

120

White Outdoor 756-0217

Fl-Idler w/Flanges 2.75" O.D.
(Superseded to 956-0217)

$22.99

$

In Stock, only 1 left!

0

121

White Outdoor 736-0280

Fl-Wash. .39" I.D. x 1.12" O.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

122

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

123

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

124

White Outdoor 17794

Brake Rod Ass'y.

$

$

Not available

?131

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

?134

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

138

White Outdoor 747-0768

Shift Lever Ass'y.

$

$

Not available

139

White Outdoor 17767

Shift Lever Support Brkt.
(Superseded to 17767A)

$

$

Not available

140

White Outdoor 17768

Speed Selector Lever Ass'y.

$

$

Not available

141

White Outdoor 711-0747

Belt Guard Pin

$10.99

$

Usually ships in 3-6 days

0

142

White Outdoor 747-0608

Brake Lockout Rod
(Superseded to 747-0608C)

$

$

Not available

143

White Outdoor 17840

Transaxle Mtg. Brkt.
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

144

White Outdoor 714-0474

Cotter Pin 1/8" x 3/4" Lg.

$4.99

$

In Stock, Qty 14

0

145

White Outdoor 747-0771

Speed Selector Rod

$

$

Not available

146

White Outdoor 732-0429A

Ext. Spring 3.97" Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

147

White Outdoor 750-0470

Spacer .326" I.D. x .47"

$6.99

$

Usually ships in 3-6 days

0

148

White Outdoor 736-0167

Fl-Wash. 5/8" I.D. x 1.25"
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 7

0

149

White Outdoor 717-0772A

Actuating Arm
(Superseded to 717-0772B)

$12.99

$

Usually ships in 3-6 days

0

150

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

151

White Outdoor 736-0413

Wave Wash. .38" I.D. x .75"

$6.99

$

In Stock, only 2 left!

0
