FS730V-BS41 - Kawasaki Engine ELECTRIC-EQUIPMENT(BS41) Parts Diagram

Engine

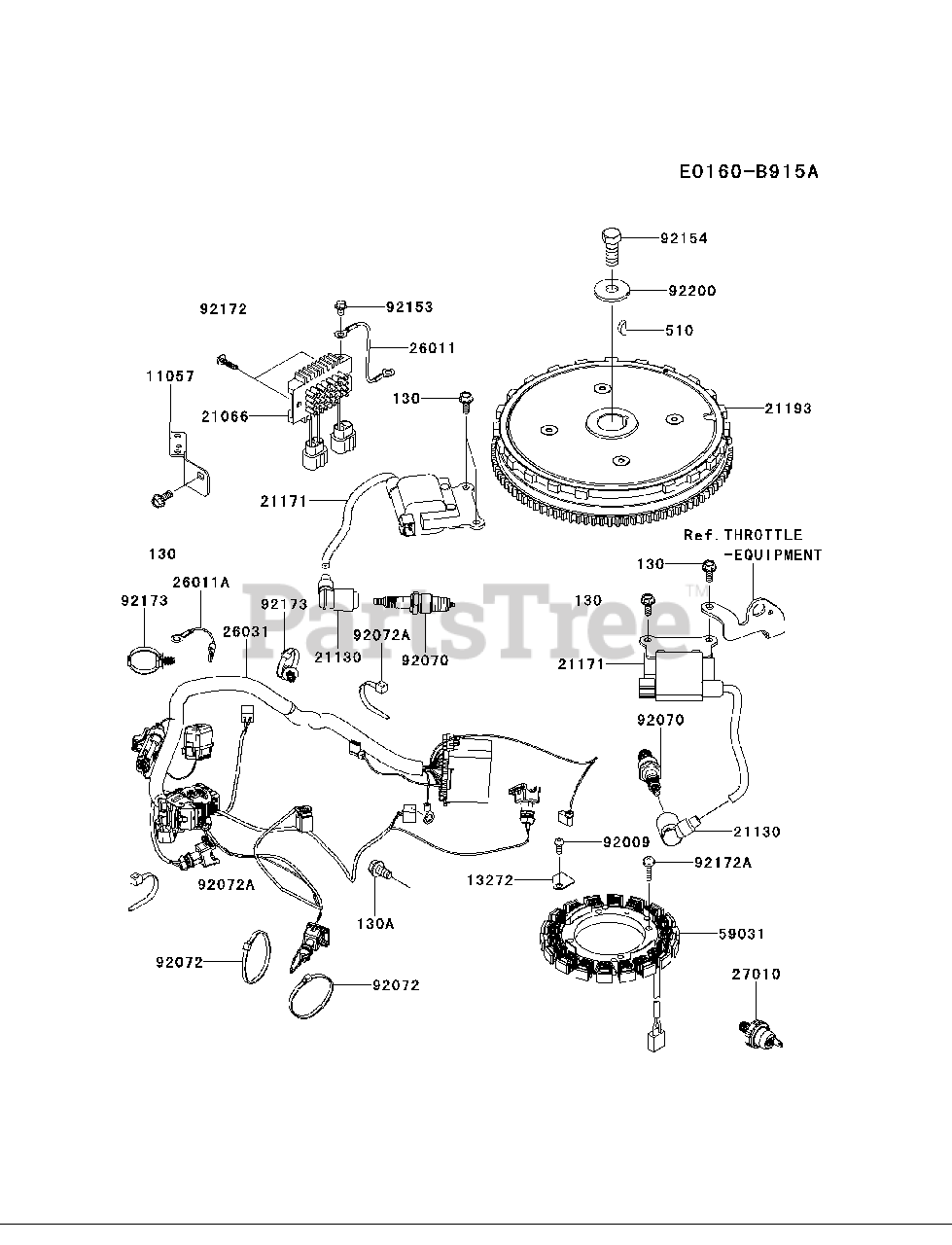

ELECTRIC-EQUIPMENT(BS41) Parts Diagram

  • Title

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 2 left!

0

130A

Kawasaki 130BA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0

11057

Kawasaki 11057-0802

BRACKET,RELAY

$2.49

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-7012

PLATE

$1.49

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-0747

REGULATOR-VOLTAGE

$70.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21171

Kawasaki 21171-0725

COIL-ASSY-IGNITION

$62.99

$

In Stock, only 2 left!

0

21193

Kawasaki 21193-0037

FLYWHEEL-ASSY

$291.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-0931

WIRE-LEAD

$4.49

$

Usually ships in 2-5 days

0

26011A

Kawasaki 26011-7025

WIRE-LEAD,L=95

$2.99

$

In Stock, Qty 9

0

26031

Kawasaki 26031-2223

HARNESS

$

$

Not available

27010

Kawasaki 27010-0830

SWITCH,OIL PRESSURE

$23.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-0013

COIL-CHARGING

$67.99

$

In Stock, only 3 left!

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, only 2 left!

0

92072

Kawasaki 92072-0775

BAND

$1.49

$

Usually ships in 2-5 days

0

92072A

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, Qty 7

0

92153

Kawasaki 92153-7029

BOLT

$1.49

$

In Stock, Qty 12

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92172

Kawasaki 92172-0896

SCREW,5X19.6

$3.99

$

Usually ships in 2-5 days

0

92172A

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92173

Kawasaki 92173-1515

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 10

0
