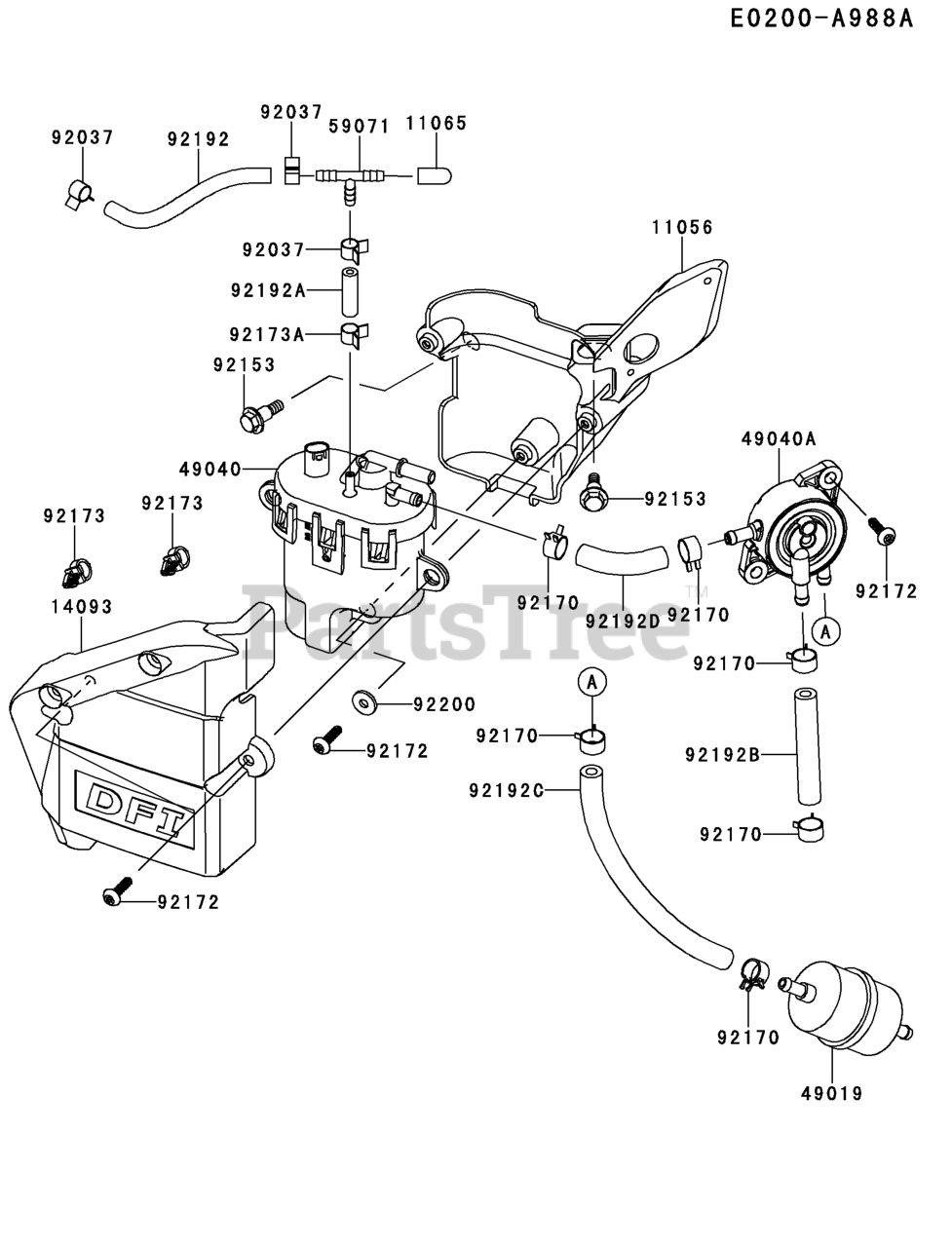

FS730V-BS01 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title

11056

Kawasaki 11056-3899

BRACKET

$13.99

$

Usually ships in 2-5 days

0

11065

Kawasaki 11065-7037

CAP
(Superseded to 11065-7023)

$0.99

$

In Stock, Qty 5

0

14093

Kawasaki 14093-0324

COVER

$15.99

$

Usually ships in 2-5 days

0

49019

Kawasaki 49019-0031

FILTER-FUEL

$7.99

$

In Stock, Qty 20+

0

49040

Kawasaki 49040-0736

PUMP-FUEL

$270.99

$

In Stock, Qty 5

0

49040A

Kawasaki 49040-0769

PUMP-FUEL

$37.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-0723

JOINT

$3.49

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-1461

CLAMP,TUBE

$4.49

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7008

BOLT

$

$

Not available

92170

Kawasaki 92170-2009

CLAMP

$

$

Not available

92172

Kawasaki 92172-0896

SCREW,5X19.6

$3.99

$

Usually ships in 2-5 days

0

92173

Kawasaki 92173-1186

CLAMP

$0.99

$

Usually ships in 2-5 days

0

92173A

Kawasaki 92173-1495

CLAMP

$0.99

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-1371

TUBE,4.76X8.74X133

$1.49

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-1372

TUBE,4.76X8.74X35

$0.99

$

Usually ships in 2-5 days

0

92192B

Kawasaki 92192-1374

TUBE,6.4X12.7X75

$1.49

$

Usually ships in 2-5 days

0

92192C

Kawasaki 92192-1549

TUBE,6.35X12.7X160

$

$

Not available

92192D

Kawasaki 92192-1585

TUBE,6.35X12.7X50

$

$

Not available

92200

Kawasaki 92200-0984

WASHER,5.3X15X1.2

$

$

Not available
