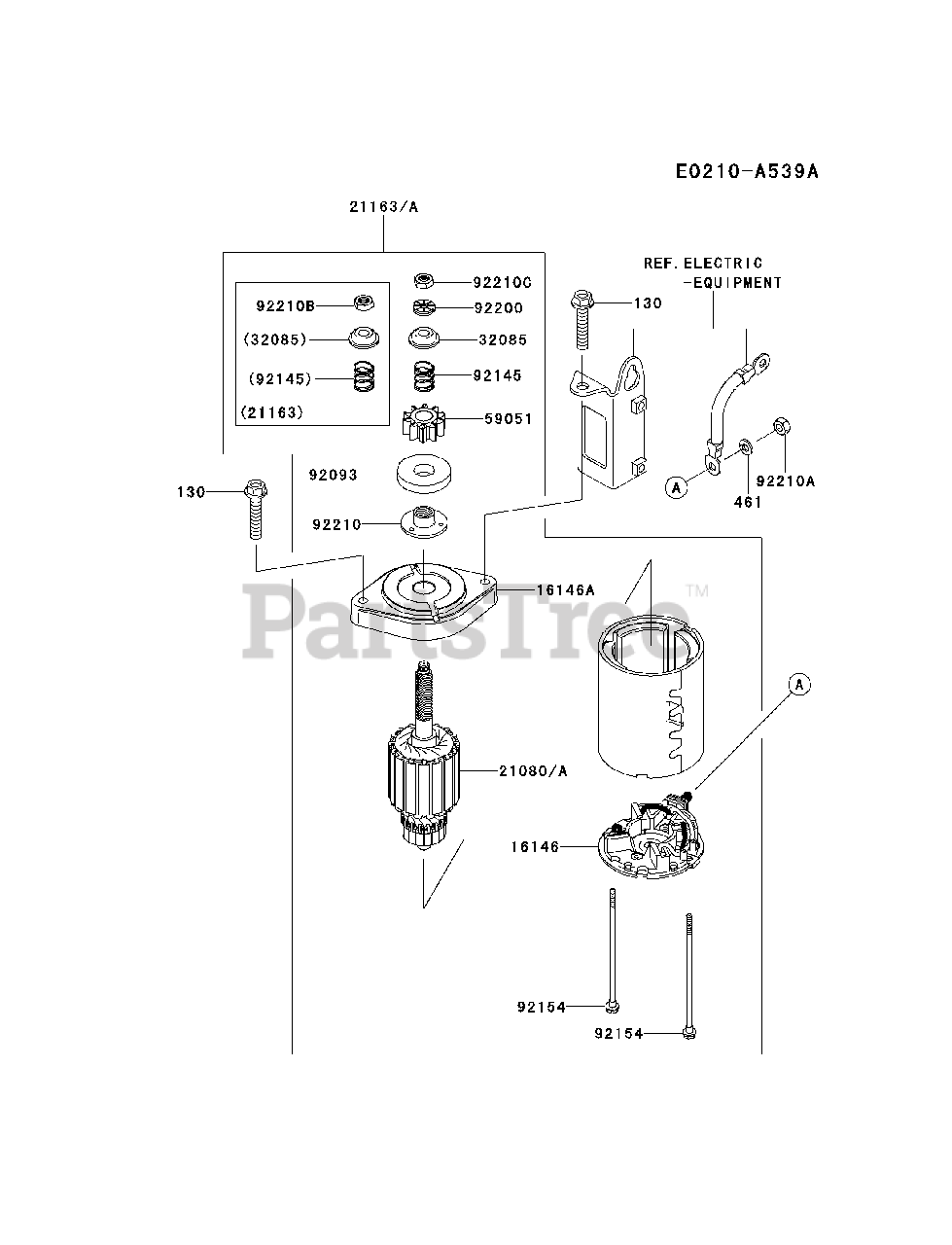

FS651V-BS04 - Kawasaki Engine STARTER Parts Diagram

Engine

STARTER Parts Diagram

  • Title
130

Kawasaki 130AA0840

BOLT-FLANGED,8X40
(Superseded to 130BA0840)

$2.49

$

In Stock, Qty 7

0

461

Kawasaki 461DA0600

WASHER-SPRING,6MM
(Superseded to 92022-1580)

$0.99

$

In Stock, Qty 6

0

16146

Kawasaki 16146-7027

COVER-ASSY
(Superseded to 16146-0731)

$74.99

$

Usually ships in 2-5 days

0

16146A

Kawasaki 16146-7030

COVER-ASSY
(Superseded to 16146-7028)

$107.99

$

Usually ships in 2-5 days

0

21080A

$

$

Not available

21163A

Kawasaki 21163-7035

STARTER-ELECTRIC
(Superseded to 21163-0722)

$

$

Not available

32085

Kawasaki 32085-7005

STOPPER
(Superseded to 32085-7004)

$6.99

$

Usually ships in 2-5 days

0

59051

$29.99

$

Usually ships in 2-5 days

0

92093

$5.49

$

In Stock, Qty 7

0

92145

$2.99

$

In Stock, only 3 left!

0

92154

$7.99

$

Usually ships in 2-5 days

0

92200

$3.49

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7017

NUT
(Superseded to 92210-0884)

$6.99

$

In Stock, only 3 left!

0

92210A

$0.99

$

Usually ships in 2-5 days

0

92210C

Kawasaki 92210-7039

NUT
(Superseded to 99999-0309)

$1.99

$

In Stock, only 4 left!

0
