FS651V-AS22 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

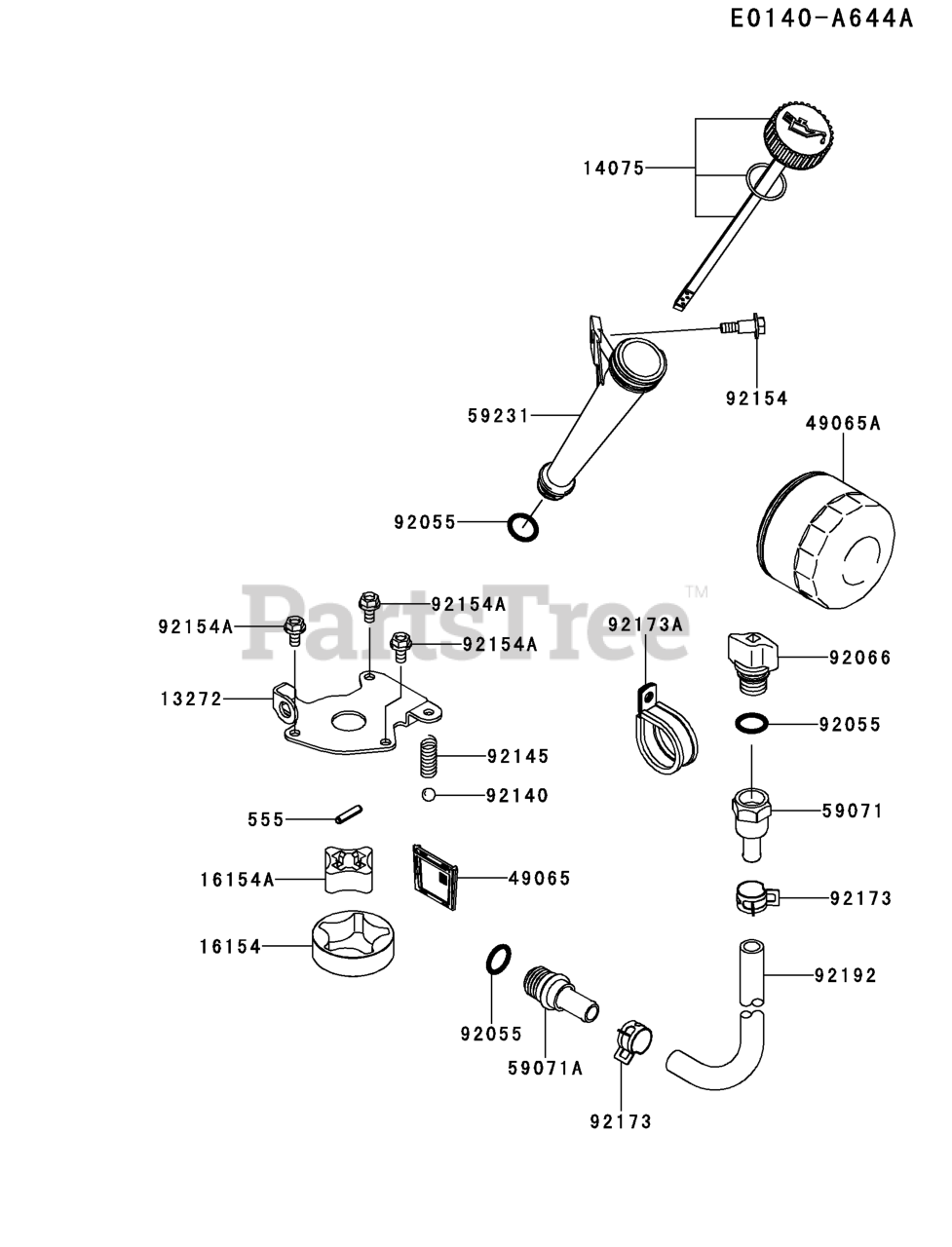

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

13272

Kawasaki 13272-7011

PLATE,ROTOR

$8.49

$

Usually ships in 2-5 days

0

14075

Kawasaki 14075-0707

CAP-ASSY

$10.99

$

In Stock, Qty 8

0

16154

Kawasaki 16154-7010

ROTOR-PUMP,OUTER

$18.99

$

In Stock, only 4 left!

0

16154A

Kawasaki 16154-7011

ROTOR-PUMP,INNER

$8.99

$

In Stock, Qty 13

0

49065

Kawasaki 49065-7006

FILTER-OIL

$

$

Not available

49065A

Kawasaki 49065-7007

FILTER-OIL
(Superseded to 49065-0721)

$18.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-0732

JOINT,PLUG SIDE

$6.49

$

In Stock, only 1 left!

0

59071A

Kawasaki 59071-0750

JOINT,ENGINE SIDE

$7.49

$

Usually ships in 2-5 days

0

59231

Kawasaki 59231-0746

FILLER

$8.49

$

Usually ships in 2-5 days

0

92055

Kawasaki 92055-0892

RING-O,15.8X2.4

$0.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-0818

PLUG

$4.99

$

In Stock, only 1 left!

0

92140

Kawasaki 92140-7003

BALL,STEEL,13/32

$1.49

$

In Stock, Qty 13

0

92145

Kawasaki 92145-1809

SPRING,OIL RELIEF

$0.99

$

In Stock, Qty 8

0

92154

Kawasaki 92154-2823

BOLT,6MM

$0.99

$

In Stock, Qty 8

0

92154A

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92173

Kawasaki 92173-1502

CLAMP
(Superseded to 92173-7003)

$2.49

$

In Stock, Qty 20+

0

92173A

Kawasaki 92173-2109

CLAMP

$6.99

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-1430

TUBE,12.7X18.3X350

$7.99

$

Usually ships in 2-5 days

0

555

Kawasaki 555A0420

PIN-SPRING,4X20

$0.99

$

In Stock, Qty 11

0
