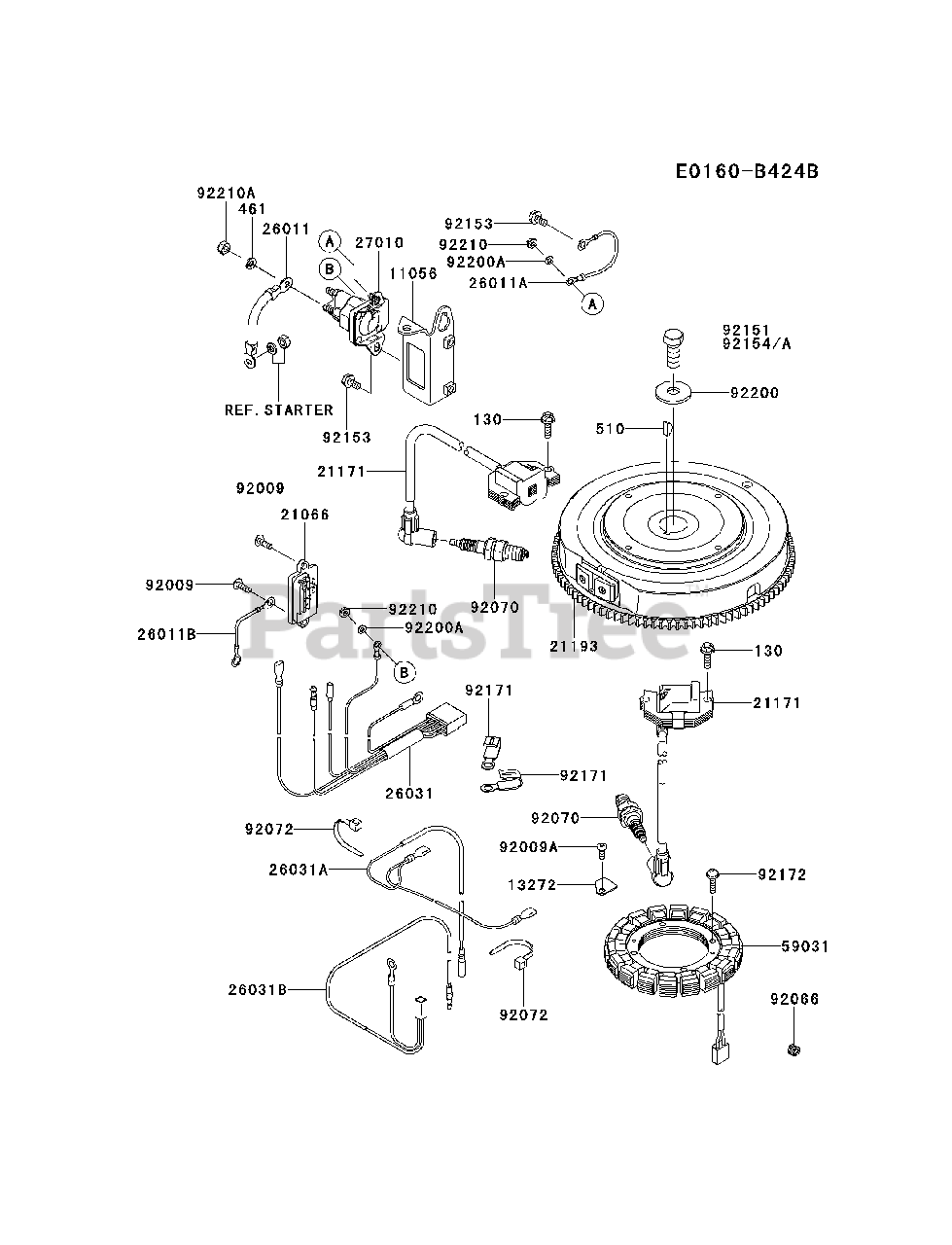

FS651V-AS04 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0600

WASHER-SPRING,6MM
(Superseded to 92022-1580)

$0.99

$

In Stock, Qty 6

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0

11056

$7.99

$

Usually ships in 2-5 days

0

13272

$1.49

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-7017

REGULATOR-VOLTAGE

$52.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-7047

COIL-ASSY-IGNITION
(Superseded to 21171-0711)

$77.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-7040

FLYWHEEL-ASSY
(Superseded to 21193-0017)

$270.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-7023

WIRE-LEAD
(Superseded to 26011-0911)

$4.49

$

Usually ships in 2-5 days

0

26011A

Kawasaki 26011-7024

WIRE-LEAD,L=95

$2.49

$

Usually ships in 2-5 days

0

26011B

Kawasaki 26011-7025

WIRE-LEAD,L=95

$2.99

$

In Stock, Qty 9

0

26031

$34.99

$

Usually ships in 2-5 days

0

26031A

$5.99

$

In Stock, Qty 20+

0

26031B

$11.99

$

In Stock, Qty 20+

0

27010

$24.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 20+

0

92009

$2.99

$

In Stock, Qty 20+

0

92009A

$0.99

$

In Stock, Qty 10

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92072

$1.49

$

In Stock, Qty 5

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 19

0

92153

$

$

Not available

92154A

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 19

0

92171

$1.99

$

In Stock, Qty 5

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

$3.49

$

In Stock, Qty 10

0

92200A

$0.99

$

In Stock, only 2 left!

0

$0.99

$

In Stock, only 2 left!

0

92210A

$0.99

$

Usually ships in 2-5 days

0
