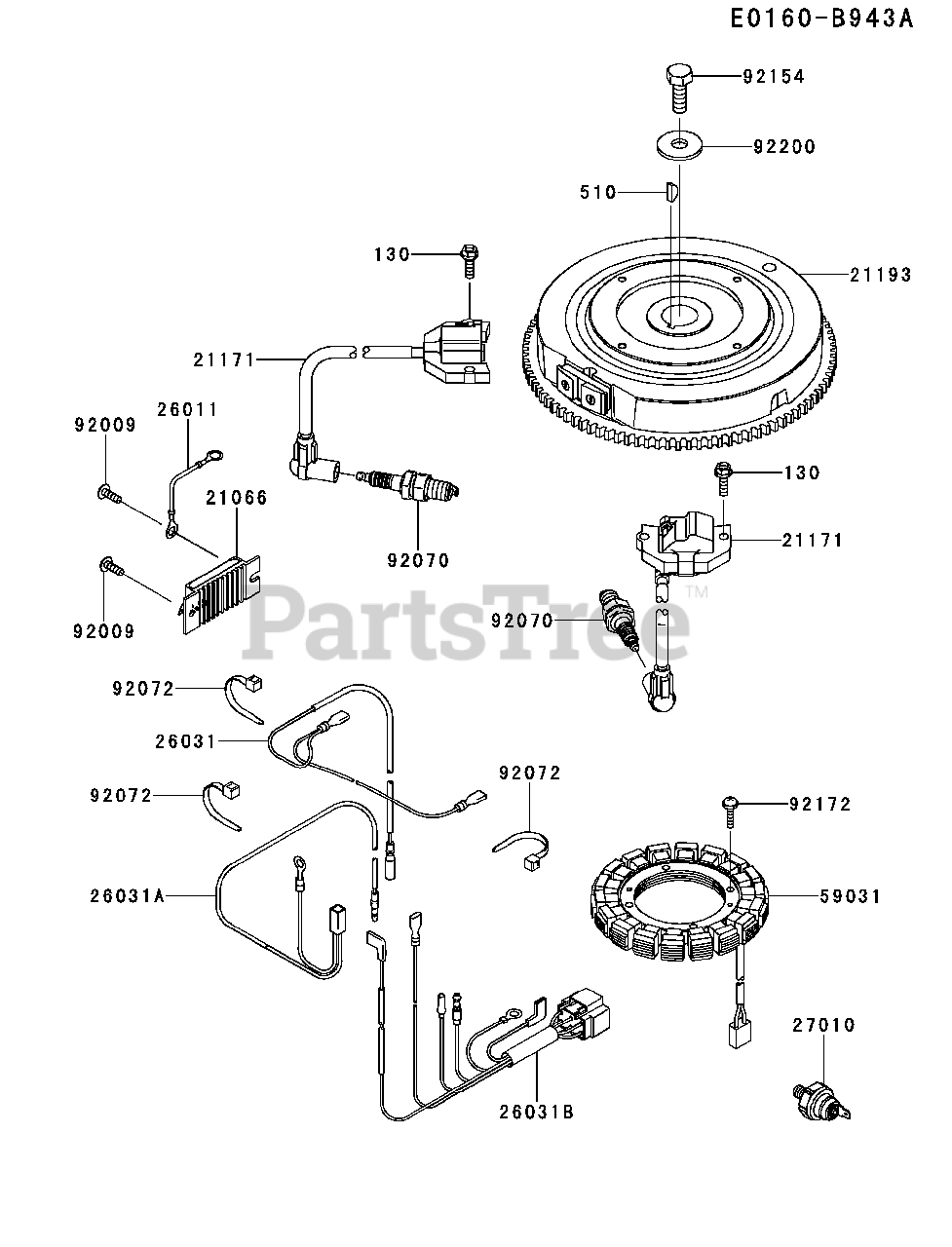

FS600V-AS29 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 210660740

REGULATOR-VOLTAGE

$

$

Not available

21171

Kawasaki 211710740

COIL-ASSY-IGNITION

$77.99

$

In Stock, Qty 7

0

21193

Kawasaki 211930035

FLYWHEEL-ASSY
(Superseded to 21193-0016)

$266.99

$

In Stock, only 1 left!

0

26011

Kawasaki 260112234

WIRE-LEAD

$2.49

$

In Stock, only 3 left!

0

26031

Kawasaki 260317040

HARNESS

$5.99

$

Usually ships in 2-5 days

0

26031A

Kawasaki 260317047

HARNESS

$9.49

$

In Stock, Qty 9

0

26031B

Kawasaki 260317048

HARNESS

$11.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 270100818

SWITCH
(Superseded to 27010-7002)

$23.99

$

In Stock, only 1 left!

0

59031

Kawasaki 590317010

COIL-CHARGING 20AMP
(Superseded to 59031-7015)

$108.99

$

In Stock, only 1 left!

0

92009

Kawasaki 920092303

SCREW

$2.99

$

In Stock, Qty 7

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 920727003

BAND

$1.49

$

In Stock, only 3 left!

0

92154

Kawasaki 921547003

BOLT,12X30

$4.99

$

In Stock, only 1 left!

0

92172

Kawasaki 921727018

SCREW,5X20

$0.99

$

In Stock, Qty 9

0

92200

Kawasaki 922007002

WASHER

$3.49

$

In Stock, Qty 8

0

130

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 11

0
