FS600V-AS17 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

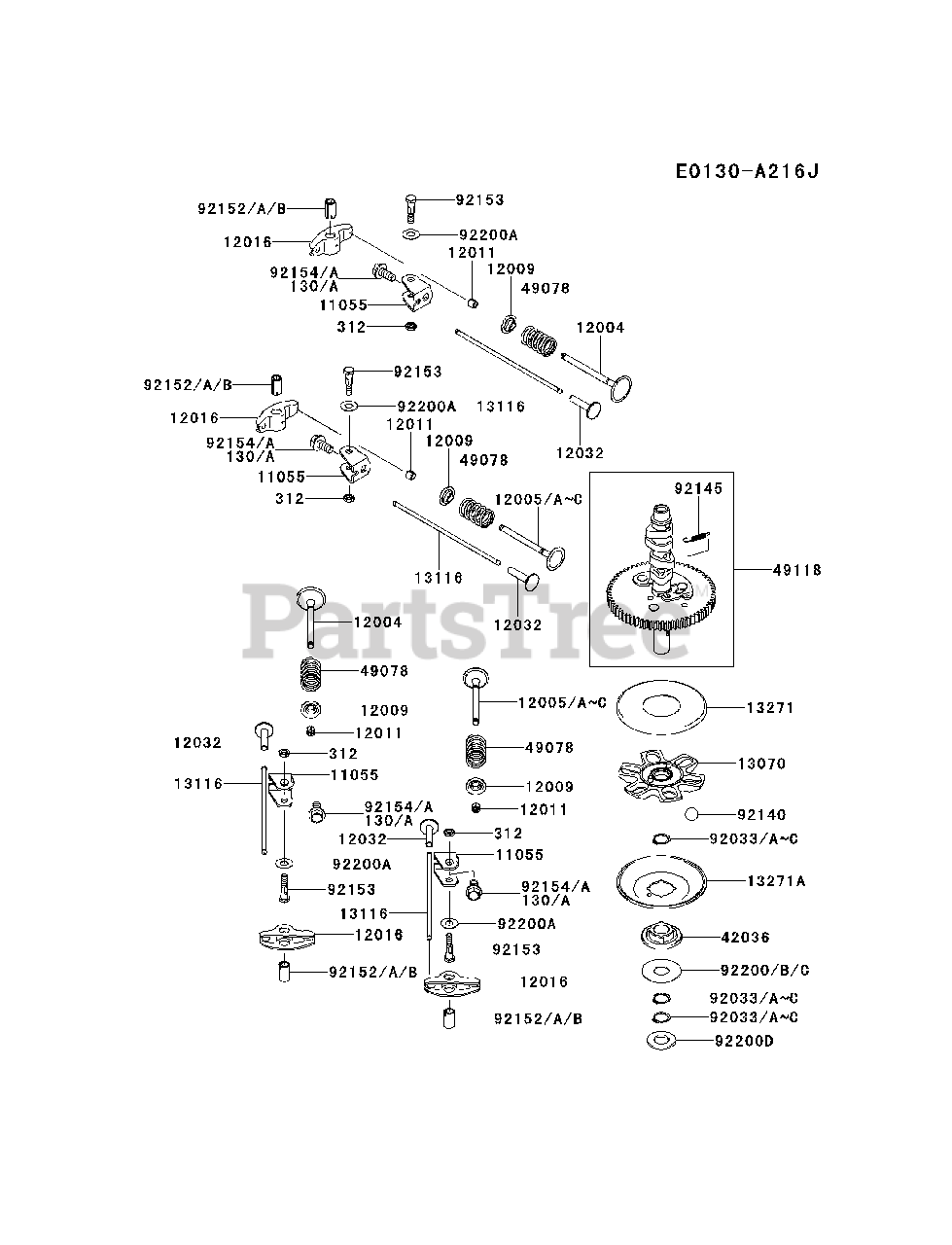

VALVE/CAMSHAFT Parts Diagram

  • Title

11055

Kawasaki 11055-7009

BRACKET
(Superseded to 11054-7018)

$3.49

$

In Stock, Qty 20+

0

12004

Kawasaki 12004-7009

VALVE-INTAKE
(Superseded to 120040740)

$14.99

$

In Stock, Qty 15

0

12005B

Kawasaki 12005-7010

VALVE-EXHAUST
(Superseded to 12005-0735)

$

$

Not available

12009

Kawasaki 12009-7001

RETAINER-VALVE SPRING

$2.49

$

In Stock, Qty 20+

0

12011

Kawasaki 12011-2056

COLLET

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-2066

ARM-ROCKER
(Superseded to 120160040)

$13.99

$

In Stock, Qty 20+

0

12032

Kawasaki 12032-7001

TAPPET

$8.99

$

In Stock, Qty 20+

0

13070

Kawasaki 13070-7017

GUIDE,GOVERNOR

$4.99

$

In Stock, Qty 10

0

13116

Kawasaki 13116-7008

ROD-PUSH

$8.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7007

PLATE
(Superseded to 13270-7003)

$5.49

$

In Stock, Qty 10

0

13271A

Kawasaki 13271-7021

PLATE,GOVERNOR
(Superseded to 13270-7002)

$5.49

$

In Stock, Qty 18

0

42036

Kawasaki 42036-7021

SLEEVE

$5.99

$

Usually ships in 2-5 days

0

49078

Kawasaki 49078-7002

SPRING-ENGINE VALVE,IN

$6.99

$

In Stock, Qty 20+

0

49118

Kawasaki 49118-7023

CAMSHAFT-COMP
(Superseded to 491180809)

$77.99

$

In Stock, only 2 left!

0

92033B

Kawasaki 92033-7001

RING-SNAP
(Superseded to 92033-0727)

$0.99

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7005

BALL

$

$

Not available

92145

Kawasaki 92145-7001

SPRING
(Superseded to 921451653)

$1.49

$

In Stock, Qty 20+

0

92152A

Kawasaki 92152-1689

COLLAR

$5.49

$

In Stock, Qty 20+

0

92152B

Kawasaki 92152-7022

COLLAR
(Superseded to 921521689)

$5.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7100

BOLT,6X29.5

$3.49

$

In Stock, Qty 20+

0

92200A

Kawasaki 92200-2151

WASHER,8.1X18X0.5

$1.49

$

In Stock, Qty 20+

0

92200B

Kawasaki 92200-7009

WASHER,16X42X0.91
(Superseded to 922000945)

$0.99

$

In Stock, Qty 8

0

92200D

Kawasaki 92200-7048

WASHER,16.3X30X2.28

$2.49

$

In Stock, Qty 7

0

130

Kawasaki 130AA0814

BOLT-FLANGED,8X14
(Superseded to 130B0814)

$

$

Not available

312

Kawasaki 312AA0600

NUT-HEX,6MM
(Superseded to 43032-002)

$0.99

$

In Stock, Qty 20+

0
