FS600V-AS17 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

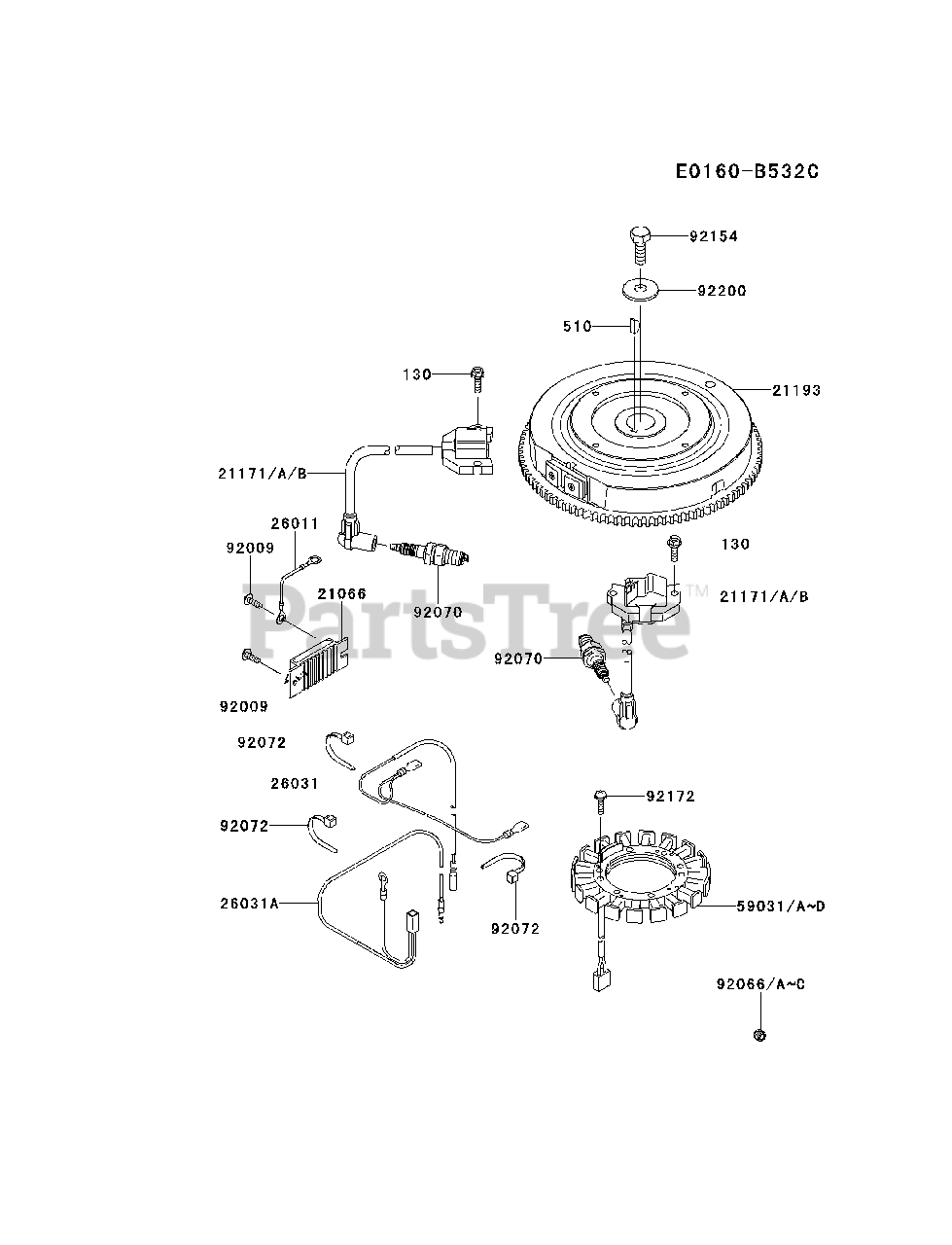

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7011

REGULATOR-VOLTAGE
(Superseded to 21066-7001)

$77.99

$

In Stock, Qty 20+

0

21171A

Kawasaki 21171-0711

COIL-ASSY-IGNITION
(Superseded to 211710743)

$77.99

$

In Stock, Qty 20+

0

21171B

Kawasaki 21171-7047

COIL-ASSY-IGNITION
(Superseded to 21171-0711)

$77.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-7038

FLYWHEEL-ASSY
(Superseded to 21193-0016)

$266.99

$

In Stock, only 2 left!

0

26011

Kawasaki 26011-7025

WIRE-LEAD,L=95

$2.99

$

In Stock, Qty 9

0

26031

Kawasaki 26031-7040

HARNESS

$5.99

$

In Stock, Qty 20+

0

26031A

Kawasaki 26031-7047

HARNESS

$9.49

$

In Stock, Qty 9

0

59031A

Kawasaki 59031-7010

COIL-CHARGING
(Superseded to 59031-7015)

$108.99

$

In Stock, Qty 5

0

59031C

Kawasaki 59031-7015

COIL-CHARGING
(Superseded to 59031-7010)

$108.99

$

In Stock, Qty 5

0

59031D

Kawasaki 59031-7020

COIL-CHARGING
(Superseded to 59031-0709)

$72.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2303

SCREW

$2.99

$

In Stock, Qty 20+

0

92066B

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, Qty 5

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 19

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 10

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
