FS541V-BS52 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

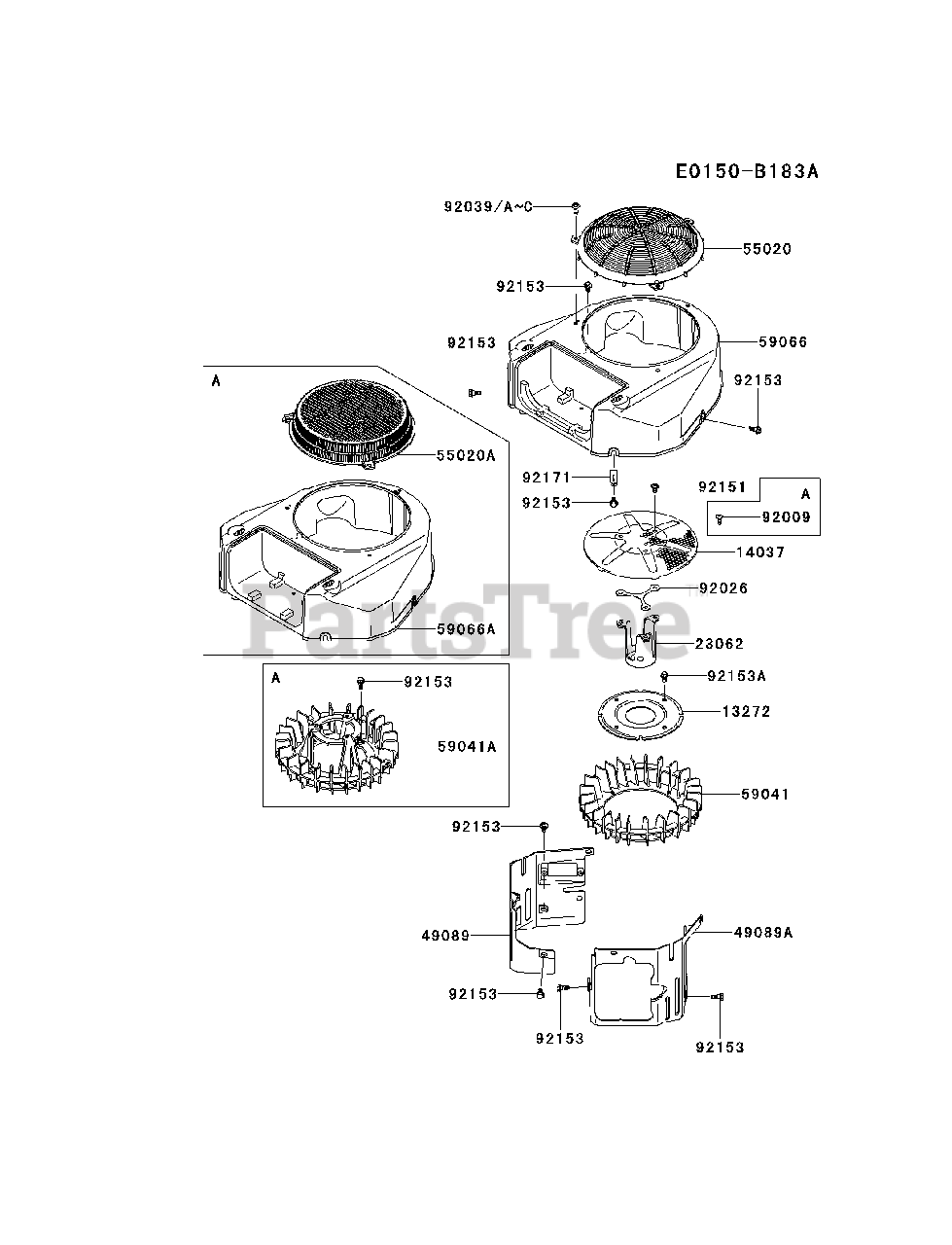

COOLING-EQUIPMENT Parts Diagram

  • Title

13272

Kawasaki 13272-1487

PLATE,FAN

$9.99

$

In Stock, Qty 5

0

14037

Kawasaki 14037-7008-9H

SCREEN
(Superseded to 14037-7008)

$35.99

$

In Stock, Qty 20+

0

23062

Kawasaki 23062-7022

BRACKET-COMP

$12.99

$

In Stock, Qty 7

0

49089

Kawasaki 49089-7083

SHROUD-ENGINE

$

$

Not available

49089A

Kawasaki 49089-7084

SHROUD-ENGINE

$

$

Not available

55020

Kawasaki 55020-0900

GUARD

$39.99

$

In Stock, Qty 20+

0

59041

Kawasaki 59041-0008

FAN

$

$

Not available

59066

Kawasaki 59066-0018

HOUSING-FAN
(Superseded to 59066-0044)

$

$

Not available

92026

Kawasaki 92026-7007

SPACER

$5.99

$

In Stock, Qty 20+

0

92039

Kawasaki 92039-0734

RIVET,GUARD
(Superseded to 92039-0751)

$0.99

$

In Stock, Qty 20+

0

92039B

Kawasaki 92039-7004

RIVET,GUARD
(Superseded to 92039-0751)

$0.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7012

BOLT,6X12
(Superseded to 92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

BOLT,FLANGED,6X16

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92171

Kawasaki 92171-7008

CLAMP

$1.99

$

In Stock, Qty 5

0
