FS541V-AS09 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

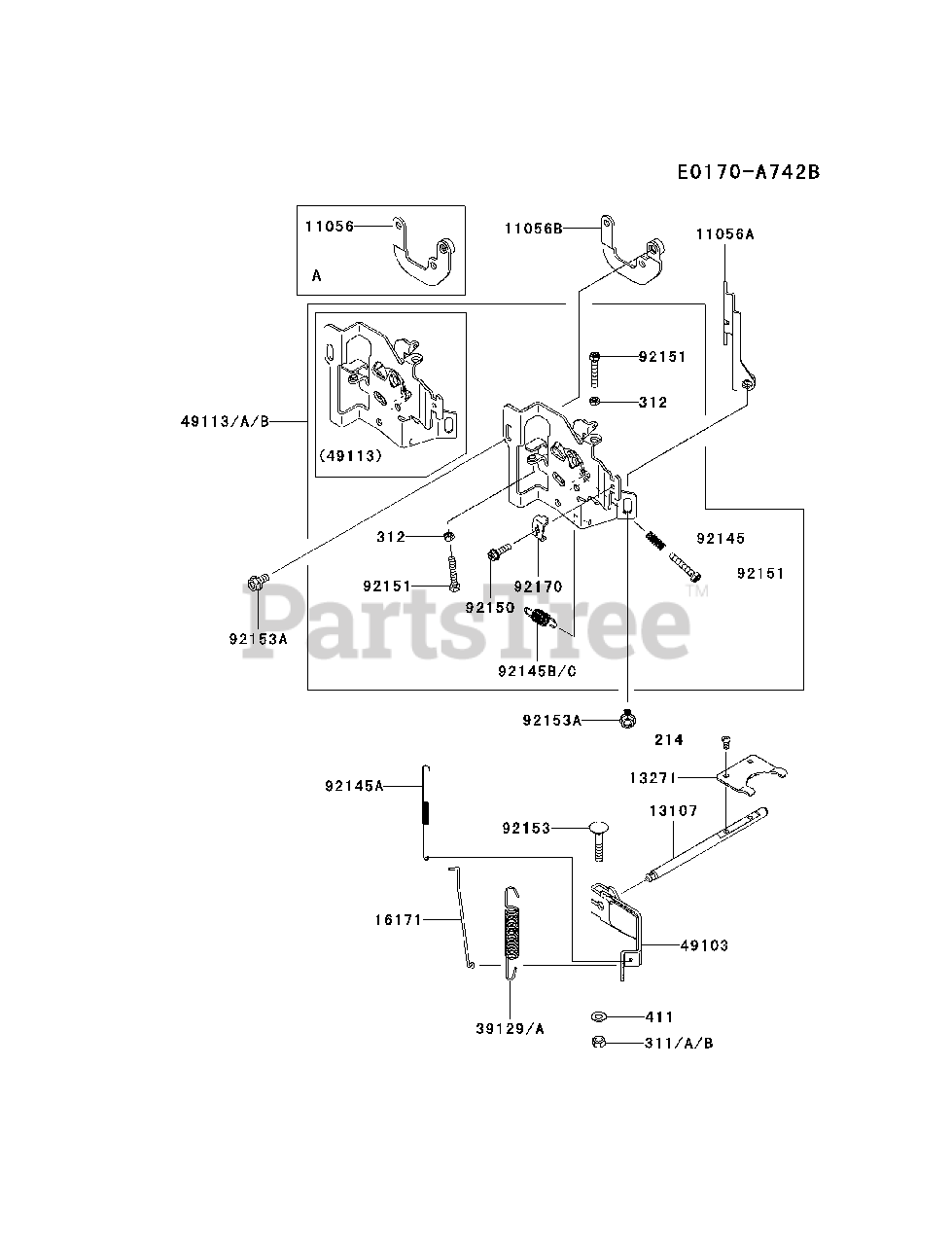

CONTROL-EQUIPMENT Parts Diagram

  • Title

11056

Kawasaki 11056-7011

BRACKET
(Superseded to 99999-7086)

$40.99

$

Usually ships in 2-5 days

0

11056A

Kawasaki 11056-7012

BRACKET

$4.99

$

Usually ships in 2-5 days

0

13107

Kawasaki 13107-7049

SHAFT

$12.99

$

In Stock, only 1 left!

0

13271

Kawasaki 13271-7038

PLATE

$3.49

$

In Stock, only 1 left!

0

16171

Kawasaki 16171-7025

LINK
(Superseded to 16171-0035)

$

$

Not available

39129

Kawasaki 39129-0726

SPRING-GOVERNOR
(Superseded to 39129-7036)

$4.99

$

Usually ships in 2-5 days

0

39129A

Kawasaki 39129-7036

SPRING-GOVERNOR
(Superseded to 39129-0726)

$4.99

$

Usually ships in 2-5 days

0

49103

Kawasaki 49103-7020

ARM-GOVERNOR

$5.99

$

Usually ships in 2-5 days

0

49113

Kawasaki 49113-7065

PANEL-COMP-CONTROL
(Superseded to 99999-7086)

$40.99

$

Usually ships in 2-5 days

0

49113B

Kawasaki 49113-7067

PANEL-COMP-CONTROL
(Superseded to 49113-0723)

$51.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-7005

SPRING

$0.99

$

In Stock, only 2 left!

0

92145A

Kawasaki 92145-7057

SPRING

$3.99

$

In Stock, only 3 left!

0

92145B

Kawasaki 92145-7062

SPRING
(Superseded to 92145-7064)

$6.49

$

Usually ships in 2-5 days

0

92150

Kawasaki 92150-2182

BOLT,5X18

$0.99

$

In Stock, Qty 10

0

92151

Kawasaki 92151-7014

BOLT,5X30

$1.49

$

In Stock, Qty 5

0

92153

Kawasaki 92153-7033

BOLT,6X35

$

$

Not available

92153A

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92170

Kawasaki 92170-7001

CLAMP

$2.99

$

In Stock, only 3 left!

0

214

Kawasaki 214AA0408

SCREW-PAN+-,4X8
(Superseded to 214B0408)

$3.99

$

In Stock, Qty 5

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 16

0

311B

Kawasaki 311BA0600

NUT-HEX,6MM
(Superseded to 310G0600)

$

$

Not available

312

Kawasaki 312AA0500

NUT-HEX,5MM

$0.99

$

In Stock, Qty 6

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, only 2 left!

0
