FS481V-CS56 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

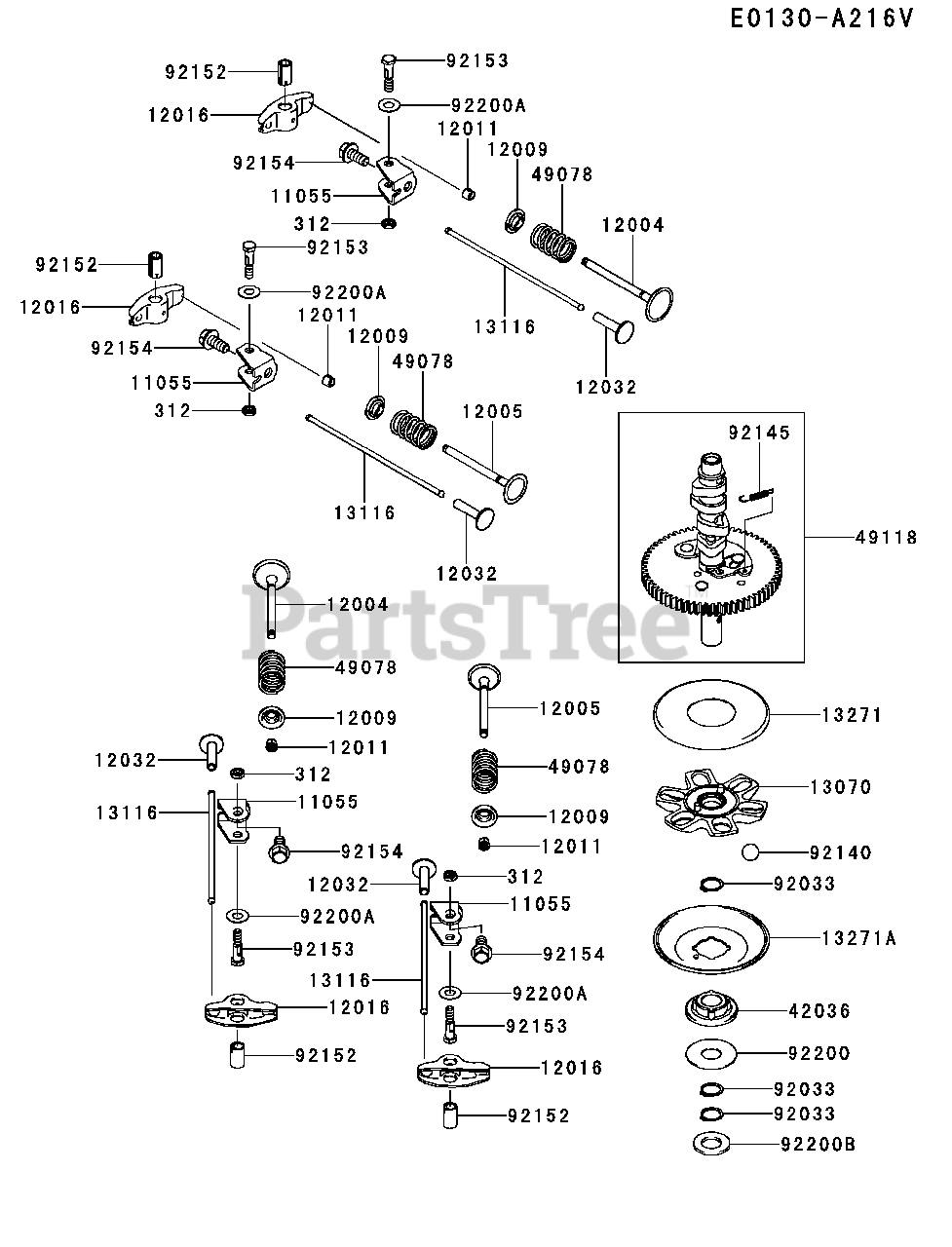

VALVE/CAMSHAFT Parts Diagram

  • Title

11055

Kawasaki 110557009

BRACKET
(Superseded to 11054-7018)

$3.49

$

In Stock, only 2 left!

0

12004

Kawasaki 120040740

VALVE-INTAKE
(Superseded to 12004-7009)

$14.99

$

In Stock, only 2 left!

0

12005

Kawasaki 120050793

VALVE-EXHAUST

$27.99

$

In Stock, only 1 left!

0

12009

Kawasaki 120097001

RETAINER-VALVE SPRING

$2.49

$

In Stock, Qty 5

0

12011

Kawasaki 120112056

COLLET

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 120160040

ARM-ROCKER
(Superseded to 12016-2066)

$13.99

$

In Stock, only 3 left!

0

12032

Kawasaki 120327001

TAPPET

$8.99

$

In Stock, only 3 left!

0

13070

Kawasaki 130707017

GUIDE,GOVERNOR

$4.99

$

Usually ships in 2-5 days

0

13116

Kawasaki 131167008

ROD-PUSH

$8.99

$

In Stock, Qty 20+

0

13271

Kawasaki 132717007

PLATE
(Superseded to 13270-7003)

$5.49

$

In Stock, only 3 left!

0

13271A

Kawasaki 132717021

PLATE
(Superseded to 13270-7002)

$5.49

$

In Stock, Qty 13

0

42036

Kawasaki 420367021

SLEEVE

$5.99

$

Usually ships in 2-5 days

0

49078

Kawasaki 490787002

SPRING-ENGINE VALVE

$6.99

$

In Stock, only 4 left!

0

49118

Kawasaki 491180809

CAMSHAFT-COMP

$77.99

$

In Stock, only 2 left!

0

92033

Kawasaki 920330778

RING-SNAP

$0.99

$

In Stock, only 2 left!

0

92140

Kawasaki 921407005

BALL

$

$

Not available

92145

Kawasaki 921451653

SPRING

$1.49

$

In Stock, only 4 left!

0

92152

Kawasaki 921521689

COLLAR

$5.49

$

In Stock, Qty 9

0

92153

Kawasaki 921537100

BOLT,6X29.5

$3.49

$

In Stock, Qty 7

0

92154

Kawasaki 921541267

BOLT

$

$

Not available

92200

Kawasaki 922000945

WASHER,16X42X0.91

$0.99

$

In Stock, Qty 11

0

92200A

Kawasaki 922002151

WASHER,8.1X18X0.5

$1.49

$

In Stock, Qty 8

0

92200B

Kawasaki 922007048

WASHER,16.3X30X2.28

$2.49

$

In Stock, Qty 7

0

312

Kawasaki 312AA0600

NUT-HEX,6MM
(Superseded to 43032-002)

$0.99

$

In Stock, Qty 20+

0
