FS481V-AS26 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

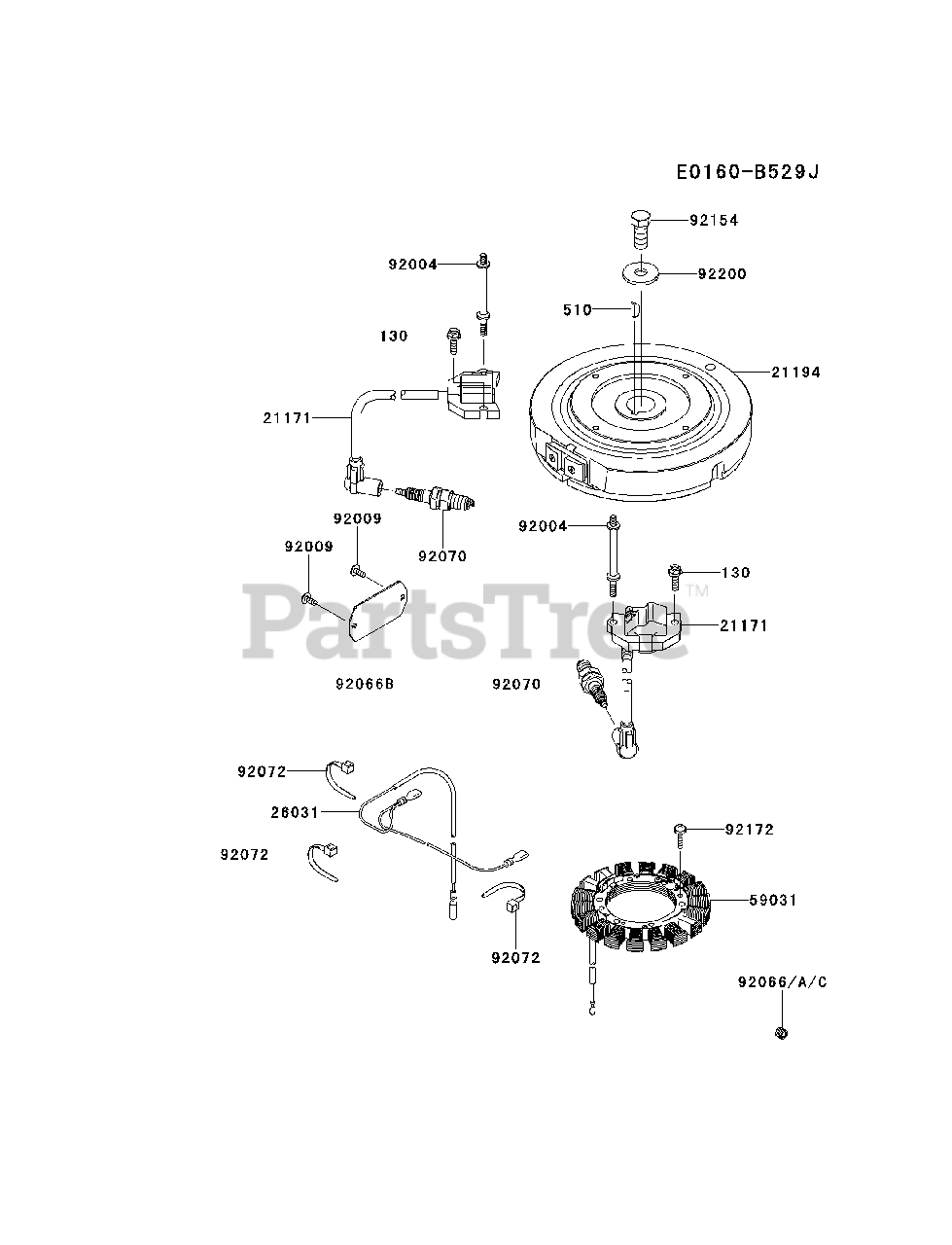

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21171

Kawasaki 21171-0711

COIL-ASSY-IGNITION
(Superseded to 211710743)

$77.99

$

In Stock, Qty 20+

0

21194

Kawasaki 21194-7034

FLYWHEEL-COMP
(Superseded to 211940020)

$219.99

$

Usually ships in 2-5 days

0

26031

Kawasaki 26031-7040

HARNESS

$5.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 59031-7002

COIL-CHARGING
(Superseded to 59031-7011)

$71.99

$

In Stock, only 3 left!

0

92004

Kawasaki 92004-7022

STUD,6X74.6

$2.49

$

In Stock, Qty 8

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92066A

Kawasaki 92066-0762

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92066B

Kawasaki 92066-7005

PLUG

$3.99

$

Usually ships in 2-5 days

0

92066C

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, only 3 left!

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 9

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 7

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 11

0
