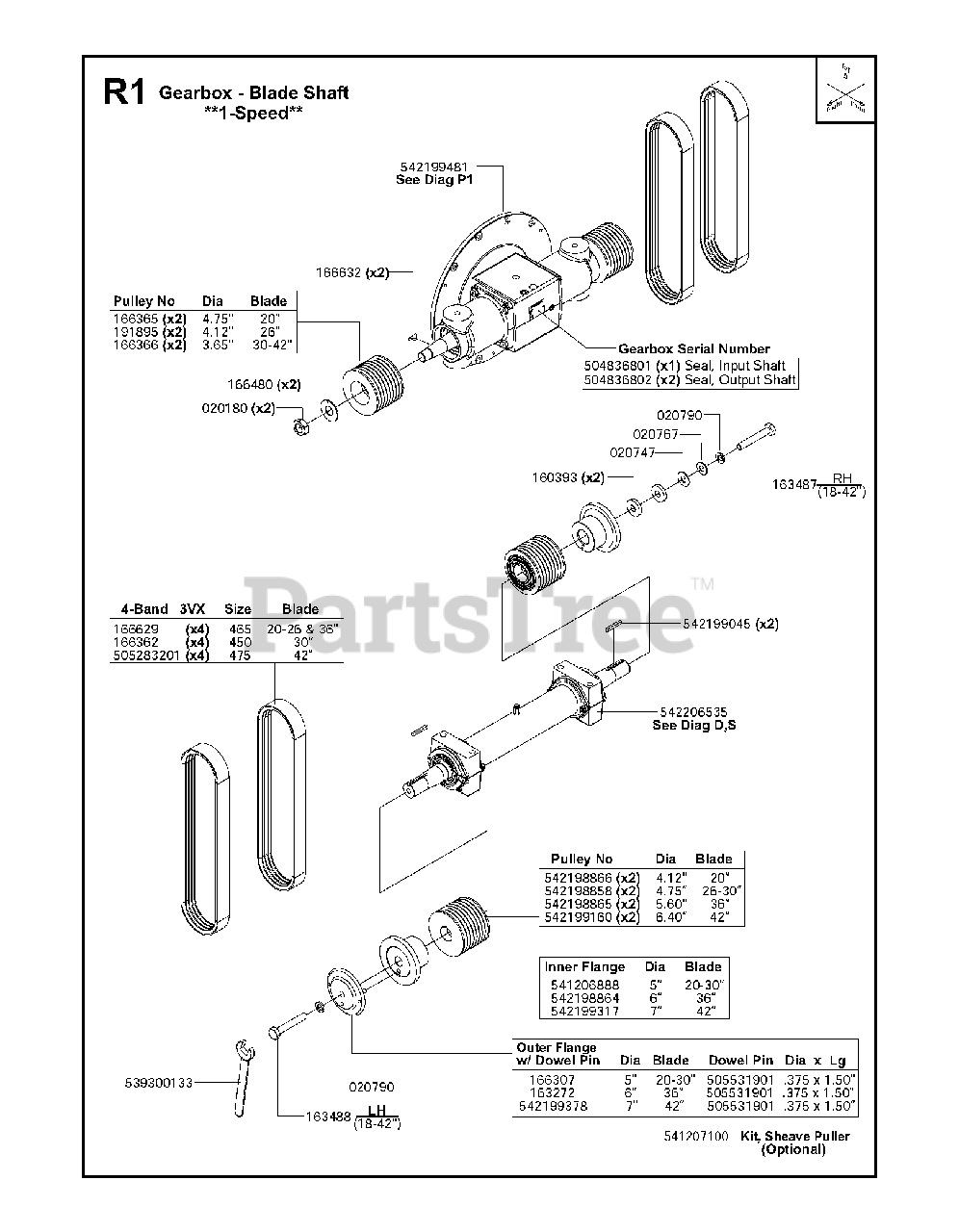

FS 6600 JD T3 - Husqvarna Floor Saw (2009-20) Gearbox - Blade Shaft - 1-Speed Parts Diagram

Floor Saw

Gearbox - Blade Shaft - 1-Speed Parts Diagram

  • Title

505531901

Husqvarna Construction 505 53 19-01

PIN

$11.99

$

In Stock, Qty 5

0

541207100

Husqvarna Construction 541 20 71-00

SHEAVE

$8632.99

$

Usually ships in 3-10 days

0

166307

Husqvarna Construction 166307

BLADE FLANGE W/PIN - 5" QDS

$

$

Not available

504836802

Husqvarna Construction 504 83 68-02

SEAL

$67.99

$

Usually ships in 3-10 days

0

163487

Husqvarna Construction 163487

HHCS. .625-11x3.5 RH THD GR BD

$27.99

$

In Stock, only 2 left!

0

504836801

Husqvarna Construction 504 83 68-01

SEAL

$39.99

$

Usually ships in 3-10 days

0

542199045

Husqvarna Construction 542 19 90-45

KEY

$15.99

$

Usually ships in 3-10 days

0

542206535

Husqvarna Construction 542 20 65-35

BLADE SHAFT

$2032.99

$

Usually ships in 3-10 days

0

505531901

Husqvarna Construction 505 53 19-01

PIN

$11.99

$

In Stock, Qty 5

0

020790

Husqvarna Construction 20790

LOCKWASHER. SPLIT .625 Z/P

$

$

Not available

542198865

Husqvarna Construction 542 19 88-65

PULLEY

$661.99

$

Usually ships in 3-10 days

0

542198866

Husqvarna Construction 542 19 88-66

PULLEY

$351.99

$

Usually ships in 3-10 days

0

020767

Husqvarna Construction 20767

WASHER

$

$

Not available

542199160

Husqvarna Construction 542 19 91-60

WASHER

$557.99

$

Usually ships in 3-10 days

0

542198858

Husqvarna Construction 542 19 88-58

PULLEY

$439.99

$

Usually ships in 3-10 days

0

020747

Husqvarna Construction 20747

WASHER

$

$

Not available

542199378

Husqvarna Construction 542 19 93-78

COLLAR

$

$

Not available

542199317

Husqvarna Construction 542 19 93-17

FLANGE

$665.99

$

Usually ships in 3-10 days

0

541206888

Husqvarna Construction 541 20 68-88

FLANGE

$208.99

$

Usually ships in 3-10 days

0

542198864

Husqvarna Construction 542 19 88-64

FLANGE

$316.99

$

In Stock, only 1 left!

0

160393

Husqvarna Construction 160393

CHASSIS

$8.99

$

Usually ships in 3-10 days

0

505531901

Husqvarna Construction 505 53 19-01

PIN

$11.99

$

In Stock, Qty 5

0

163272

Husqvarna Construction 163272

OUTER COLLAR W/DOWEL PIN 6"

$

$

Not available

542199481

Husqvarna Construction 542 19 94-81

GEARBOX

$5665.99

$

Usually ships in 3-10 days

0

020790

Husqvarna Construction 20790

LOCKWASHER. SPLIT .625 Z/P

$

$

Not available

166632

Husqvarna Construction 542 16 66-32

PIN, HYD CCYL FRONT/

$

$

Not available

163488

Husqvarna Construction 163488

HHCS. .625-11X3.5 LH THD GR BD
(Superseded to 917163488)

$9.49

$

Usually ships in 3-10 days

0

166629

Husqvarna Construction 166629

V-BELT

$83.99

$

In Stock, only 4 left!

0

166480

Husqvarna Construction 166480

WASHER

$12.99

$

In Stock, only 1 left!

0

166366

Husqvarna Construction 166366

PULLEY

$296.99

$

Usually ships in 3-10 days

0

191895

Husqvarna Construction 191895

PULLEY

$9.99

$

Usually ships in 3-10 days

0

020180

Husqvarna Construction 542 02 01-80

FS1200T NUT - JAM 1"-14/"

$3.49

$

Usually ships in 3-10 days

0

505283201

Husqvarna Construction 505 28 32-01

V-BELT

$81.99

$

In Stock, only 2 left!

0

166362

Husqvarna Construction 166362

V-BELT

$86.99

$

Usually ships in 3-10 days

0

166365

Husqvarna Construction 166365

PULLEY

$620.99

$

Usually ships in 3-10 days

0

539300133

Husqvarna Construction 539 30 01-33

WRENCH

$86.99

$

Usually ships in 3-10 days

0
