FS 3500 - Husqvarna Floor Saw (2007-10) Fuel Tank Parts Diagram

Floor Saw

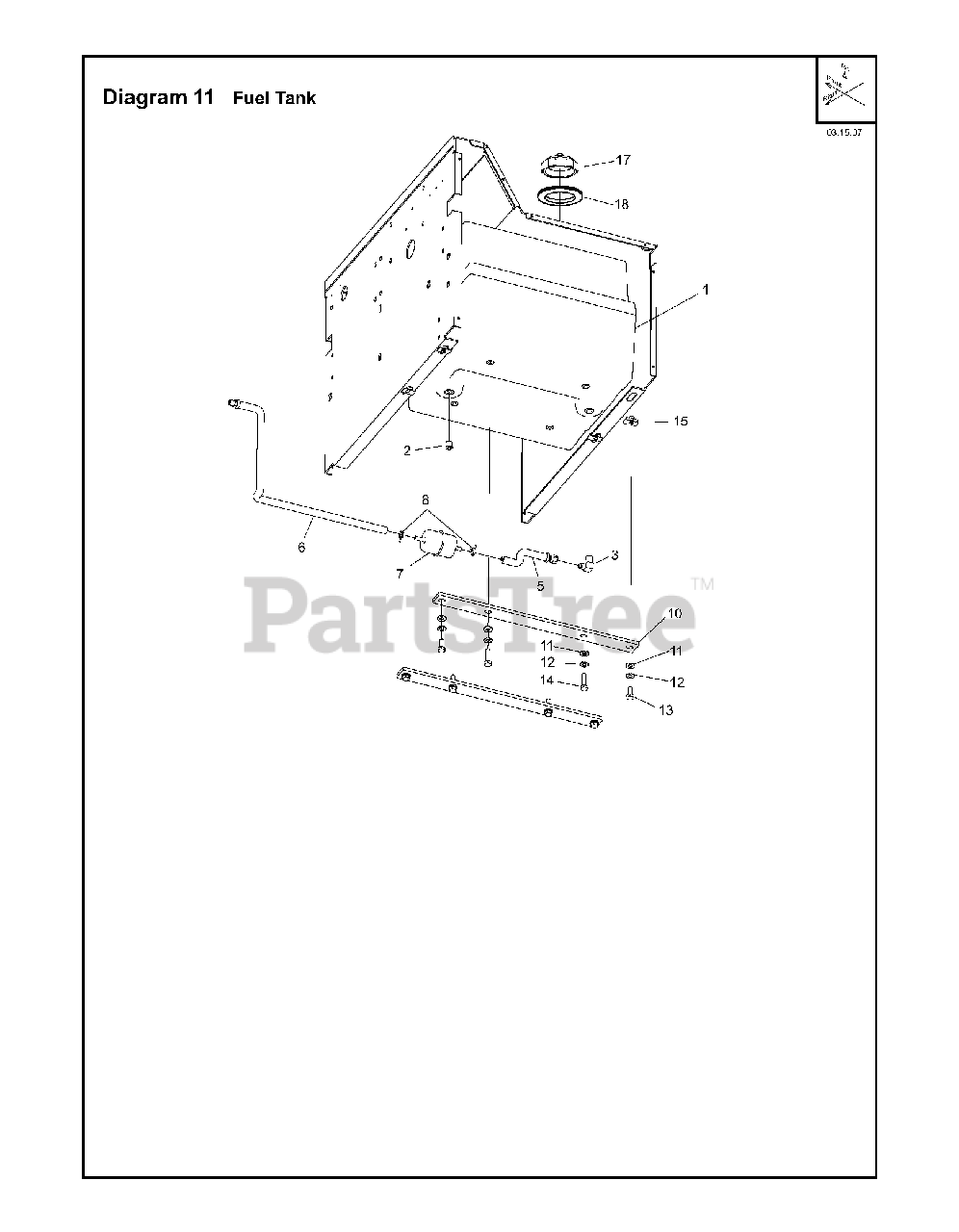

Fuel Tank Parts Diagram

  • Title

1

Husqvarna Construction 183919

FUEL TANK PLASTIC. 2 PORTS
(Superseded to 542183919)

$

$

Not available

2

Husqvarna Construction 136567

PLUG
(Superseded to 576191151)

$

$

Not available

3

Husqvarna Construction 45944

FTTNG. ELBOW 90 .25NPTx.25 SAE

$

$

Not available

5

Husqvarna Construction 175277

HOSE ASSY
(Superseded to 542175277)

$

$

Not available

6

Husqvarna Construction 175277

HOSE ASSY
(Superseded to 542175277)

$

$

Not available

7

Husqvarna Construction 45639

FILTER. GASOLINE. INLINE 1/4

$

$

Not available

8

Husqvarna Construction 45641

CLAMP

$

$

Not available

10

Husqvarna Construction 164246

FUEL TANK MOUNTING BAR. PAINTD

$18.67

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 173059

WASHER
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna Construction 173019

LOCKWASHER. STAR EXTERNAL M-8

$0.35

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 197227

HHCS. M8 x 1.25 x 20 DIN933 ZP
(Superseded to 725245171)

$1.49

$

In Stock, Qty 5

0

14

Husqvarna Construction 139753

WASHER

$0.58

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 167555

U-NUT.M8 x 1.25 (.8-4 mm MATL)

$2.33

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 183106

GAS CAP w/o GAUGE

$15.17

$

Usually ships in 3-10 days

0
