FS 3200 (5901755) - Ferris Venture XC Series Stand-On Spreader Spray Bar Group Parts Diagram

Venture XC Series Stand-On Spreader

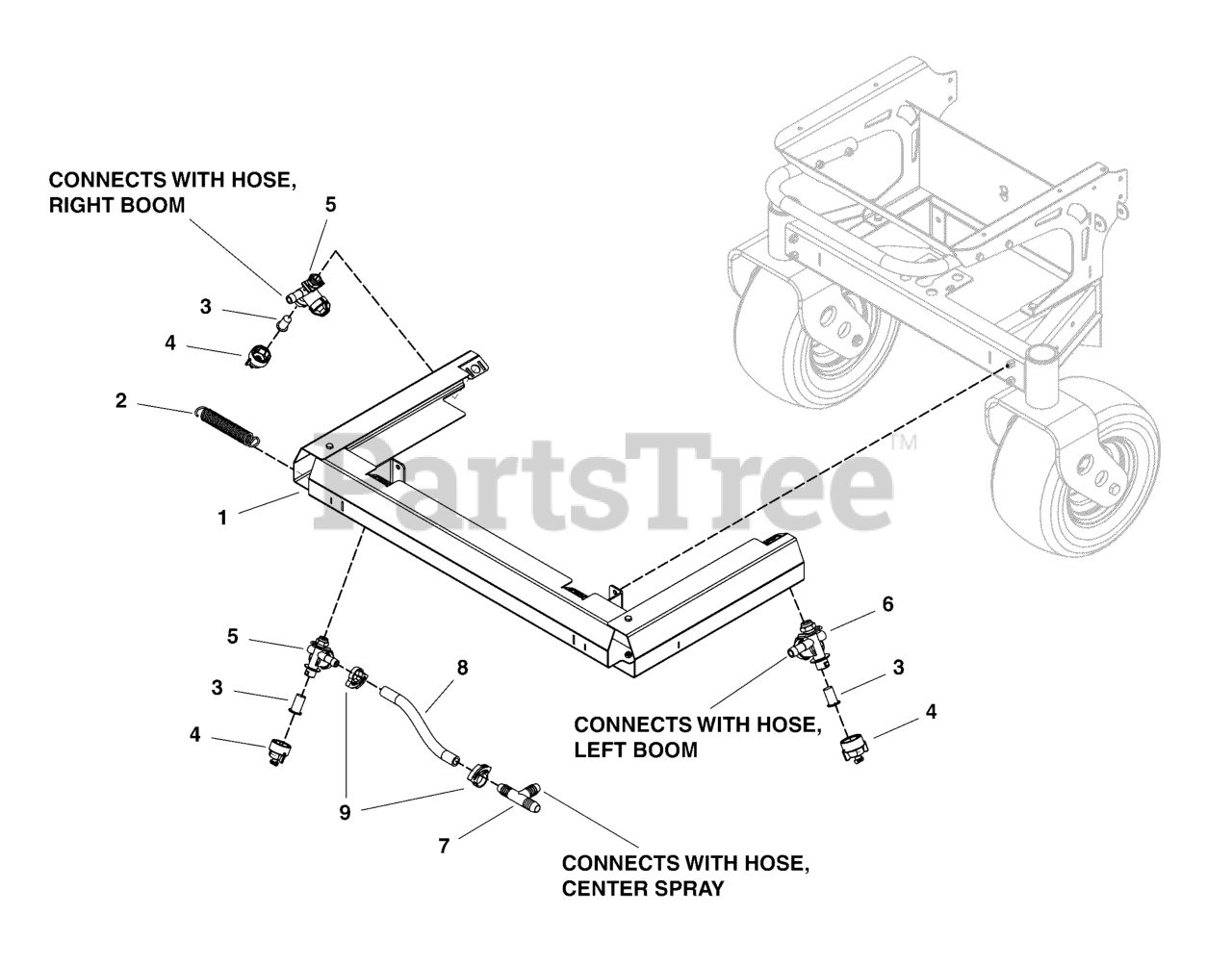

Spray Bar Group Parts Diagram

  • Title

1

ASM, SPRAY BAR , FOLDING BOOMS

$

$

Not available

2

Ferris 5105972

SPRING, EXTENSION .64" OD X 4.00" LG SS

$12.99

$

Usually ships in 2-12 days

0

3

Ferris 5105904

STRAINER, 50 MESH, POLYPROPYLENE TIP

$4.99

$

Usually ships in 2-12 days

0

4

Ferris 5106034

NOZZLE, TIP, WIDE ANGLE, .03 ORIFICE
(Superseded to 5106034FS)

Note: (S/N: 30000003685 and Below)

$24.99

$

Usually ships in 2-12 days

0

4

Ferris 5108612

TIP, NOZZLE AIXR 110025 VIOLET

Note: (S/N: 30000003686 and Above)

$15.99

$

Usually ships in 2-12 days

0

5

Ferris 5106025

DIAPHRAGM CHECK VALVE, RIGHT

$29.99

$

Usually ships in 2-12 days

0

6

Ferris 5106035

DIAPHRAGM CHECK VALVE, LEFT

$25.99

$

Usually ships in 2-12 days

0

7

Ferris 5106713

FITTING, TEE, 1/2" MPT

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5418420

HOSE, NOZZLE SUPPLY, 0.5" ID, 8.75" LONG

Note: (S/N: 30000003685 and Below)

$4.99

$

Usually ships in 2-12 days

0

8

Ferris 5420068

HOSE, CHEM .50" X 9"

Note: (S/N: 30000003686 and Above)

$6.49

$

Usually ships in 2-12 days

0

9

Ferris 5106655

SNAP GRIP CLAMP .656 - .750 ID

Note: (S/N: 30000003685 and Below)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5110421

CLAMP, PINCH 19.8mm TO 22.6mm

Note: (S/N: 30000003686 and Above)

$1.49

$

Usually ships in 2-12 days

0

10

Ferris 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5105992FS

NUT

$3.49

$

Usually ships in 2-12 days

0
