FS 3200 (5901755) - Ferris Venture XC Series Stand-On Spreader Parking Brake Group Parts Diagram

Venture XC Series Stand-On Spreader

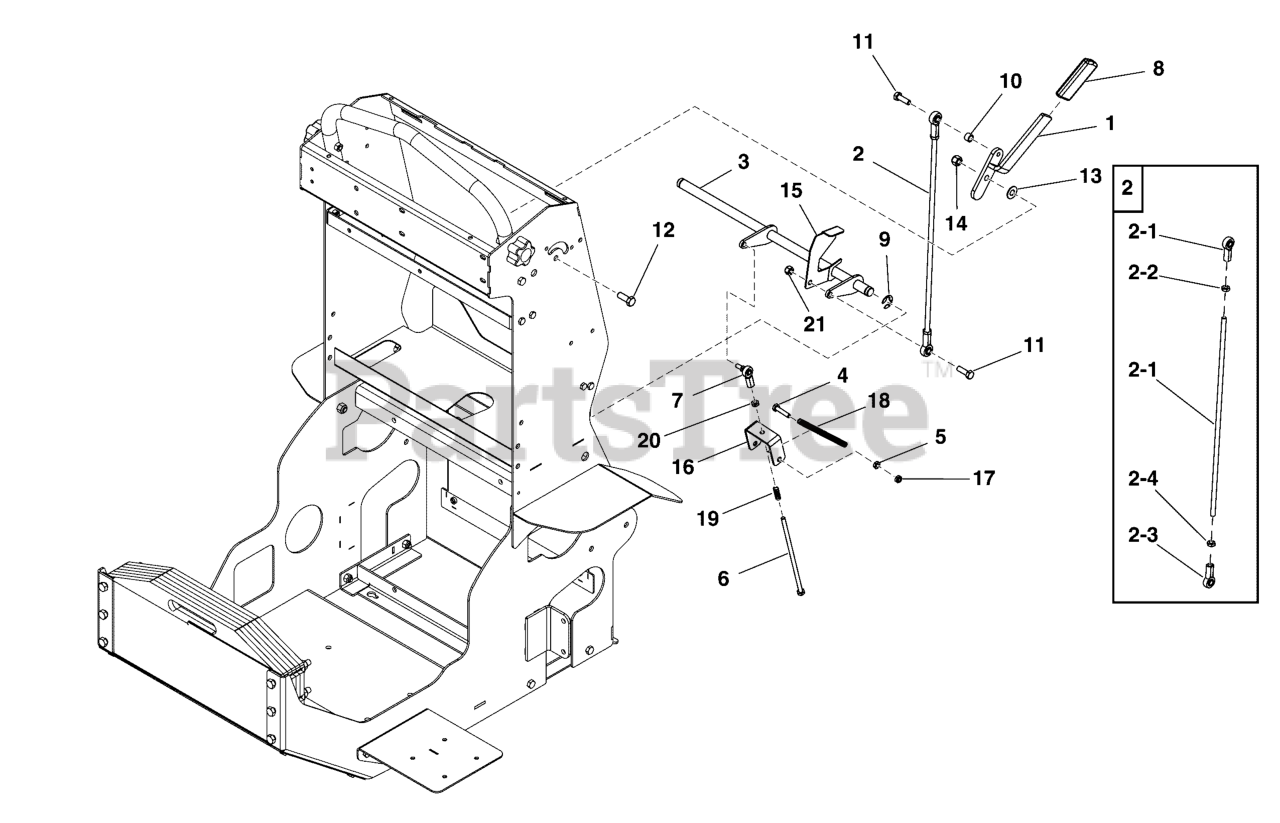

Parking Brake Group Parts Diagram

  • Title
1

Ferris 5418372

WELD, PARK BRAKE HANDLE

$50.99

$

Usually ships in 2-12 days

0

2

Ferris 5418375

ASM, PARK BRAKE ROD

$66.99

$

Usually ships in 2-12 days

0

2-1

Ferris 5106686

ROD, CONTROL 5/16-24 THD X 16.50" MZ

$34.99

$

Usually ships in 2-12 days

0

2-2

Ferris 5106245

ROD END, FEMALE 5/16-24 LH ZP PTFE RACE

$11.99

$

Usually ships in 2-12 days

0

2-3

Ferris 5106244

ROD END, FEMALE 5/16-24 RH ZP PTFE RACE

$12.99

$

Usually ships in 2-12 days

0

2-4

Ferris 5106688

NUT-HEX, JAM .3125"-24 SS188

$2.99

$

Usually ships in 2-12 days

0

3

Ferris 5418369

WELD, PARK BRAKE SHAFT ASSEMBLY

$106.99

$

Usually ships in 2-12 days

0

4

Ferris 5106529

SCR-CAP, HEX .250"-20 X 1.250" SS188

$2.99

$

Usually ships in 2-12 days

0

5

Ferris 5105977

NUT-HEX, JAM .250"-20 SS188

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5106684

SCR-CAP, HEX .250"-28 X 7.000" G5 ZP

$26.99

$

Usually ships in 2-12 days

0

7

Ferris 5106246

ROD END, 1/4-28 WITH STUD

$15.99

$

Usually ships in 2-12 days

0

8

Ferris 5105900

GRIP, .188" X 1.00" ID X .150" THK CLSD CELL FOAM

$16.99

$

Usually ships in 2-12 days

0

9

Ferris 5106685

E-RING, 0.625" SHAFT YZ

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5106687

SPCR-SS, 304 0.375" X 0.500" X .357"

$52.99

$

Usually ships in 2-12 days

0

11

Ferris 5106576

SCR-CAP, HEX .3125"-18 X 1.000" SS188

$2.99

$

Usually ships in 2-12 days

0

12

Ferris 5025649

SCR-CAP, HEX .375"-16 X 1.000" SS188

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5106168

WSHR-STL, FLT .406" X .875" X .050" IS SS188

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5106006

NUT-HEX-NYLK, .375"-16 SS188
(Superseded to 5106006FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5105789

PLATE, CONTACT, PARKING BRAKE SWITCH

$20.99

$

Usually ships in 2-12 days

0

16

Ferris 5418376

BRACKET, LINKAGE PARK BRAKE

$14.99

$

Usually ships in 2-12 days

0

17

Ferris 5105915

NUT-HEX-NYLK, .250"-20 TH SS188
(Superseded to 5105915FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5105889

SPRING, EXTENSION .64" OD X 4.00" LG SS

$12.99

$

Usually ships in 2-12 days

0

19

Ferris 5106223

SPRING, COMPRESSION .36 OD X 1.00 LG SS

$71.99

$

Usually ships in 2-12 days

0

20

Ferris 5106016

NUT-HEX, JAM .250"-28 SS188

$7.49

$

Usually ships in 2-12 days

0

21

Ferris 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.49

$

Usually ships in 2-12 days

0
