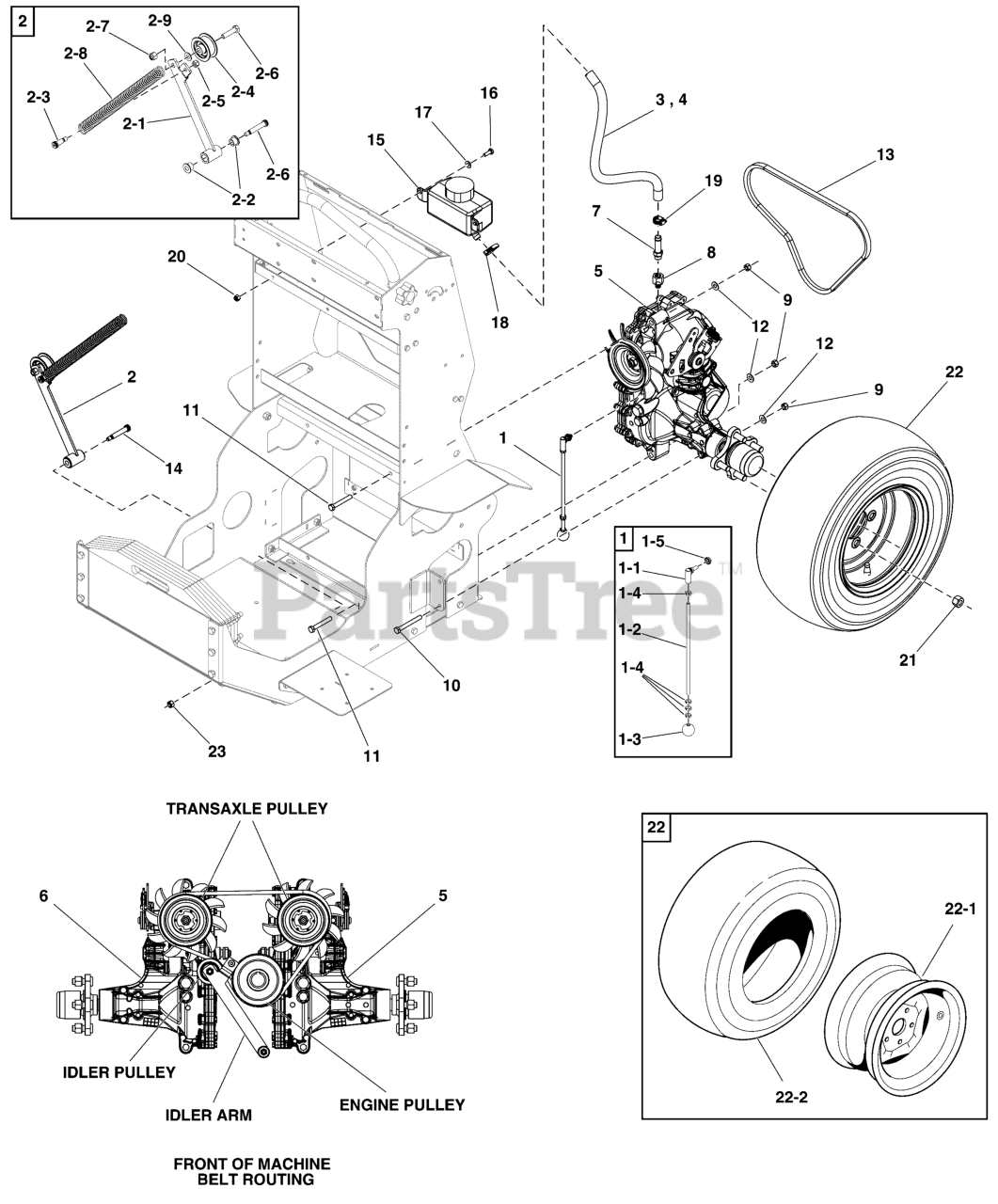

FS 3100 (5901754) - Ferris Venture Series Stand-On Spreader Power Transmission Group - S/N: 30000003664 and below Parts Diagram

Venture Series Stand-On Spreader

Power Transmission Group - S/N: 30000003664 and below Parts Diagram

  • Title

1

ASM, TRANSMISSION RELEASE

$

$

Not available

1-1

Ferris 5106658

ROD END, FEM 1/4-28 RH SS PTFE RACE STUD

$56.99

$

Usually ships in 2-12 days

0

1-2

Ferris 5106660

ROD, CONTROL 1/4-28 THD X 9.00" MZ

$74.99

$

In Stock, only 2 left!

0

1-3

Ferris 5106659

KNOB, BALL 1.000 OD W/1/4-28 INSERT

$10.99

$

Usually ships in 2-12 days

0

1-4

Ferris 5106016

NUT-HEX, JAM .250"-28 SS188

$7.49

$

Usually ships in 2-12 days

0

1-5

Ferris 5106742

NUT-HEX-FGLK.250"-28 SS188

$32.99

$

Usually ships in 2-12 days

0

2

ASM, IDLER ARM

$

$

Not available

2-1

Ferris 5422194

IDLER ARM W/ BUSHINGS

Note: (Includes item #2-2.)

$143.99

$

Usually ships in 2-12 days

0

2-2

Ferris 5106031

BUSHING, FLANGE 3/8 ID X 5/8 OD X 1/2 LG

$5.99

$

Usually ships in 2-12 days

0

2-3

Ferris 5106712

BLT-SLDR, SH .375" X 0.750", .3125"-18 X.500" G8ZY

$4.49

$

Usually ships in 2-12 days

0

2-4

Ferris 5108777

PULLEY IDLER 2.75" OD X 3/8" BORE

$66.99

$

Usually ships in 2-12 days

0

2-5

Ferris 5108891

NUT-HEX-NYLK, .260"-20 TH SS188

$2.99

$

Usually ships in 2-12 days

0

2-6

Ferris 5106518

SCR-CAP, HEX .375"-16 X 1.7500" SS188

$2.99

$

Usually ships in 2-12 days

0

2-7

Ferris 5106006

NUT-HEX-NYLK, .375"-16 SS188
(Superseded to 5106006FS)

$3.49

$

Usually ships in 2-12 days

0

2-8

Ferris 80090207

SPRING, SWIVEL HOOK, 9" X 1"

$57.99

$

Usually ships in 2-12 days

0

2-9

Ferris 5106168

WSHR-STL, FLT .406" X .875" X .050" IS SS188

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5106250

HOSE, L EXP TANK, 18.5" LONG

Note: (Connects to left expansion tank)

$16.99

$

Usually ships in 2-12 days

0

4

Ferris 5106251

HOSE, R EXP TANK, 18" LONG

Note: (Connects to right expansion tank)

$10.99

$

Usually ships in 2-12 days

0

5

Ferris 5106336

TRANSAXLE, ZT3100, LH, ZL-GMPP-3B7B-1PXX

Note: (S/N: 30000002448 and below)

$1102.99

$

Usually ships in 2-12 days

0

5

Ferris 5109248

TRANSAXLE, ZT3100, LH, ZL-GMPP-SB7B-1PXX

Note: (S/N: 30000002249 and above)

$1244.99

$

Usually ships in 2-12 days

0

6

Ferris 5106248

TRANSAXLE, ZT3100, RH, ZL-KMPP-3B7C-1PXX

Note: (S/N: 30000002448 and below)

$1067.99

$

Usually ships in 2-12 days

0

6

Ferris 5109244

TRANSAXLE, ZT3100, RH, ZL-KMPP-SB7C-1PXX

Note: (S/N: 30000002249 and above)

$1297.99

$

Usually ships in 2-12 days

0

7

Ferris 5106656

FITTING, 08HB - 06MORB STRAIGHT

$17.99

$

Usually ships in 2-12 days

0

8

Ferris 5106657

FITTING, 6410-04-06

$7.49

$

Usually ships in 2-12 days

0

9

Ferris 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5106550

SCR-CAP, HEX .3125"-18 X 2.750" SS188

$2.99

$

Usually ships in 2-12 days

0

11

Ferris 5106056

SCR-CAP, HEX .3125"-18 X 2.250" SS188

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5106009

WSHR-STL, FLT .343" X .750" X .050" SPC SS188

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5106715

BELT, V, AK36 38.00 OC OHR, KVR CD
(Superseded to 5110096)

$22.99

$

Usually ships in 2-12 days

0

14

Ferris 5106207

BLT-SLDR SH.375"X1.75".3125"-18 X.50" SS188

$15.99

$

Usually ships in 2-12 days

0

15

Ferris 5106692

HYDRO RES. # 71328, 350 ml
(Superseded to 5106938)

$62.99

$

Usually ships in 2-12 days

0

16

Ferris 5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5106067

WSHR-STL, FLT .281" X .625" X .050" IS SS188

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5106655

SNAP GRIP CLAMP .656 - .750 ID

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5106683

CLAMP, MINIATURE WORM GEAR MAH6

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5106040

NUT-HEX-NYLK, .250"-20 SS188
(Superseded to 5106040FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5105964

NUT-LUG, .500"-20 ZP

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5106247

ASM, WHEEL & TIRE 20" X 8.00" - 10 TURF

$201.99

$

Usually ships in 2-12 days

0

22-1

Ferris 5106247X2

WHEEL ONLY

Note: (One per tire)

$

$

Currently unavailable

22-2

Ferris 5106247X1

TIRE, 20" X 8.00" - 10 TURF

Note: (One per tire)

$

$

Currently unavailable

23

Ferris 5108891

NUT-HEX-NYLK, .260"-20 TH SS188

$2.99

$

Usually ships in 2-12 days

0
