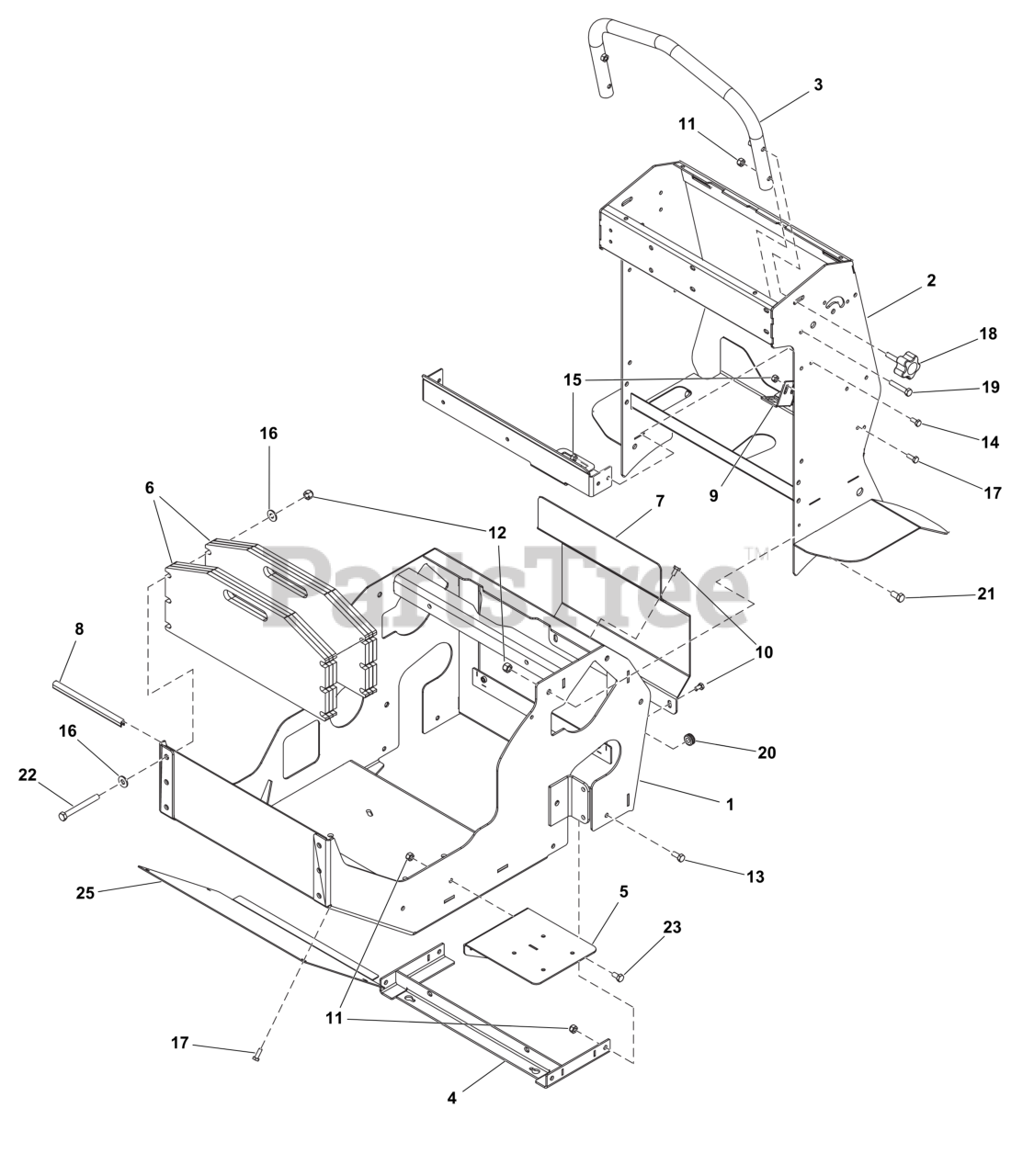

FS 3100 (5901754) - Ferris Venture Series Stand-On Spreader Main Frame Group S/N: 30000003686 and Above Parts Diagram

Venture Series Stand-On Spreader

Main Frame Group S/N: 30000003686 and Above Parts Diagram

  • Title
1

Ferris 5423027

WELD, MAIN FRAME LOWER

$2001.99

$

Usually ships in 2-12 days

0

2

Ferris 5418332

WELD, HAND CONTROLS

$723.99

$

Usually ships in 2-12 days

0

3

Ferris 5423459

WELD, STATIONARY HANDLEBAR

$46.99

$

Usually ships in 2-12 days

0

4

Ferris 5418345

WELD, LOWER MOUNT TRANSAXLE

$88.99

$

Usually ships in 2-12 days

0

5

Ferris 5418365

WELD, BATTERY SUPPORT PLATE

$79.99

$

Usually ships in 2-12 days

0

6

Ferris 5418384

WELD, PLATE COUNTER WEIGHT

$225.99

$

Usually ships in 2-12 days

0

7

Ferris 5422527

PLATE, BACK W/ EXTENSION (SANDED)

$261.99

$

Usually ships in 2-12 days

0

8

TRIM FOR CONSOLE HEAVY DUTY, 7 INCH

$

$

Not available

9

Ferris 5105788

PLATE, PARKING BRAKE SWITCH

$21.99

$

Usually ships in 2-12 days

0

10

Ferris 5105893

SCR-CAP, HEX .250"-20 X .500" SS188

$3.49

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5106029

SCR-CAP, HEX .250"-20 X .625" SS188

$3.49

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5107649

WSHR-SS, FLT .375"X.875"X.083" USS

$2.49

$

Usually ships in 2-12 days

0

17

Ferris 5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5106279

KNOB, STATIONARY CONTROL BAR

$16.99

$

Usually ships in 2-12 days

0

19

Ferris 5106293

SCR-CAP, HEX .3125"-18 X 1.750" SS188

$2.99

$

Usually ships in 2-12 days

0

20

Ferris 5106454

GROMMET, 0.375" I.D., FIT 0.500" HOLE

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5106580

SCR-CAP, HEX .375"-16 X .750" SS188

$2.99

$

Usually ships in 2-12 days

0

22

Ferris 5106648

SCR-CAP, HEX .375"-16 X 3.500" SS188

$2.99

$

Usually ships in 2-12 days

0

23

Ferris 5106649

SCR-CAP, HEX .3125"-18 X .625" SS188

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5418342

BRACKET, EXPANSION TANK MOUNT

$60.99

$

Usually ships in 2-12 days

0

25

Ferris 5423046

PLATE, FRONT ENGINE COVER

$107.99

$

Usually ships in 2-12 days

0
