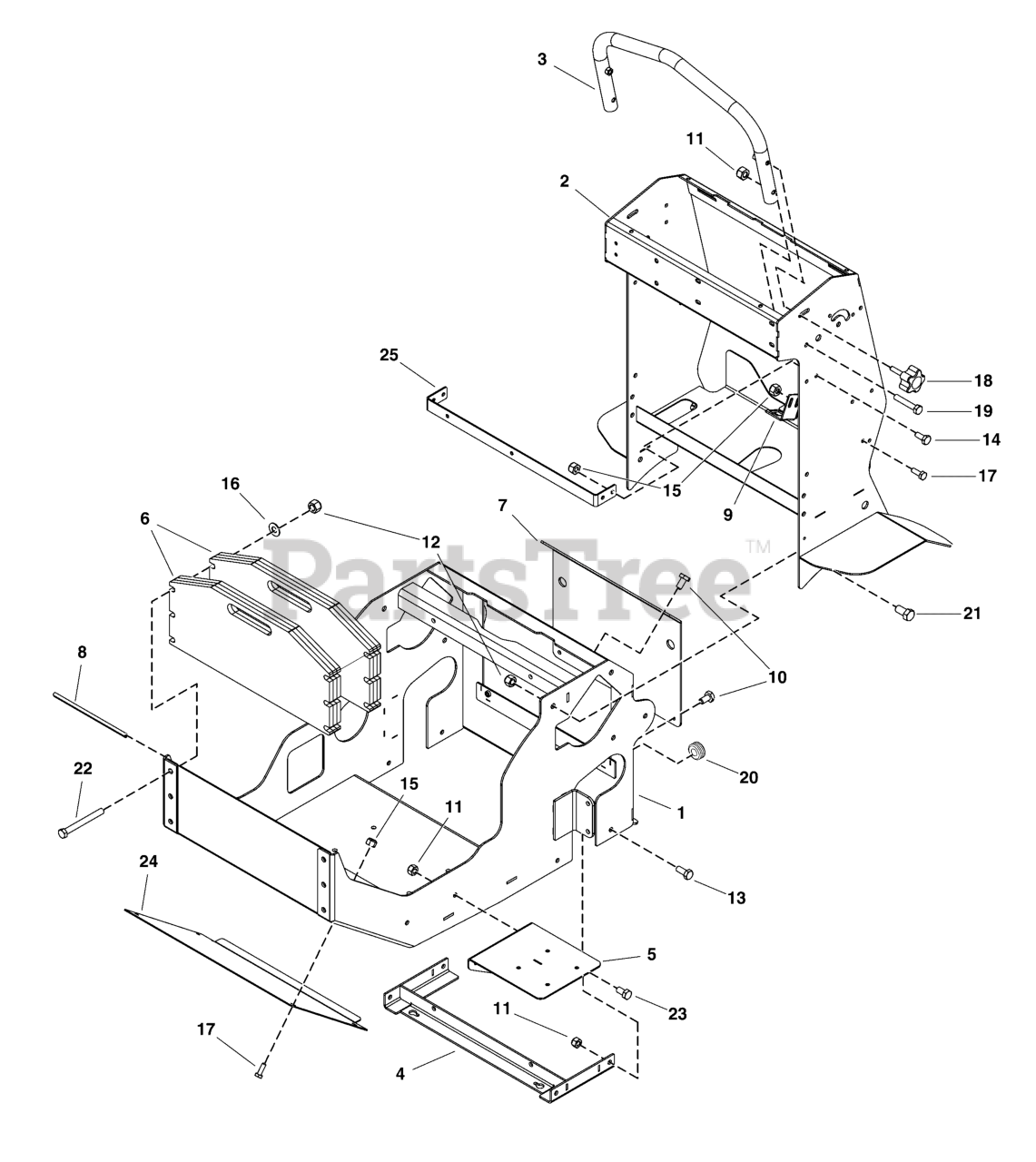

FS 3100 (5901754) - Ferris Venture Series Stand-On Spreader Main Frame Group S/N: 30000003685 and Below Parts Diagram

Venture Series Stand-On Spreader

Main Frame Group S/N: 30000003685 and Below Parts Diagram

  • Title

1

Ferris 5418316

WELD, MAIN FRAME LOWER

$

$

Currently unavailable

2

Ferris 5418332

WELD, HAND CONTROLS

$723.99

$

Usually ships in 2-12 days

0

3

Ferris 5418344

WELD, STATIONARY HANDLEBAR

$96.99

$

Usually ships in 2-12 days

0

4

Ferris 5418345

WELD, LOWER MOUNT TRANSAXLE

$88.99

$

Usually ships in 2-12 days

0

5

Ferris 5418365

WELD, BATTERY SUPPORT PLATE

$79.99

$

Usually ships in 2-12 days

0

6

Ferris 5418384

WELD, PLATE COUNTER WEIGHT

$225.99

$

Usually ships in 2-12 days

0

7

Ferris 5418489

PLATE, BACK, (SANDED)

$100.99

$

Usually ships in 2-12 days

0

8

Ferris 5418427

TRIM FOR CONSOLE, 7 INCH

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5105788

PLATE, PARKING BRAKE SWITCH

$21.99

$

Usually ships in 2-12 days

0

10

Ferris 5105893

SCR-CAP, HEX .250"-20 X .500" SS188

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5106006

NUT-HEX-NYLK, .375"-16 SS188
(Superseded to 5106006FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5106029

SCR-CAP, HEX .250"-20 X .625" SS188

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5106040

NUT-HEX-NYLK, .250"-20 SS188
(Superseded to 5106040FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5106168

WSHR-STL, FLT .406" X .875" X .050" IS SS188

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5106279

KNOB, STATIONARY CONTROL BAR

$16.99

$

Usually ships in 2-12 days

0

19

Ferris 5106293

SCR-CAP, HEX .3125"-18 X 1.750" SS188

$2.99

$

Usually ships in 2-12 days

0

20

Ferris 5106454

GROMMET, 0.375" I.D., FIT 0.500" HOLE

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5106580

SCR-CAP, HEX .375"-16 X .750" SS188

$2.99

$

Usually ships in 2-12 days

0

22

Ferris 5106648

SCR-CAP, HEX .375"-16 X 3.500" SS188

$2.99

$

Usually ships in 2-12 days

0

23

Ferris 5106649

SCR-CAP, HEX .3125"-18 X .625" SS188

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5418325

PLATE, FRONT ENGINE COVER

$59.99

$

Usually ships in 2-12 days

0

25

Ferris 5418342

BRACKET, EXPANSION TANK MOUNT

$60.99

$

Usually ships in 2-12 days

0
