FS 3100 (5901754) - Ferris Venture Series Stand-On Spreader Fuel Tank Group Parts Diagram

Venture Series Stand-On Spreader

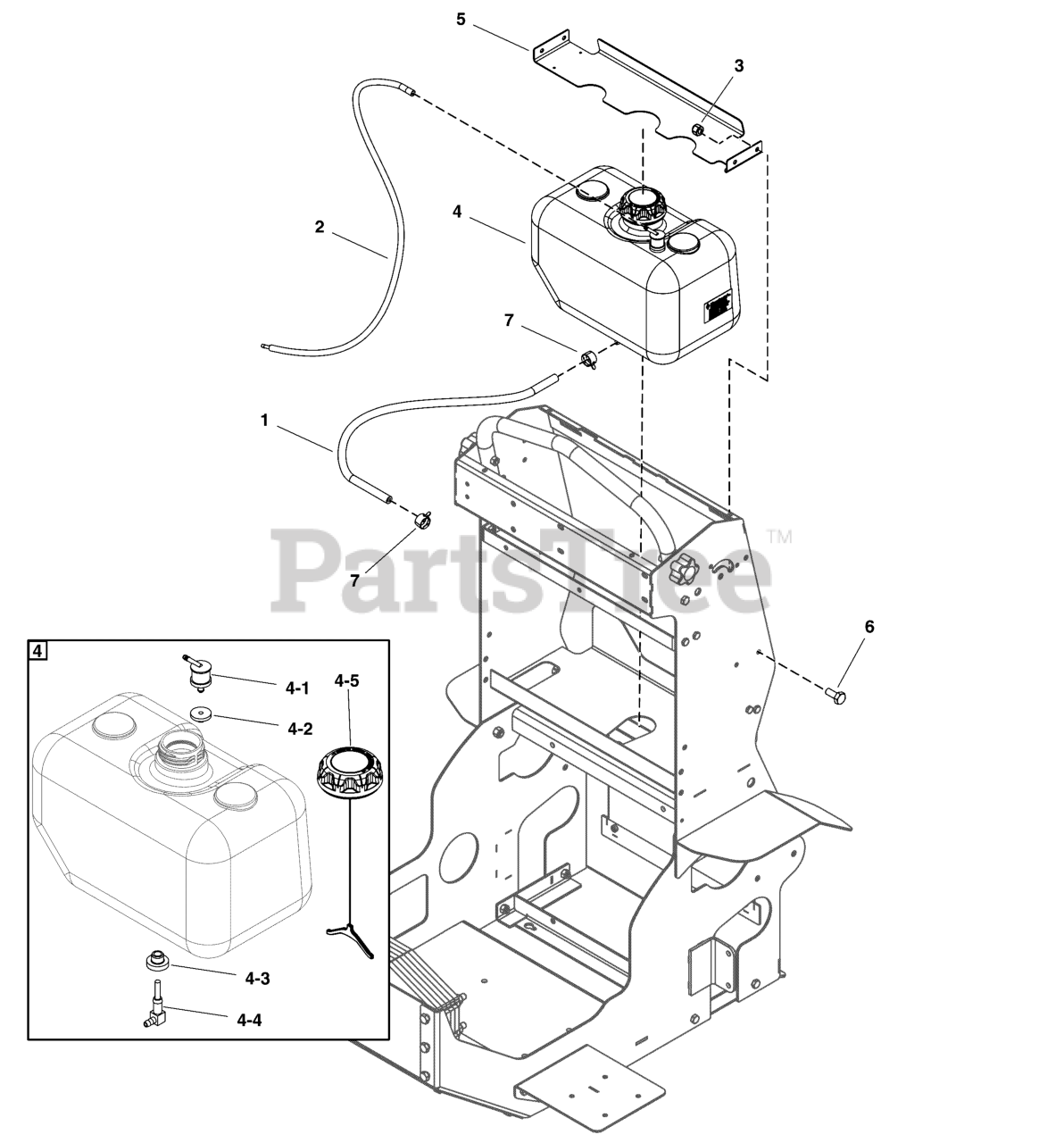

Fuel Tank Group Parts Diagram

  • Title

1

Ferris 5050831X14

1/4" Fuel Line, 14" Long

Note: (Connects to Engine)

$

$

Currently unavailable

2

Ferris 5418428

HOSE, FUEL VENT EPA 3/16" ID

$10.99

$

Usually ships in 2-12 days

0

3

Ferris 5106040

NUT-HEX-NYLK, .250"-20 SS188
(Superseded to 5106040FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5105974

TANK, FUEL 2.5 GAL EPA/CARB

Note: (Includes items 1-1 through 1-5)

$269.99

$

Usually ships in 2-12 days

0

4-1

Ferris 5106225

VALVE, SLOSH (C0155)

Note: (SV)

$29.99

$

Usually ships in 2-12 days

0

4-2

Ferris 5106176

GROMMET, SLOSH VALVE (C0156)

Note: (SV)

$11.99

$

Usually ships in 2-12 days

0

4-3

Ferris 5105885

GROMMET, VALVE, FUEL TANK (B0142)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

4-4

Ferris 5105993

FITTING, FUEL TANK (B0115)

Note: (SV)

$32.99

$

Usually ships in 2-12 days

0

4-5

Ferris 5106070

CAP, FUEL, EPA (C0139)

Note: (SV)

$31.99

$

Usually ships in 2-12 days

0

5

Ferris 5418368

BRACKET, FUEL TANK HOLD DOWN

$37.99

$

Usually ships in 2-12 days

0

6

Ferris 5106029

SCR-CAP, HEX .250"-20 X .625" SS188

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 791164

CLAMP, FUEL LINE 0.50"

$1.99

$

Usually ships in 2-12 days

0
