FS 2100 (5901752) - Ferris Pathfinder Series Stand-On Spreader Main Frame Group Parts Diagram

Pathfinder Series Stand-On Spreader

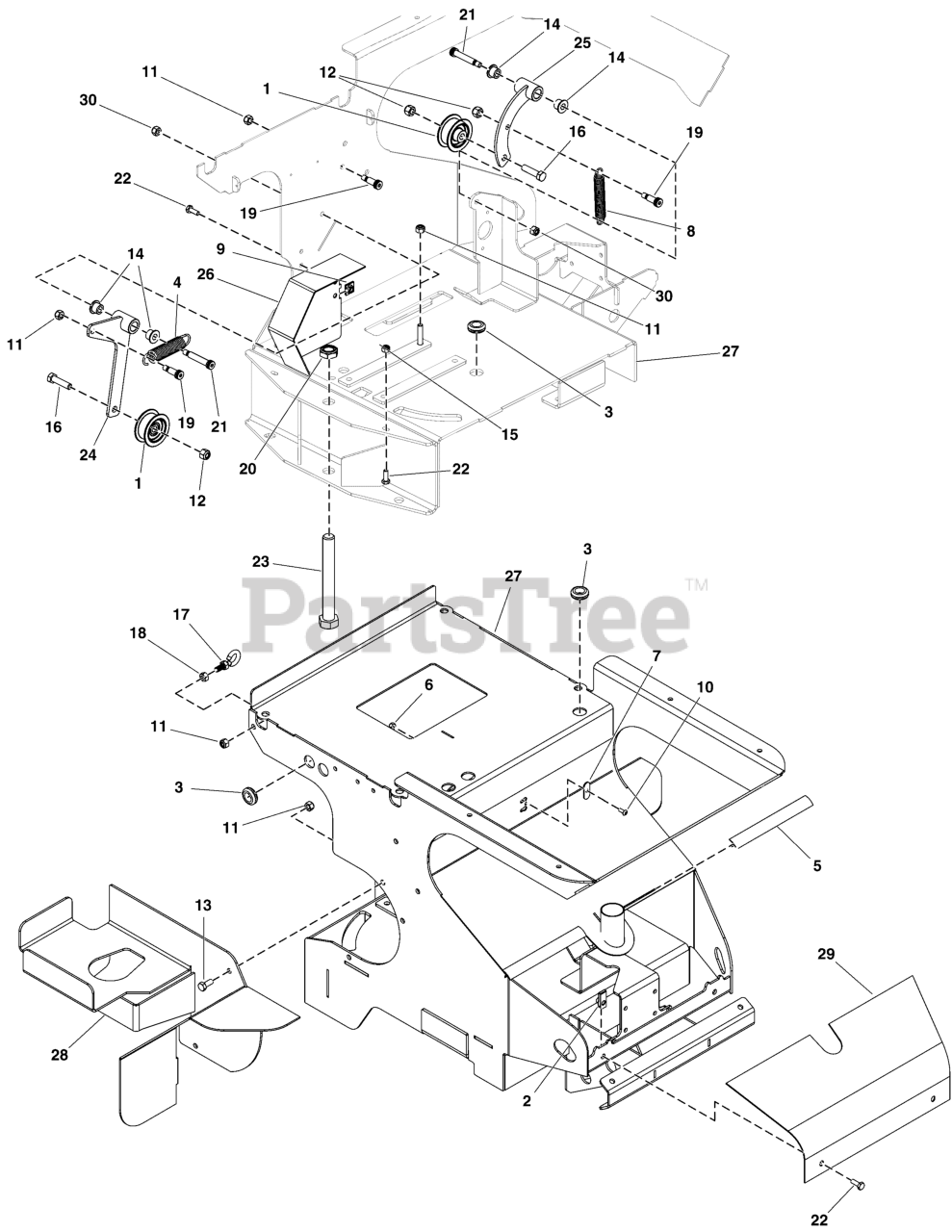

Main Frame Group Parts Diagram

  • Title

1

Ferris 5105890

PULLEY IDLER 1.75" OD X 3/8" BORE

$28.99

$

Usually ships in 2-12 days

0

2

Ferris 5105898

NUT-CLIP .250"-20 X .781" EDGE DISTANCE
(Superseded to 5105898FS)

$3.49

$

In Stock, only 2 left!

0

3

Ferris 5105899

GROMMET, .875" HOLE X .625" ID X .125 GROOVE

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5105946

SPRING, EXTENSION .840" OD X 4.00" LONG SS

$11.99

$

In Stock, only 2 left!

0

5

Ferris 5105954

SEAL TRIM, FRONT COWL 6.820" LONG

$5.49

$

In Stock, only 3 left!

0

6

Ferris 5105963

NUT-HEX-NYLK, #10-24 SS188
(Superseded to 5105963FS)

$2.49

$

Usually ships in 2-12 days

0

7

Ferris 5105969

PLATE, CABLE HOLDER

$8.49

$

Usually ships in 2-12 days

0

8

Ferris 5105972

SPRING, EXTENSION .64" OD X 4.00" LG SS

$12.99

$

Usually ships in 2-12 days

0

9

Ferris 5105973

NUT-CLIP, .250"-20 X .375" EDGE DISTANCE

$7.49

$

Usually ships in 2-12 days

0

10

Ferris 5105978

SCR-CAP, BSH #10-24 X .500" SS188

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5106006

NUT-HEX-NYLK, .375"-16 SS188
(Superseded to 5106006FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5108816

BSHG-FL, .500" X .625" X .500", .875"x .062" IR

$8.99

$

Usually ships in 2-12 days

0

15

Ferris 5106040

NUT-HEX-NYLK, .250"-20 SS188
(Superseded to 5106040FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5106069

SCR-CAP, HEX .375"-16 X 1.500" SS188

$9.99

$

In Stock, only 1 left!

0

17

Ferris 5106082

BOLT EYE, .3125"-18 X 1.000" SS188

$9.99

$

Usually ships in 2-12 days

0

18

Ferris 5106159

NUT-HEX, .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5106172

BLT-SLDR, SH .38"X0.75,.313-18 X.50 SS

$7.49

$

Usually ships in 2-12 days

0

20

Ferris 5106184

NUT-HEX-NYLK, .750"-10 TH GA ZP
(Superseded to 5106184FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5107641

BLT-SLDR,SH.50"X1.25",.375"-16X.63"SS188

$12.99

$

Usually ships in 2-12 days

0

22

Ferris 5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5106215

SCR-CAP, HEX .750"-10 X 6.000" SS188

$35.99

$

Usually ships in 2-12 days

0

24

Ferris 5106217

ASSY, IDLER ARM, LARGE PATH (S0108)

Note: (Serial Number 30000003467 & Below)(Refer to Note: *)

$162.99

$

Usually ships in 2-12 days

0

24

Ferris 5106291

WELD, ARM IDLER PATHFINDER

Note: (Serial Number 30000003468 & Above)

$117.99

$

Usually ships in 2-12 days

0

25

Ferris 5106292

WELD, ARM, SMALL IDLER

$111.99

$

Usually ships in 2-12 days

0

26

Ferris 5418065

WELD, COVER, PULLEY

$56.99

$

Usually ships in 2-12 days

0

27

WELD, FRAME

$

$

Not available

28

Ferris 5418130

WELD, FUEL TANK MOUNT

$337.99

$

Usually ships in 2-12 days

0

29

Ferris 5418874

PANEL, FRONT COWL

$73.99

$

Usually ships in 2-12 days

0

30

Ferris 5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$3.99

$

Usually ships in 2-12 days

0
