FS 2100 (5901752) - Ferris Pathfinder Series Stand-On Spreader Fuel Tank and Mount Group Parts Diagram

Pathfinder Series Stand-On Spreader

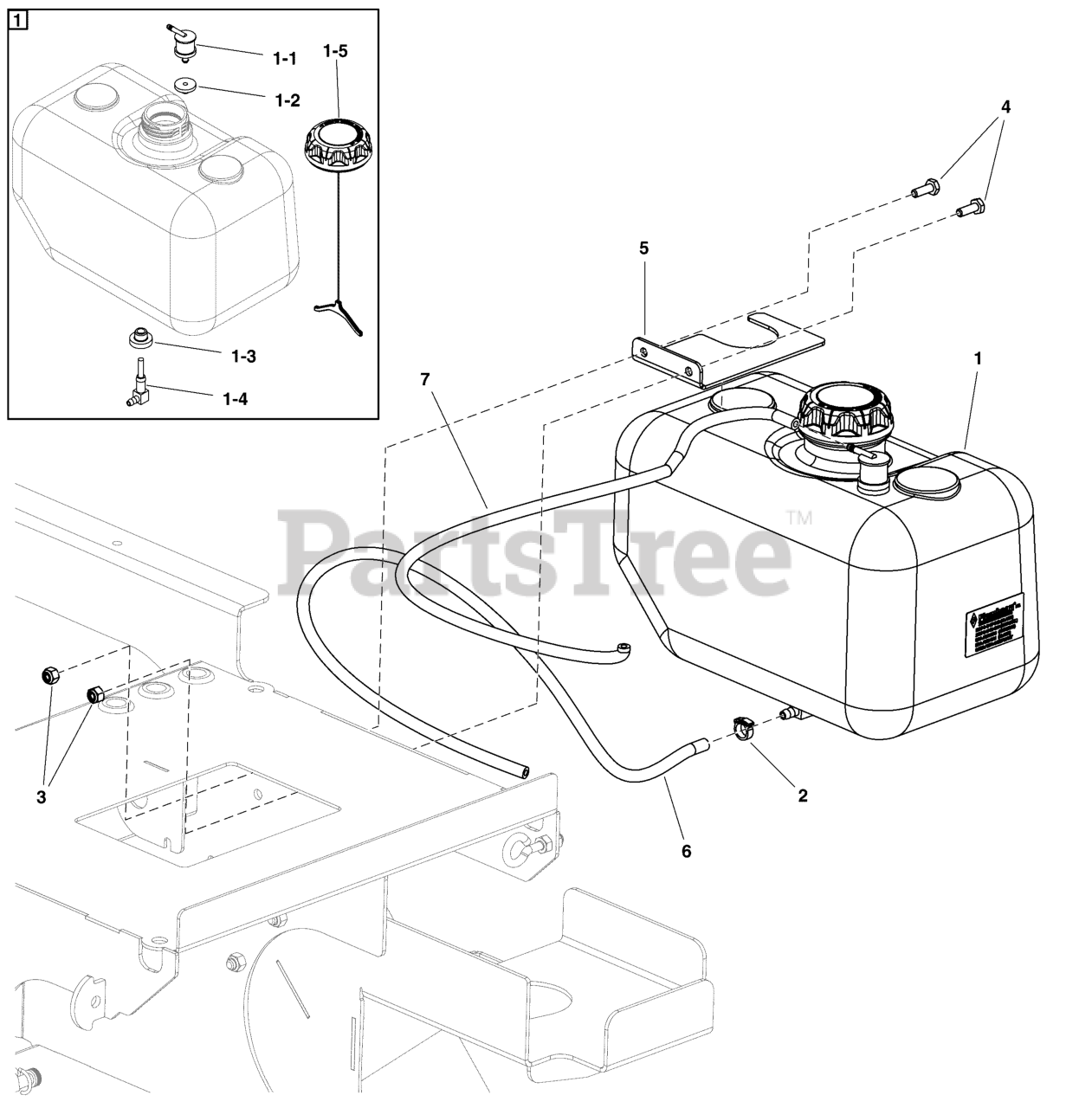

Fuel Tank and Mount Group Parts Diagram

  • Title

1

Ferris 5105974

TANK, FUEL 2.5 GAL EPA/CARB

Note: (Includes items 1-1 through 1-5)

$269.99

$

Usually ships in 2-12 days

0

1-1

Ferris 5106225

VALVE, SLOSH (C0155)

Note: (SV)

$29.99

$

Usually ships in 2-12 days

0

1-2

Ferris 5106176

GROMMET, SLOSH VALVE (C0156)

Note: (SV)

$11.99

$

Usually ships in 2-12 days

0

1-3

Ferris 5105885

GROMMET, VALVE, FUEL TANK (B0142)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

1-4

Ferris 5105993

FITTING, FUEL TANK (B0115)

Note: (SV)

$32.99

$

Usually ships in 2-12 days

0

1-5

Ferris 5106070

CAP, FUEL, EPA (C0139)

Note: (SV)

$31.99

$

Usually ships in 2-12 days

0

2

Ferris 5106037

CLAMP, 3/16 FUEL LINE

$36.99

$

Usually ships in 2-12 days

0

3

Ferris 5106040

NUT-HEX-NYLK, .250"-20 SS188
(Superseded to 5106040FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5106295

BRACKET, HOLD DOWN, FUEL TANK

$24.99

$

Usually ships in 2-12 days

0

6

Ferris 5418426

LINE, FUEL 3/16" ID X 15.0"

$9.99

$

Usually ships in 2-12 days

0

7

Ferris 5418428

HOSE, FUEL VENT EPA 3/16" ID

$10.99

$

Usually ships in 2-12 days

0
