FS 1200 (5902000) - Ferris Rover XC Series Stand-On Spreader Power Transmission Group Parts Diagram

Rover XC Series Stand-On Spreader

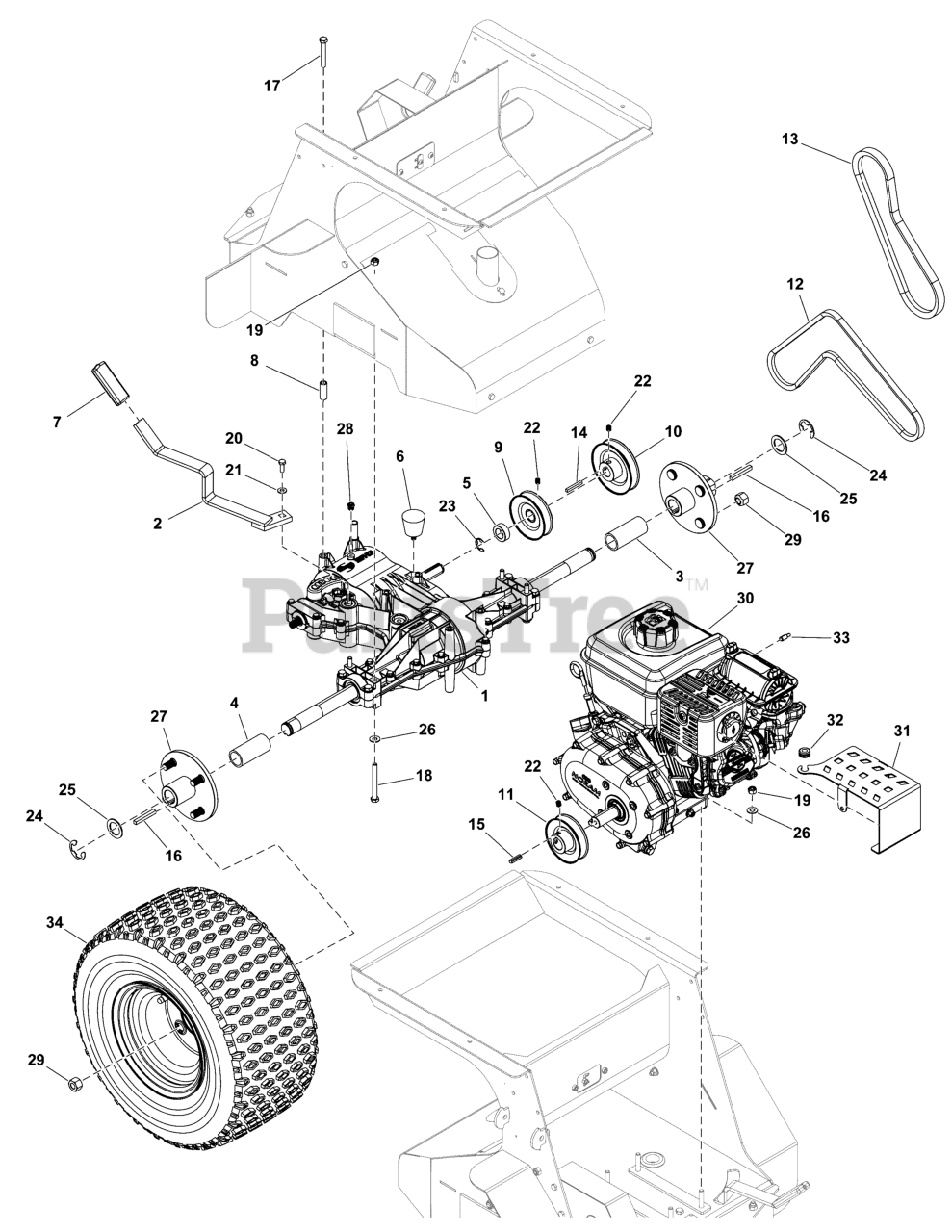

Power Transmission Group Parts Diagram

  • Title

1

Ferris 5105934

TRANSMISSION, PEERLESS 855-007D

$2371.99

$

Usually ships in 2-12 days

0

2

Ferris 5106010

WELD,LEVER,GEAR SHIFT, ROVER

$76.99

$

In Stock, only 2 left!

0

3

Ferris 5105976

SPCR-PVC 1.049" X 1.315" X 3.000

$8.49

$

Usually ships in 2-12 days

0

4

Ferris 5105991

SPCR-PVC 1.049" X 1.315" X 2.850"

$8.49

$

Usually ships in 2-12 days

0

5

Ferris 5106259

SPCR-UHMW .765" X 1.250" X .450"

$13.99

$

In Stock, only 2 left!

0

6

Ferris 5106216

BUMPER, 1.188OD X 1.50LG W/.3125-18 STUD

$20.99

$

Usually ships in 2-12 days

0

7

Ferris 5105900

GRIP, .188" X 1.00" ID X .150" THK CLSD CELL FOAM

$16.99

$

Usually ships in 2-12 days

0

8

Ferris 5106235

SPCR-SS, 304 0.370" X 0.500" X 1.350"

$10.99

$

Usually ships in 2-12 days

0

9

Ferris 5105968

PULLEY, 3.50" O.D. x 0.750" I.D. V, A/B

$48.99

$

In Stock, only 1 left!

0

10

Ferris 5106498

PULLEY, 4.00" O.D. x 0.750" I.D. V, A/B

$62.99

$

Usually ships in 2-12 days

0

11

Ferris 5106499

PULLEY, 3.50" O.D. x 0.875" I.D. V, A/B

Note: (S/N: 30000003969 and below)

$60.99

$

Usually ships in 2-12 days

0

11

Ferris 84008431

PULLEY, Crankshaft

Note: (S/N: 30000003970 and above)

$

$

Currently unavailable

12

Ferris 5105987

BELT, A-SEC, A39
(Superseded to 5105987FS)

$27.99

$

In Stock, only 2 left!

0

13

Ferris 5105988

BELT, V, B 29.80EL OHR ETH, PLY CD
(Superseded to 5105988FS)

$36.99

$

Usually ships in 2-12 days

0

14

Ferris 5106038

KEY, .188" SQ. X 1.50" SS303

$4.99

$

Usually ships in 2-12 days

0

15

Ferris 5105970

KEY, .188"-.250" STEPPED X 1.00" LONG SS 304

Note: (S/N: 30000003969 and below)

$18.99

$

Usually ships in 2-12 days

0

15

Ferris 84008432

KEY, Drive Pulley

Note: (S/N: 30000003970 and above)

$4.99

$

In Stock, only 2 left!

0

16

Ferris 5105938

KEY, .250" SQ. X 2" SS188

$5.99

$

Usually ships in 2-12 days

0

17

Ferris 5106056

SCR-CAP, HEX .3125"-18 X 2.250" SS188

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5105980

SCR-CAP, HEX .3125"-18 X 3.000" SS188

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5106032

SCR-CAP, HEX .250"-28 X 0.750" SS188

$3.49

$

In Stock, only 4 left!

0

21

Ferris 84008081

WSHR-SS, BLV .281"X.875"x.066

$

$

Currently unavailable

22

Ferris 5106185

SCR-SH, SET .3125"-18 X .375" KCPT SS188

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5105882

E-RING, .750" SHAFT YZ

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5105909

E-RING, 1.000" SHAFT YZ

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5105936

WSHR-STL, FLT 1.000"X1.500"X.075" MAB ZP

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5106009

WSHR-STL, FLT .343" X .750" X .050" SPC SS188

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5105920

HUB, 1.00" BORE 4-BOLT X 4.00" BC

$78.99

$

Usually ships in 2-12 days

0

28

Ferris 5106299

BREATHER VENT, .125"-27 PFT X .4375" HEX

$14.99

$

Usually ships in 2-12 days

0

29

Ferris 5105964

NUT-LUG, .500"-20 ZP

$3.49

$

Usually ships in 2-12 days

0

30

ENGINE, Briggs & Stratton Vanguard 169cc, 10V362-0031-F1

$

$

Not available

31

Ferris 5109539

PLATE, MUFFLER SHIELD VG160 STAMPED MFLR

$

$

Currently unavailable

32

Ferris 5106454

GROMMET, 0.375" I.D., FIT 0.500" HOLE

$3.99

$

Usually ships in 2-12 days

0

33

Ferris 5108652

CONNECTOR, FEMALE BLT 14-16 AWG

Note: (This connector is crimped to an engine wire and the wire harness plugs into it.)

$

$

Currently unavailable

34

Ferris 5418044

ASM, WHEEL&TIRE 18" X 9.50" W/ANTI-FREEZE

$337.99

$

Usually ships in 2-12 days

0
