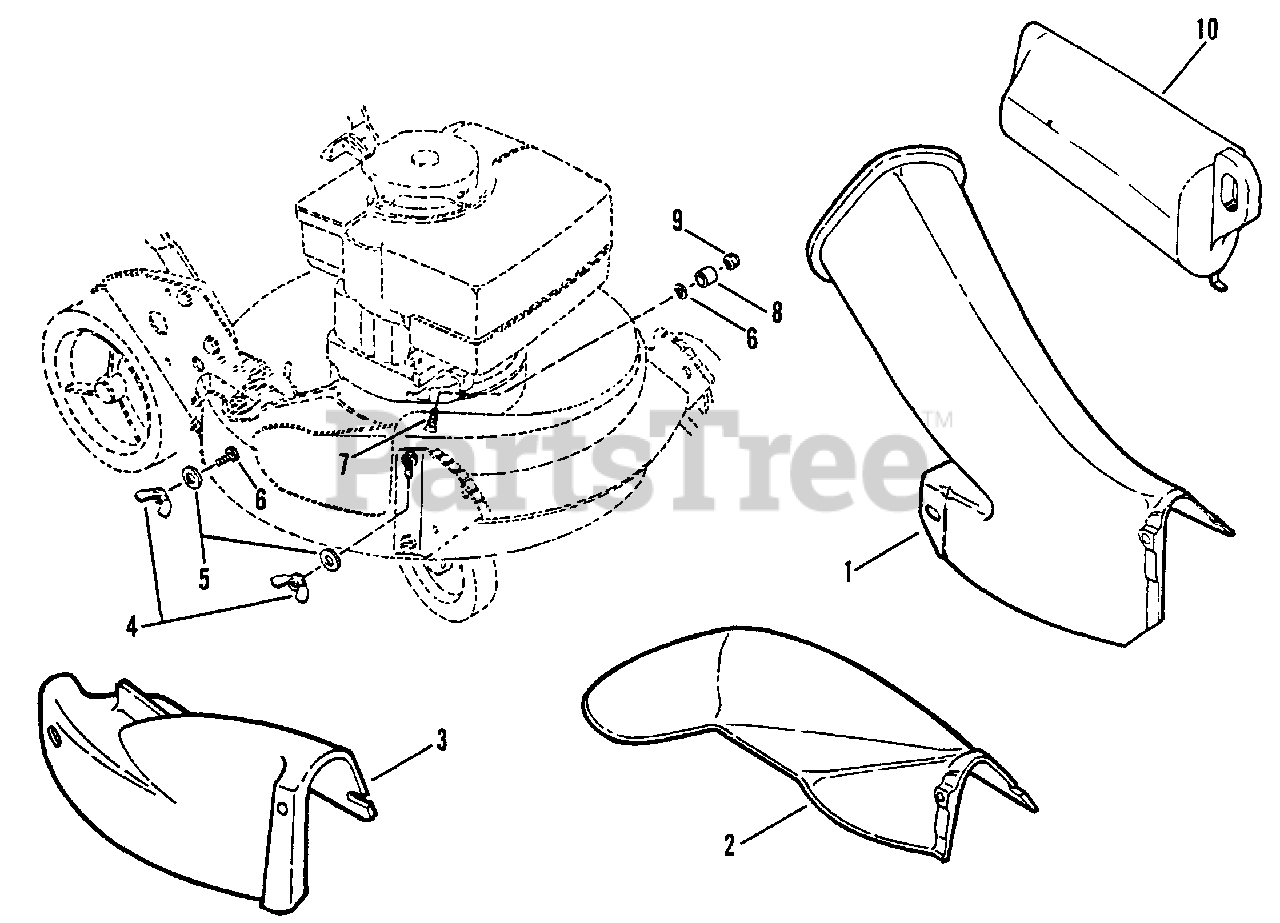

FRP 216012E (82401) - Snapper 21" Walk-Behind Mower, 6hp Side Chute, Adapter Parts Diagram

21" Walk-Behind Mower, 6hp

Side Chute, Adapter Parts Diagram

  • Title

1

Snapper 7016050

ADAPTER, Grass Bag
(Superseded to 7016050YP)

$90.99

$

Usually ships in 2-12 days

0

2

Snapper 7042965

KIT, Side Chute
(Superseded to 7042965YP)

Note: Was 60955

$53.99

$

Usually ships in 2-12 days

0

3

Snapper 7029149

COVER, Mulching (21" Cutting Deck)
(Superseded to 7029149YP)

$33.99

$

In Stock, Qty 20+

0

4

Snapper 7024085

WING-NUT, 5/16-18 Nyloc
(Superseded to 704320)

$4.99

$

In Stock, Qty 12

0

5

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091508

BOLT, 5/16-18 x 3/4 Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

8

Snapper 7024340

SPACER
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

9

Snapper 7090951

NUT, 5/16-18 Hex Flange, Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

10

Snapper 7016814

PLUG, Chute Adapter
(Superseded to 7016814YP)

$49.99

$

In Stock, only 3 left!

0
