FRP 216012E (82401) - Snapper 21" Walk-Behind Mower, 6hp Handles & Controls (Swivel Wheel Model) Parts Diagram

21" Walk-Behind Mower, 6hp

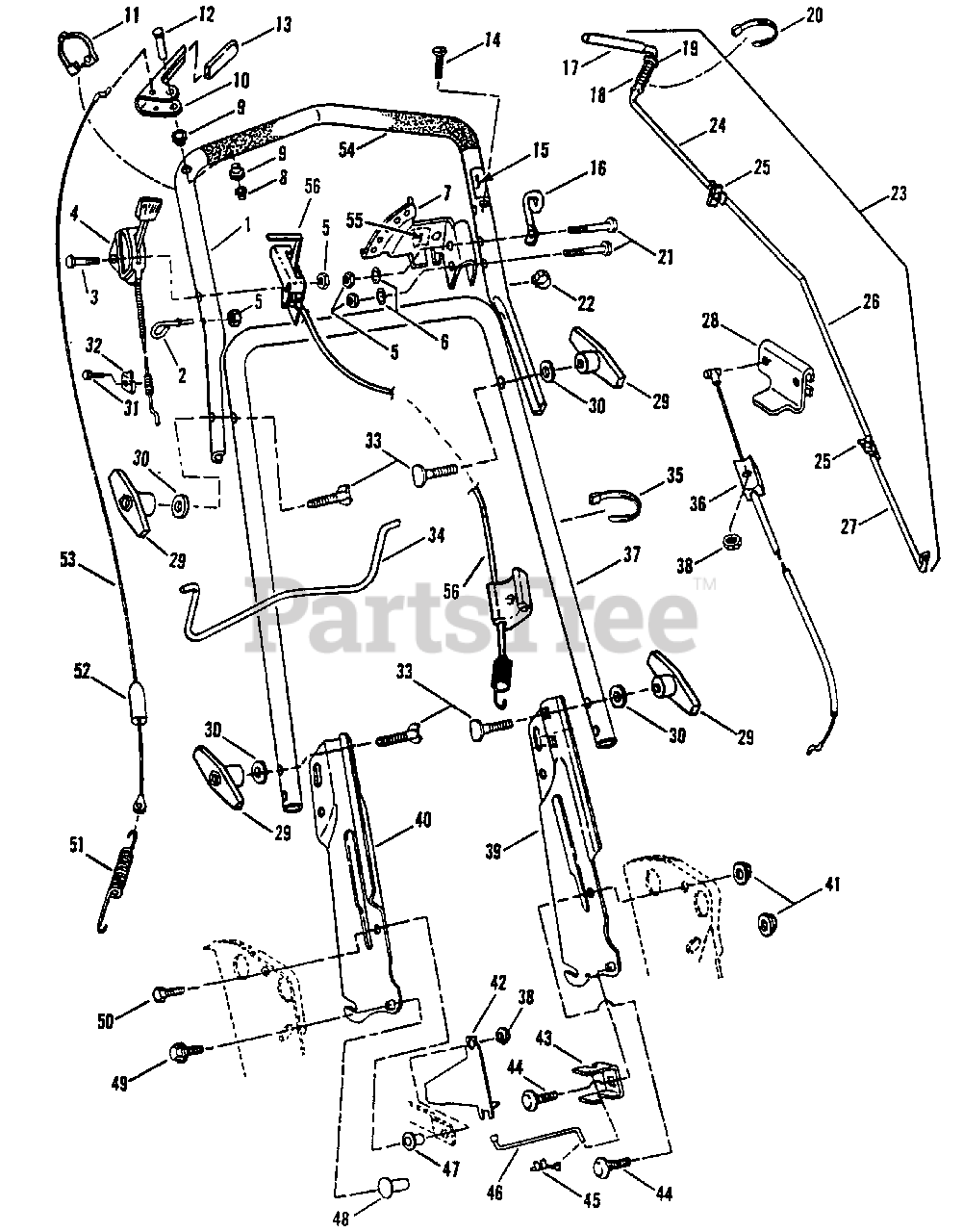

Handles & Controls (Swivel Wheel Model) Parts Diagram

  • Title

1

Snapper 7046914

HANDLE, Upper

$63.99

$

Usually ships in 2-12 days

0

2

Snapper 7046465

GUIDE, Pull Rope (Right Side)
(Superseded to 7046465SM)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7091813

SCREW, 1/4-20 x 1-3/4 Hex Head Cap, Grade 5
(Superseded to 7091003YP)

Note: Was 91222

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7029036

CONTROL, Throttle 48.0"
(Superseded to 7029036YP)

$22.99

$

In Stock, Qty 8

0

5

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 91100

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

7

Snapper 7038478

SECTOR, Speed
(Superseded to 7038478YP)

$82.99

$

Usually ships in 2-12 days

0

8

Snapper 7091020

PUSH-NUT
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7032826

HANDLE, Wheel Drive
(Superseded to 7074473BMYP)

$16.99

$

In Stock, Qty 20+

0

11

Snapper 7026219

CLAMP, 7/8" Double Cable
(Superseded to 7026219YP)

$4.49

$

In Stock, Qty 10

0

12

Snapper 7023792

PIN, Clutch Cable
(Superseded to 704031)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7014307

GRIP, Wheel Drive Handle
(Superseded to 7014307YP)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7090545

SCREW, 5/16-24 x 1-1/2" Machine, Grade 5

$

$

Not available

15

Snapper 7024211

DECAL, Blade Control (Left Side)
(Superseded to 7024211YP)

$14.99

$

In Stock, Qty 5

0

16

Snapper 7022779

GUIDE, Pull Rope (Left Side)
(Superseded to 7022779YP)

$7.49

$

Usually ships in 2-12 days

0

17

Snapper 7023801

GRIP, Speed Control Handle
(Superseded to 7023801YP)

$4.49

$

In Stock, Qty 6

0

18

Snapper 7012093

SPRING, Speed Control
(Superseded to 7012093YP)

$4.49

$

In Stock, only 4 left!

0

19

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

20

Snapper 7024649

TIE, Wire
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

21

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

22

Snapper 7023813

CLIP, Cable Wiring
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7029217

ASSEMBLY, Speed Control Lever
(Superseded to 7029217YP)

Note: (Includes items 24 thru 27)

$179.99

$

Usually ships in 2-12 days

0

24

Snapper 7029217

ROD, Upper
(Superseded to 7029217YP)

Note: Was 29153

$179.99

$

Usually ships in 2-12 days

0

25

Snapper 7029161

WING-NUT, 1/4-20
(Superseded to 7029161YP)

$2.99

$

In Stock, only 4 left!

0

26

Snapper 7029217

ROD, Intermediate
(Superseded to 7029217YP)

Note: Was 29154

$179.99

$

Usually ships in 2-12 days

0

27

Snapper 7029217

ROD, Lower
(Superseded to 7029217YP)

Note: Was 29155

$179.99

$

Usually ships in 2-12 days

0

28

Snapper 7033904

CLIP, Blade Control
(Superseded to 7034872YP)

$5.99

$

In Stock, Qty 5

0

29

Snapper 7035744

T-KNOB, 5/16-18 Thread
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7023154

SCREW, #10-32 x 5/8" Hex Head Cap
(Superseded to 7023154YP)

$

$

Not available

32

Snapper 7023153

CLAMP, Casing
(Superseded to 7023153YP)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper 7091740

SCREW, 5/16-18 x 1-7/8" Curved Head, Grade 2
(Superseded to 7091740SM)

Note: Was 91189

$3.49

$

In Stock, Qty 12

0

34

Snapper 7024978

BAIL, OPC Control (16.6" Wide)
(Superseded to 7024978YP)

$49.99

$

Usually ships in 2-12 days

0

35

Snapper 7024641

TIE, Wire
(Superseded to 7024641YP)

$5.99

$

In Stock, only 1 left!

0

36

Snapper 7025036

CABLE, Blade Control
(Superseded to 7025036YP)

$19.99

$

In Stock, only 1 left!

0

37

Snapper 7024890

HANDLE, Middle
(Superseded to 7024890YP)

$152.99

$

Usually ships in 2-12 days

0

38

Snapper 7091606

NUT, 5/16-24 Hex Center Lock, Grade 5
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7033985

BRACKET, Middle Handle (Left Side)
(Superseded to 7033985AYP)

$43.99

$

Usually ships in 2-12 days

0

40

Snapper 7033986

BRACKET, Middle Handle (Right Side)
(Superseded to 7033986AYP)

$36.99

$

In Stock, only 4 left!

0

41

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

42

Snapper 7032408

GUIDE, Lower V-Belt
(Superseded to 7032408YP)

$26.99

$

Usually ships in 2-12 days

0

43

Snapper 7034892

ANCHOR, Speed Control
(Superseded to 7034892YP)

$30.99

$

Usually ships in 2-12 days

0

44

Snapper 7090799

BOLT, 5/16-18 x 5/8" Carriage, Grade 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7010937

CLIP, Transfer Rod
(Superseded to 7010937YP)

$7.49

$

In Stock, Qty 5

0

46

Snapper 7023790

ROD, Transfer
(Superseded to 7023790YP)

$9.49

$

In Stock, Qty 11

0

47

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 9

0

48

Snapper 7090895

TEE-NUT, 5/16-18 Thread
(Superseded to 7090895YP)

$3.49

$

Usually ships in 2-12 days

0

49

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock, Grade 5
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

50

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

51

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

52

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

$

$

Not available

53

Snapper 7025013

CABLE, Clutch Pull (Z-Bend)
(Superseded to 7025013YP)

$17.99

$

In Stock, Qty 20+

0

54

Snapper 7022460

GRIP, Foam

$

$

Not available

55

Snapper 7024087

DECAL, Speed Select

$

$

Not available

56

Snapper 7046669

CABLE, Swivel Lock
(Superseded to 7072023YP)

$

$

Not available
