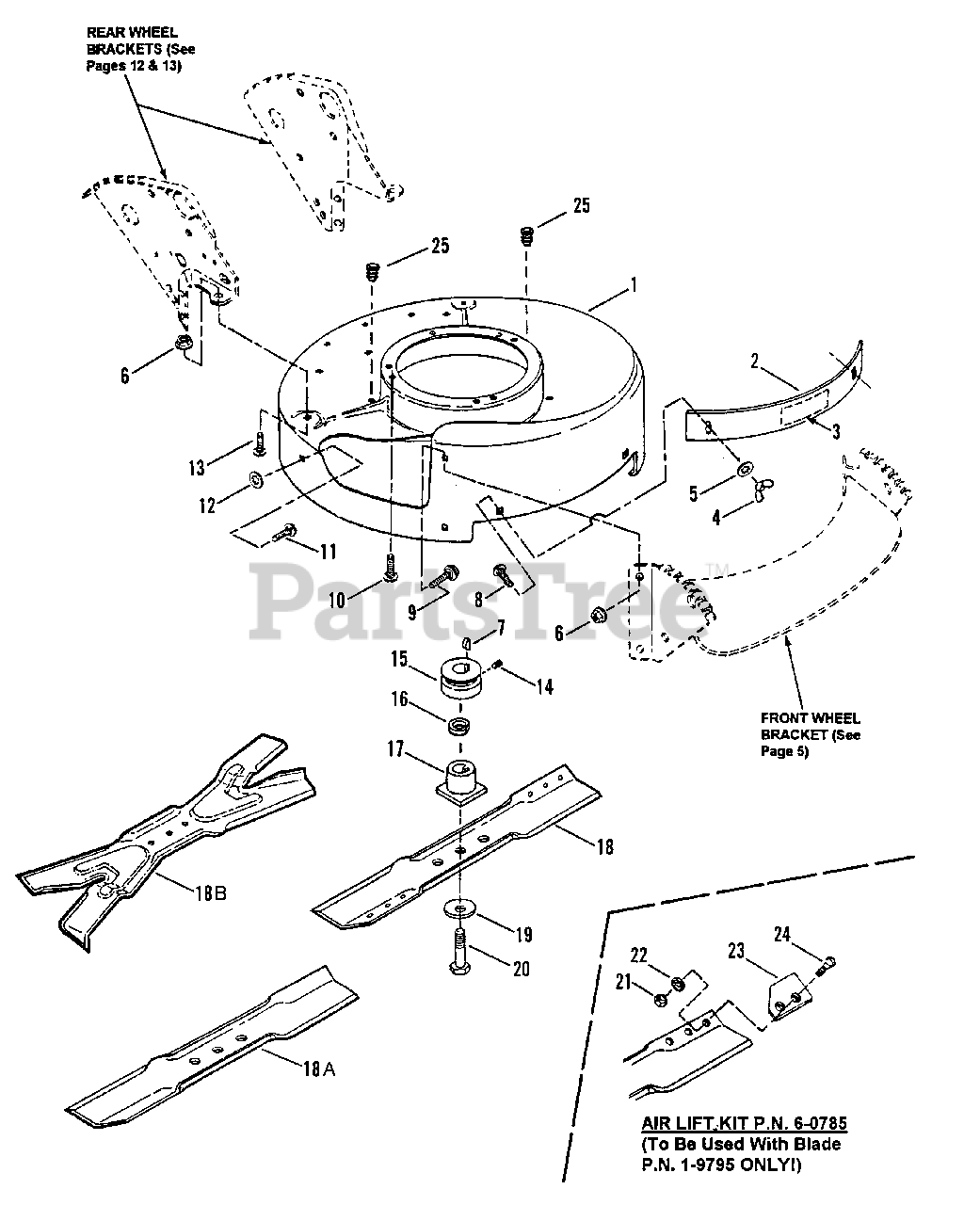

FRP 216012E (82401) - Snapper 21" Walk-Behind Mower, 6hp Cutting Deck, Blade Parts Diagram

21" Walk-Behind Mower, 6hp

Cutting Deck, Blade Parts Diagram

  • Title

1

Snapper 7058540

DECK, Mower
(Superseded to 7600034DYP)

Note: (Includes Painted Deck & Decal)

$359.99

$

Usually ships in 2-12 days

0

2

Snapper 7043851

BAFFLE, Front

$

$

Not available

3

Snapper 7029193

DECAL, Front Baffle
(Superseded to 7029193YP)

$7.99

$

Usually ships in 2-12 days

0

4

Snapper 7024085

WING-NUT, 5/16-18 Nyloc
(Superseded to 704320)

$4.99

$

In Stock, Qty 12

0

5

Snapper 7090189

WASHER, 5/16 Internal/External Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7091214

KEY, Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 7090316

BOLT, 5/16-18 x 1-3/4" Carriage, Grade 5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Neck Carriage, Grade 5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping (Engine Mounting)
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

12

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 7

0

14

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

15

Snapper 7015780

PULLEY, Engine (25mm I.D. x 2-1/8" O.D.)
(Superseded to 7015780YP)

$30.99

$

Usually ships in 2-12 days

0

16

Snapper 7029000

SPACER, Blade Hub
(Superseded to 7029000YP)

$15.99

$

Usually ships in 2-12 days

0

17

Snapper 7015626

HUB, Blade Drive
(Superseded to 7015626YP)

$15.99

$

In Stock, only 1 left!

0

18

Snapper 7019795

BLADE, Cutter
(Superseded to 7019795BZYP)

$28.99

$

In Stock, Qty 20+

0

18A

Snapper 7017168

BLADE, Cutter (Mulching)
(Superseded to 7041939BZYP)

$29.99

$

In Stock, only 1 left!

0

18B

Snapper 7026407

BLADE, Cutter (Quad Edge - Ninja)
(Superseded to 7026407AYP)

$54.99

$

Usually ships in 2-12 days

0

19

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

20

Snapper 7090167

SCREW, 3/8-24 x 2 Hex Head Cap, Grade 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7091297

NUT, 5/16-24 Hex, Grade 5
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7032558

LIFT, Air
(Superseded to 7032558YP)

$

$

Not available

24

Snapper 7090228

SCREW, 5/16-24 x 21/32" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

25

Snapper 7046780

PLUG, Hole
(Superseded to 7046780SM)

$4.99

$

Usually ships in 2-12 days

0

26

Snapper 7060785

AIR LIFT KIT
(Superseded to 7060785YP)

Note: To Be Used With Blade P.N. 1-9795 ONLY!

$

$

Not available
