FRCK724 - Exmark Ultra Vac QDS Bagger for 72" Front Runner Mower (SN: 720000 - 789999) (2008) Mounting Components Parts Diagram

Ultra Vac QDS Bagger for 72" Front Runner Mower

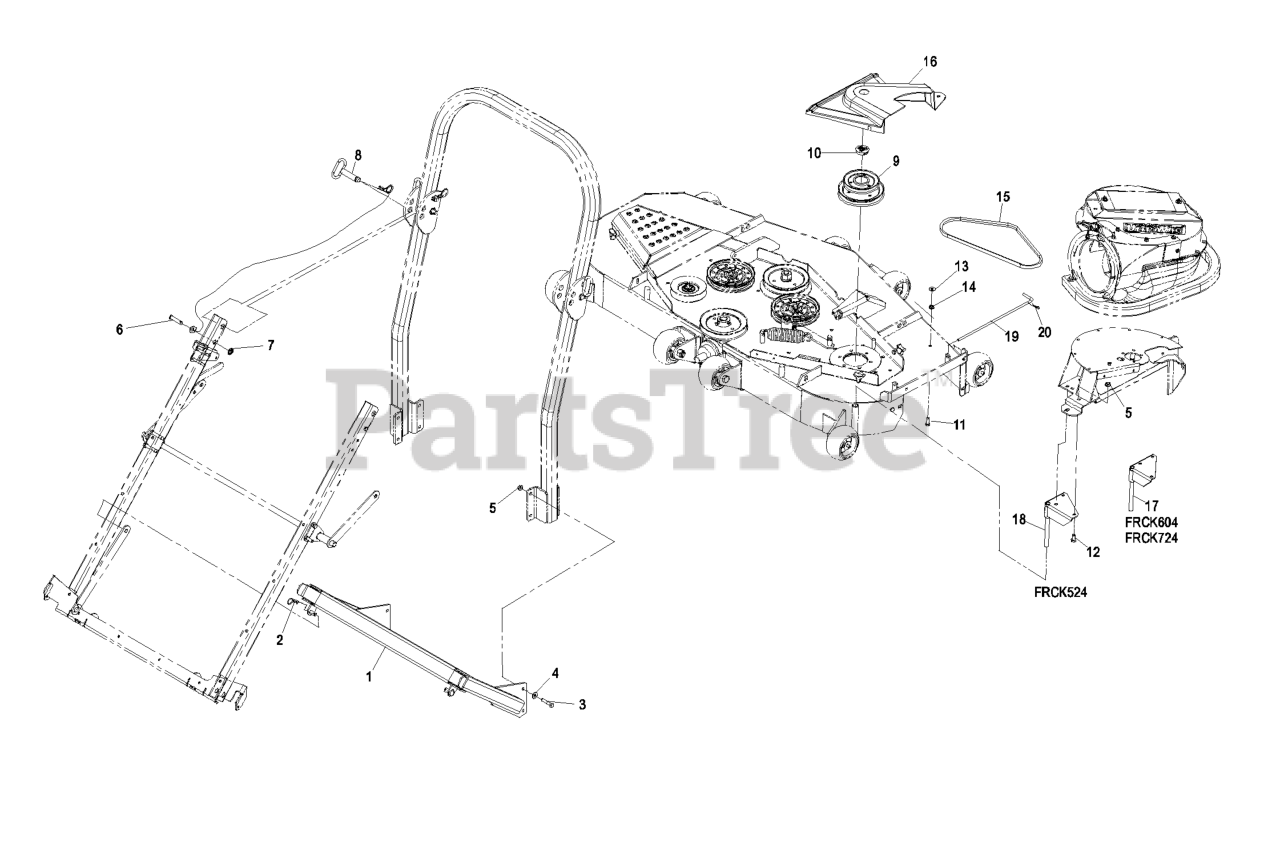

Mounting Components Parts Diagram

  • Title

1

Exmark 109-4748-03

DISCONTINUED

$

$

Not available

2

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

3

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

6

Exmark 283-5

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 1-323142

NUT-PUSH

$2.99

$

In Stock, only 2 left!

0

8

Exmark 103-4553

PIN-FOLD, ROPS

$79.99

$

In Stock, only 2 left!

0

9

Exmark 103-2797

JACKSHAFT, LZUV52

$241.99

$

In Stock, only 2 left!

0

Exmark 103-2792

JACKSHAFT, LZUV60

$239.99

$

Usually ships in 3-6 days

0

Exmark 103-2796

JACKSHAFT, LZUV72

$318.99

$

Usually ships in 3-6 days

0

10

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

13

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-4948

BELT,4L SECTION

$

$

Not available

Exmark 103-0866

BELT, BLOWER DRIVE 60
(Superseded to 103-0866-SL)

$35.99

$

In Stock, Qty 5

0

Exmark 103-0867

BELT, BLOWER DRIVE 72
(Superseded to 103-0867-SL)

$33.99

$

In Stock, only 1 left!

0

16

Exmark 109-4846

COVER,FR UV BELT 52

$

$

Not available

Exmark 109-4847

COVER,FR UV BELT 60

$128.99

$

Usually ships in 3-6 days

0

Exmark 109-4848

COVER,FR UV BELT 72

$310.99

$

Usually ships in 3-6 days

0

17

Exmark 103-0445-03

PIN-MOUNT

$72.99

$

In Stock, only 2 left!

0

18

Exmark 109-4841-03

WLD,MOUNT PIN FR 52

$

$

Not available

19

Exmark 109-3458

PIN,CHUTE PIVOT

$17.99

$

Usually ships in 3-6 days

0

20

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0
