FRCK724 - Exmark Ultra Vac QDS Bagger for 72" Front Runner Mower (SN: 720000 - 789999) (2008) Hopper and Frame Parts Diagram

Ultra Vac QDS Bagger for 72" Front Runner Mower

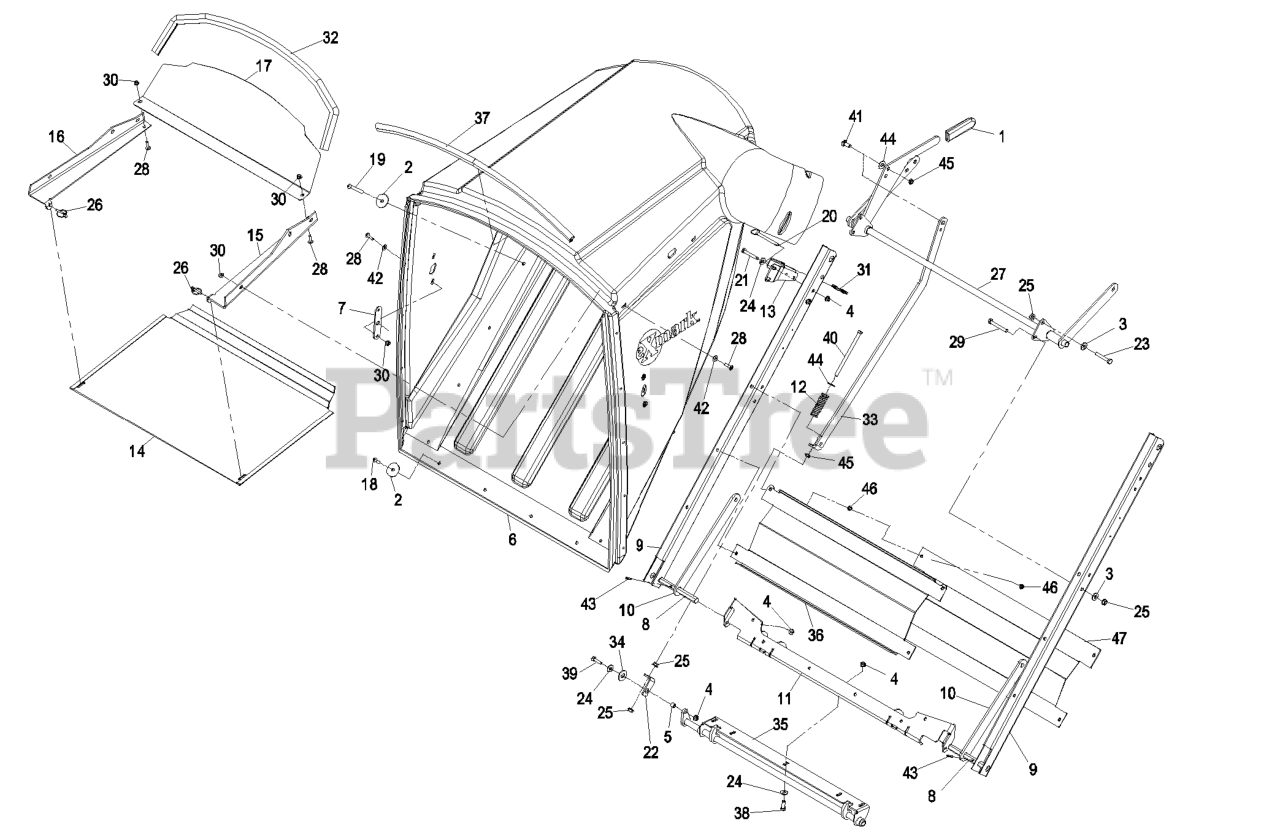

Hopper and Frame Parts Diagram

  • Title

1

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 3 left!

0

2

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

0

6

Exmark 109-4385

HOPPER,FR 12 BUSHEL

$1809.99

$

Usually ships in 3-6 days

0

7

Exmark 109-4664-03

PLATE,FR LWR PVT BACKING

$

$

Not available

8

Exmark 109-6451

SHAFT,.625 HEX

$64.99

$

Usually ships in 3-6 days

0

9

Exmark 109-6477-03

DISCONTINUED

$

$

Not available

10

Exmark 109-4738-03

LINK,FR HOPPER PIVOT

$

$

Not available

11

Exmark 109-6476-03

DISCONTINUED

$

$

Not available

12

Exmark 109-2230

SPRING-COMPRESSION

$8.99

$

Usually ships in 3-6 days

0

13

Exmark 109-4768-03

BRACKET,FR HNDL STORAGE

$

$

Not available

14

Exmark 109-4805-03

SCREEN,FR HOPPER

$

$

Not available

15

Exmark 109-4806-03

DISCONTINUED

$

$

Not available

16

Exmark 109-4807-03

ANGLE,LH FR SCRN SUPT

$

$

Not available

17

Exmark 109-4808-03

BAFFLE,FR HOPPER SCREEN

$

$

Not available

18

Exmark 109-4872

SCREW-HSBH

$1.49

$

In Stock, only 1 left!

0

19

Exmark 109-4873

SCREW,HSPH

$

$

Not available

20

Exmark 105-1647

PIN-HITCH, COTTERLESS

$20.99

$

Usually ships in 3-6 days

0

21

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

22

Exmark 109-0130

LINK,BRAKE (PLATED)

$

$

Not available

23

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3290-495

PIN-KLIK

$6.99

$

In Stock, only 4 left!

0

27

Exmark 109-4667-03

DISCONTINUED

$

$

Not available

28

Exmark 32105-32

SCREW-TTH

$1.49

$

Usually ships in 3-6 days

0

29

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

30

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Exmark 105-7699

STRIP-SEAL

$9.99

$

In Stock, Qty 20+

0

32

Exmark 109-5852

SEAL,TRIM 38.00

$47.99

$

Usually ships in 3-6 days

0

33

Exmark 109-5545-03

LINK,FRUVD LATCH

$

$

Not available

34

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Exmark 109-5552-03

WLD,FRUVD LATCH

$312.99

$

Usually ships in 3-6 days

0

36

Exmark 109-6733-03

SHIELD,FRUVD INNER HEAT

$

$

Not available

37

Exmark 109-5854

SEAL,SIDE TRIM 34.50 X .1

$

$

Not available

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

40

Exmark 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

41

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

42

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

43

Exmark 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

44

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

45

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

46

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

47

Exmark 109-6734-03

SHIELD,FRUVD OUTER HEAT

$105.99

$

Usually ships in 3-6 days

0

48

Exmark 109-5546

Asm, Latch Link

Note: Assembly includes items #12, #22, #25, #33, #40, #44, & #45

$

$

Currently unavailable
