FRCK724 - Exmark Ultra Vac QDS Bagger for 72" Front Runner Mower (SN: 720000 - 789999) (2008) Blower Assembly Parts Diagram

Ultra Vac QDS Bagger for 72" Front Runner Mower

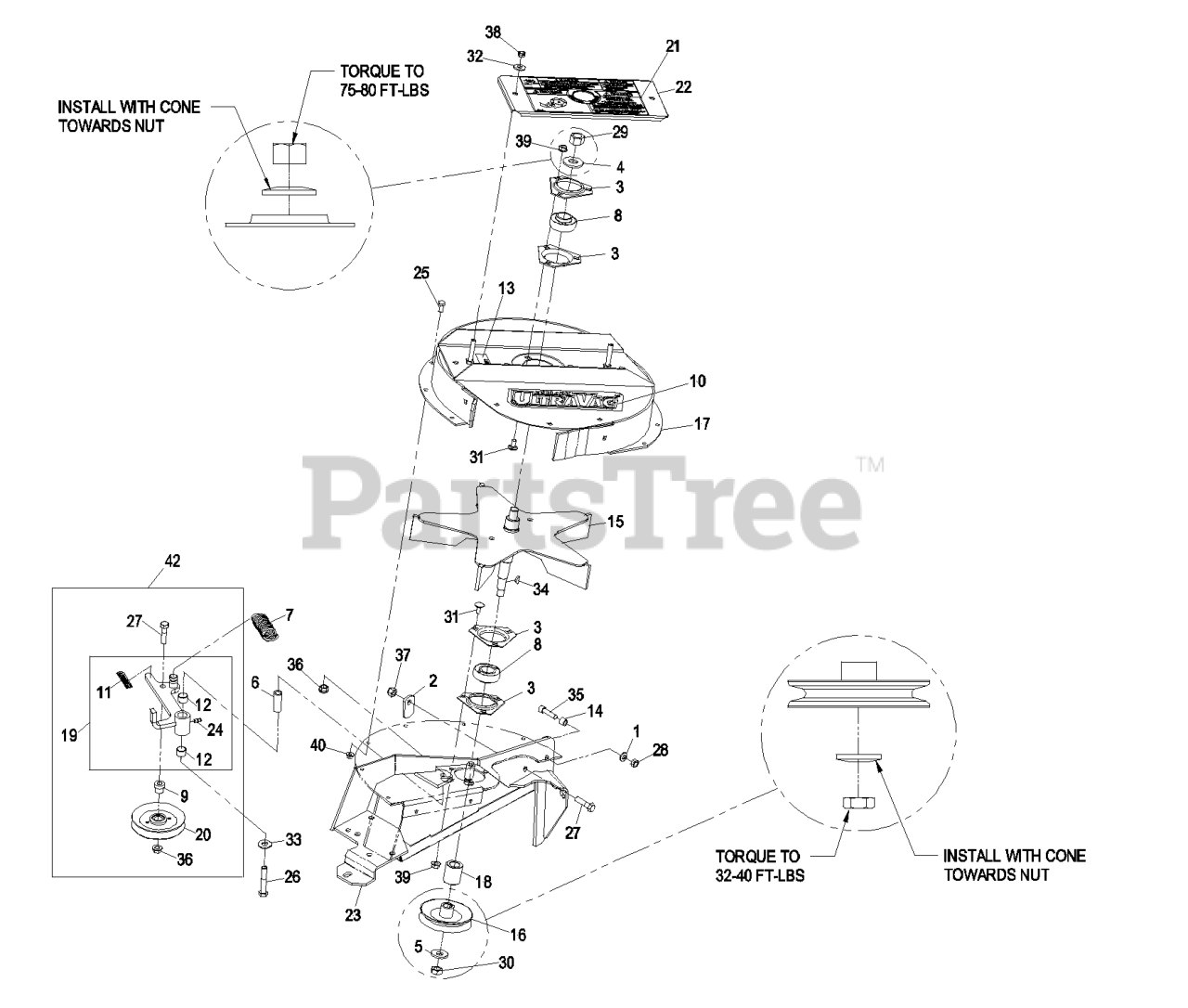

Blower Assembly Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

2

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

0

3

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

5

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

6

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

7

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

8

Exmark 1-653346

BEARING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.

$71.99

$

In Stock, Qty 20+

0

9

Exmark 1-653367

HUB,SPACER

$23.99

$

Usually ships in 3-6 days

0

10

Exmark 1-653557

DECAL, ULTRAVAC

$17.99

$

Usually ships in 3-6 days

0

11

Exmark 1-653558

DECAL-WARNING

$7.49

$

In Stock, only 1 left!

0

12

Exmark 1-653600

BUSHING

$20.99

$

In Stock, only 1 left!

0

13

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

14

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

0

15

Exmark 103-0455

IMPELLER

$441.99

$

Usually ships in 3-6 days

0

16

Exmark 103-0456

SHEAVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.

$53.99

$

In Stock, only 3 left!

0

17

Exmark 103-3593

ASM, UPPER HSG

$547.99

$

Usually ships in 3-6 days

0

18

Exmark 103-0460

SPACER

$20.99

$

In Stock, only 1 left!

0

19

Exmark 103-0448

ASM, IDLER ARM - SERVICE

$154.99

$

In Stock, only 1 left!

0

20

Exmark 103-0483

IDLER

$53.99

$

In Stock, only 4 left!

0

21

Exmark 109-5890

DECAL-WARNING, BLOWER

$77.99

$

Usually ships in 3-6 days

0

22

Exmark 103-3583

ASM, BEARING COVER

$98.99

$

Usually ships in 3-6 days

0

23

Exmark 109-1133-03

WLD,BLOWER MOUNT

$644.99

$

Usually ships in 3-6 days

0

24

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

25

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

29

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

30

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

31

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

32

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

34

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

35

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

36

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

37

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

38

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

39

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

40

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

41

Exmark 109-5278

ASM,BLOWER FRUVD

$2692.99

$

Usually ships in 3-6 days

0

42

Exmark 103-0459

Asm, Idler

$

$

Currently unavailable
