FRC800 K1 A1 (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1300001 - FAHJ-1309999) MUFFLER (FRC800K1) Parts Diagram

20" Tiller, Made in Japan

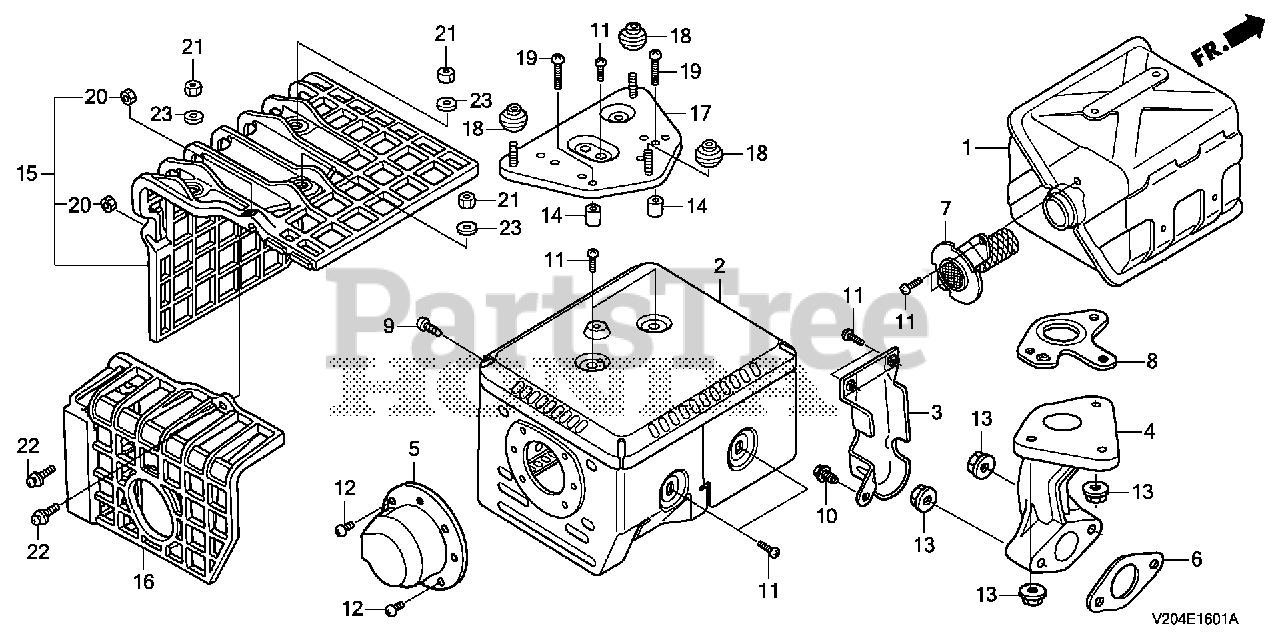

MUFFLER (FRC800K1) Parts Diagram

  • Title

1

Honda 18310-Z5K-010

SEE PART DETAILS - PRI; MUFFLER

$33.99

$

Usually ships in 3-6 days

0

2

Honda 18320-Z5K-000

PROTECTOR, MUFFLER

$20.99

$

Usually ships in 3-6 days

0

3

Honda 18323-ZE2-W00

PROTECTOR, EX. PIPE

$25.99

$

Usually ships in 3-6 days

0

4

Honda 18331-Z5T-000

PIPE, EX.

$27.99

$

In Stock, only 1 left!

0

5

Honda 18331-ZE3-811

SEE PART DETAILS - PRI; CAP, MUFFLER

$11.99

$

In Stock, only 1 left!

0

6

Honda 18333-Z1C-801

GASKET, EX. PIPE

$3.49

$

In Stock, only 1 left!

0

7

Honda 18350-Z5T-800

ARRESTER, SPARK

$19.99

$

Usually ships in 3-6 days

0

8

Honda 18381-ZE2-W10

SEE PART DETAILS - PRI; GASKET, MUFFLER (ARRESTER) (Honda Code 3678802).

Note: (Optional).

$12.99

$

In Stock, Qty 7

0

8

Honda 18381-Z8S-801

GASKET, MUFFLER (ARRESTER)(THAI LEAKLESS)

$3.49

$

In Stock, only 1 left!

0

9

Honda 90006-ZE2-000

SCREW, TAPPING (6X10)

$1.99

$

In Stock, Qty 5

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

11

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

12

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

$1.49

$

In Stock, Qty 11

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

14

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING (Honda Code 2577419).

$4.99

$

Usually ships in 3-6 days

0

15

Honda 18433-Z8V-A40

COVER, MUFFLER

$94.99

$

Usually ships in 3-6 days

0

16

Honda 18434-ZE3-H31

COVER, RR.

$91.99

$

Usually ships in 3-6 days

0

17

Honda 18436-Z1D-H70

BASE COMP

$5.99

$

Usually ships in 3-6 days

0

18

Honda 18466-ZH8-W40

SPACER, MUFFLER COVER (Honda Code 4787198).

$8.49

$

Usually ships in 3-6 days

0

19

Honda 90050-ZH8-W40

SCREW, TAPPING (5X25) (Honda Code 4787206).

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90301-782-000

NUT, U (6MM)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90302-KF9-900

NUT, HEX. (5MM) (Honda Code 4787214).

$4.49

$

Usually ships in 3-6 days

0

22

Honda 93891-06020-07

SCREW-WASHER (6X20) (Honda Code 1188614).

$1.99

$

In Stock, only 4 left!

0

23

Honda 94103-05700

WASHER, PLAIN (5MM) (Honda Code 0692491).

$1.49

$

In Stock, only 4 left!

0
