FRC800 K1 A1/A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1310001 - FAHJ-9999999) WHEEL SHAFT Parts Diagram

20" Tiller, Made in Japan

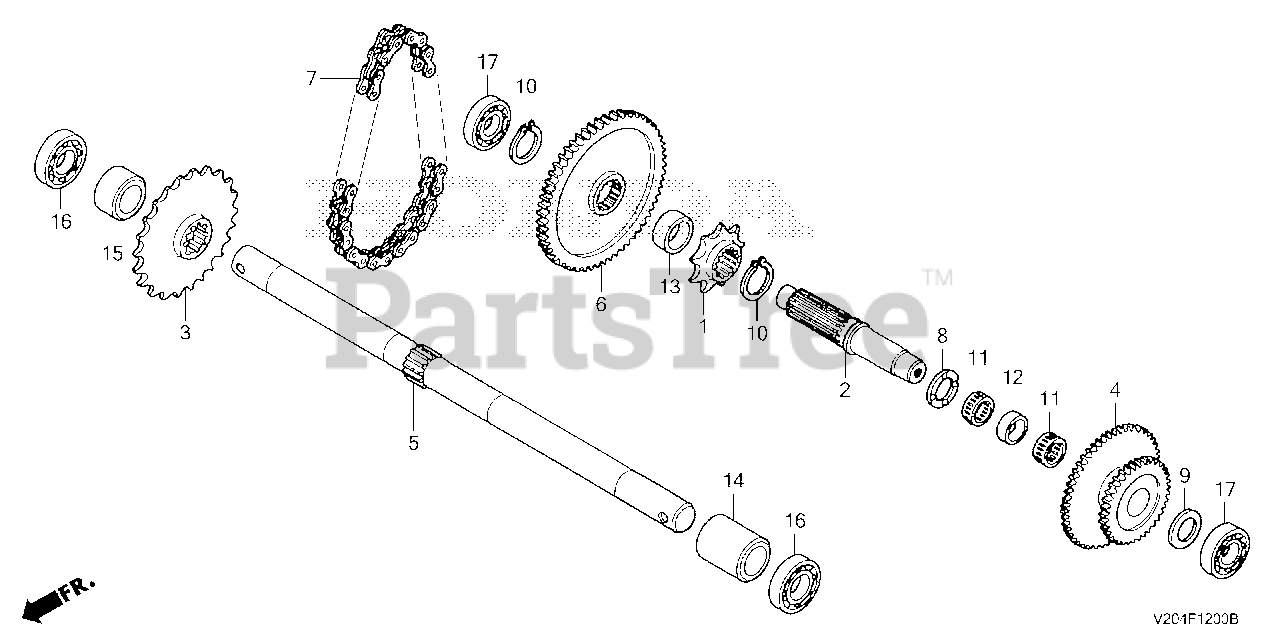

WHEEL SHAFT Parts Diagram

  • Title

1

Honda 23121-790-000

SPROCKET, DRIVE (9T)

$100.99

$

Usually ships in 3-6 days

0

2

Honda 23251-V20-003

SHAFT, FINAL

$183.99

$

Usually ships in 3-6 days

0

3

Honda 23281-V20-003

SPROCKET, DRIVEN (23T)

$179.99

$

Usually ships in 3-6 days

0

4

Honda 23350-V20-003

GEAR, FINAL (35T/53T)

$260.99

$

Usually ships in 3-6 days

0

5

Honda 23371-V20-003

SHAFT, WHEEL

$229.99

$

Usually ships in 3-6 days

0

6

Honda 23442-V20-003

GEAR, FINAL DRIVEN (59T)

$144.99

$

Usually ships in 3-6 days

0

7

Honda 23861-V20-003

CHAIN, FINAL (DID520HK-32L)

$61.99

$

Usually ships in 3-6 days

0

8

Honda 90501-790-000

WASHER, THRUST (20MM)

$11.99

$

Usually ships in 3-6 days

0

9

Honda 90502-790-000

WASHER, THRUST (17MM)

$10.99

$

Usually ships in 3-6 days

0

10

Honda 90661-SK7-000

CIRCLIP (OUTER) (22MM) (NOT AVAILABLE)

$9.49

$

Usually ships in 3-6 days

0

11

Honda 91051-V20-003

BEARING, NEEDLE (20X24X13)

$26.99

$

Usually ships in 3-6 days

0

12

Honda 91553-V20-003

COLLAR, FINAL GEAR

$14.99

$

Usually ships in 3-6 days

0

13

Honda 91554-V20-003

COLLAR, SPROCKET

$10.99

$

Usually ships in 3-6 days

0

14

Honda 91555-V20-003

COLLAR, WHEEL SHAFT (A)

$33.99

$

Usually ships in 3-6 days

0

15

Honda 91556-V20-003

COLLAR, WHEEL SHAFT (B)

$24.99

$

Usually ships in 3-6 days

0

16

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$26.99

$

In Stock, Qty 10

0

17

Honda 96100-63030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6303)

$20.99

$

Usually ships in 3-6 days

0
