FRC800 K1 A1/A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1310001 - FAHJ-9999999) CHANGE LEVER Parts Diagram

20" Tiller, Made in Japan

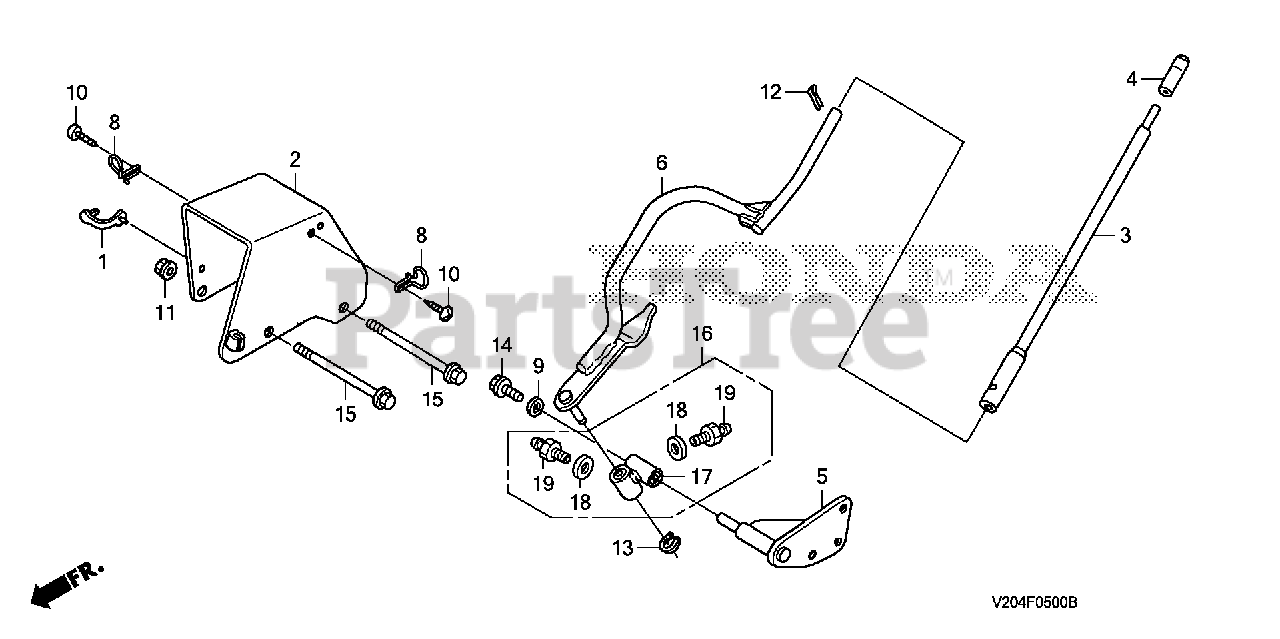

CHANGE LEVER Parts Diagram

  • Title

2

Honda 21311-V20-A41ZA

COVER, CHANGE *R280* (POWER RED)

$91.99

$

Usually ships in 3-6 days

0

3

Honda 24411-V20-003ZA

LEVER, CHANGE *NH105* (MAT BLACK)

$74.99

$

Usually ships in 3-6 days

0

4

Honda 24415-790-003

GRIP, CHANGE LEVER

$7.49

$

Usually ships in 3-6 days

0

5

Honda 24420-V20-003

SHAFT, CHANGE LEVER

$57.99

$

Usually ships in 3-6 days

0

6

Honda 24450-V20-003ZA

LEVER, SELECT *NH105* (MAT BLACK)

$176.99

$

Usually ships in 3-6 days

0

8

Honda 50271-735-010

GUIDE, CABLE (LOWER)

$4.99

$

Usually ships in 3-6 days

0

9

Honda 90501-V20-003

WASHER, PLAIN (8MM)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90104-V20-003

SCREW, TAPPING (5X12)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

$3.99

$

In Stock, Qty 20+

0

12

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

In Stock, Qty 20+

0

13

Honda 94510-12000

CIRCLIP (OUTER) (12MM) Use up to Engine SN 2056819.

$2.49

$

In Stock, only 3 left!

0

14

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 3 left!

0

15

Honda 95701-10150-08

BOLT, FLANGE (10X150)

$7.49

$

In Stock, only 1 left!

0

17

Honda 24461-V20-013

HOLDER, SELECT LEVER

$46.99

$

In Stock, only 1 left!

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 96201-10000

NIPPLE, GREASE (A.T6) (M6X1.0)

$3.49

$

Usually ships in 3-6 days

0
