FRC800 K1 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1100001 - FAHJ-9999999) TOOLS Parts Diagram

20" Tiller, Made in Japan

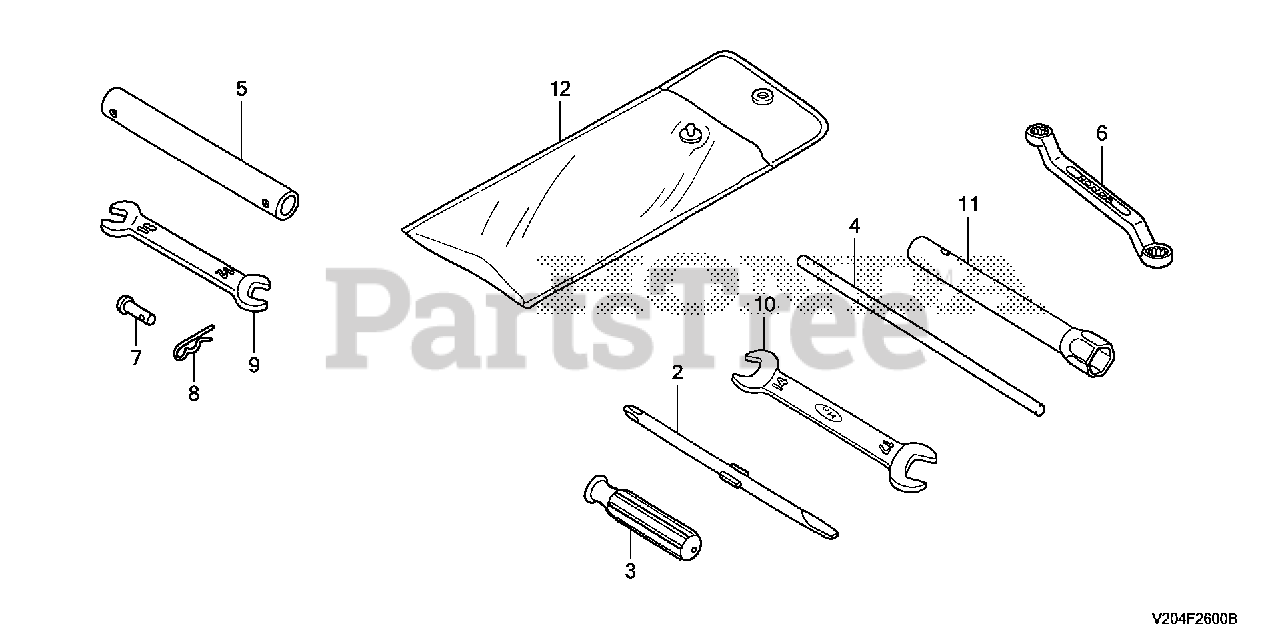

TOOLS Parts Diagram

  • Title

1

Honda 89000-734-J60

TOOL KIT (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

2

Honda 89102-538-000

SCREWDRIVER (NO.2 PHILLIPS -)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

3

Honda 89103-538-000

GRIP

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

4

Honda 89219-805-000

HANDLE, BOX WRENCH

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

5

Honda 89220-ZE2-000

PIPE, BOX WRENCH EXTENSION

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

6

Honda 89227-461-000

WRENCH, EYE (10X12)

Note: (Optional).

$33.99

$

Usually ships in 3-6 days

0

7

Honda 90755-758-L00

PIN, ROLLER ARM (8X22)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

8

Honda 94251-08000

PIN, LOCK (8MM)

Note: (Optional).

$1.99

$

In Stock, Qty 13

0

9

Honda 99001-10120

SPANNER (10X12)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

10

Honda 99001-14170

SPANNER (14X17)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 99004-21003

WRENCH, BOX (P21)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

12

Honda 99008-02300

BAG, TOOL (230MM)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0
