FRC800 K1 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1100001 - FAHJ-9999999) RECOIL STARTER Parts Diagram

20" Tiller, Made in Japan

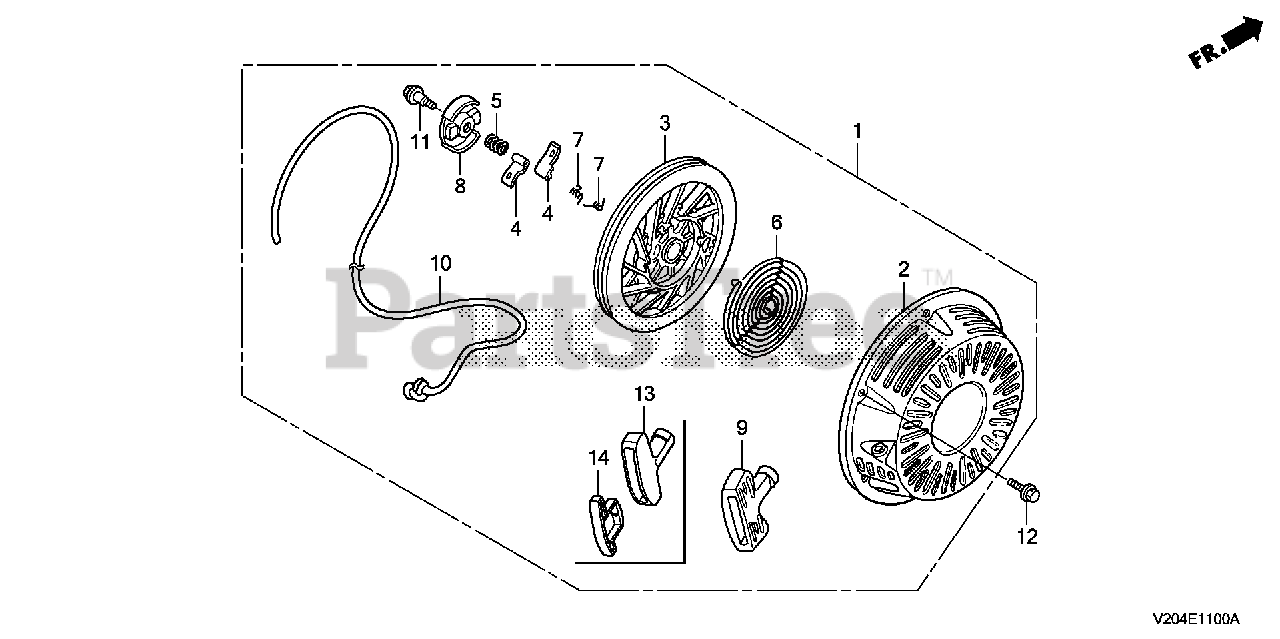

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z5K-305ZA

STARTER ASSY., RECOIL *R280* (COO)(FOR U.S.A.) (POWER RED)

$43.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-W01ZN

CASE, RECOIL STARTER *R280* (POWER RED)

$133.99

$

In Stock, only 1 left!

0

3

Honda 28421-ZE2-W01

PULLEY, RECOIL STARTER

$41.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

In Stock, only 2 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28462-ZE2-W11

ROPE, RECOIL STARTER

$10.99

$

In Stock, only 2 left!

0

11

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, Qty 10

0

12

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

Note: Use up to Engine SN 1012339.

$1.99

$

In Stock, Qty 11

0

12

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: Use from Engine SN 1012340.

$1.99

$

In Stock, Qty 13

0

13

Honda 28461-Z5T-305

GRIP, STARTER (COO)(FOR U.S.A.)
(Superseded to 28461-Z5T-003)

$10.99

$

In Stock, Qty 14

0

14

Honda 28463-Z5T-013

GRIP, REINFORCEMENT

$3.49

$

In Stock, Qty 20+

0
